Double Flange Wheels

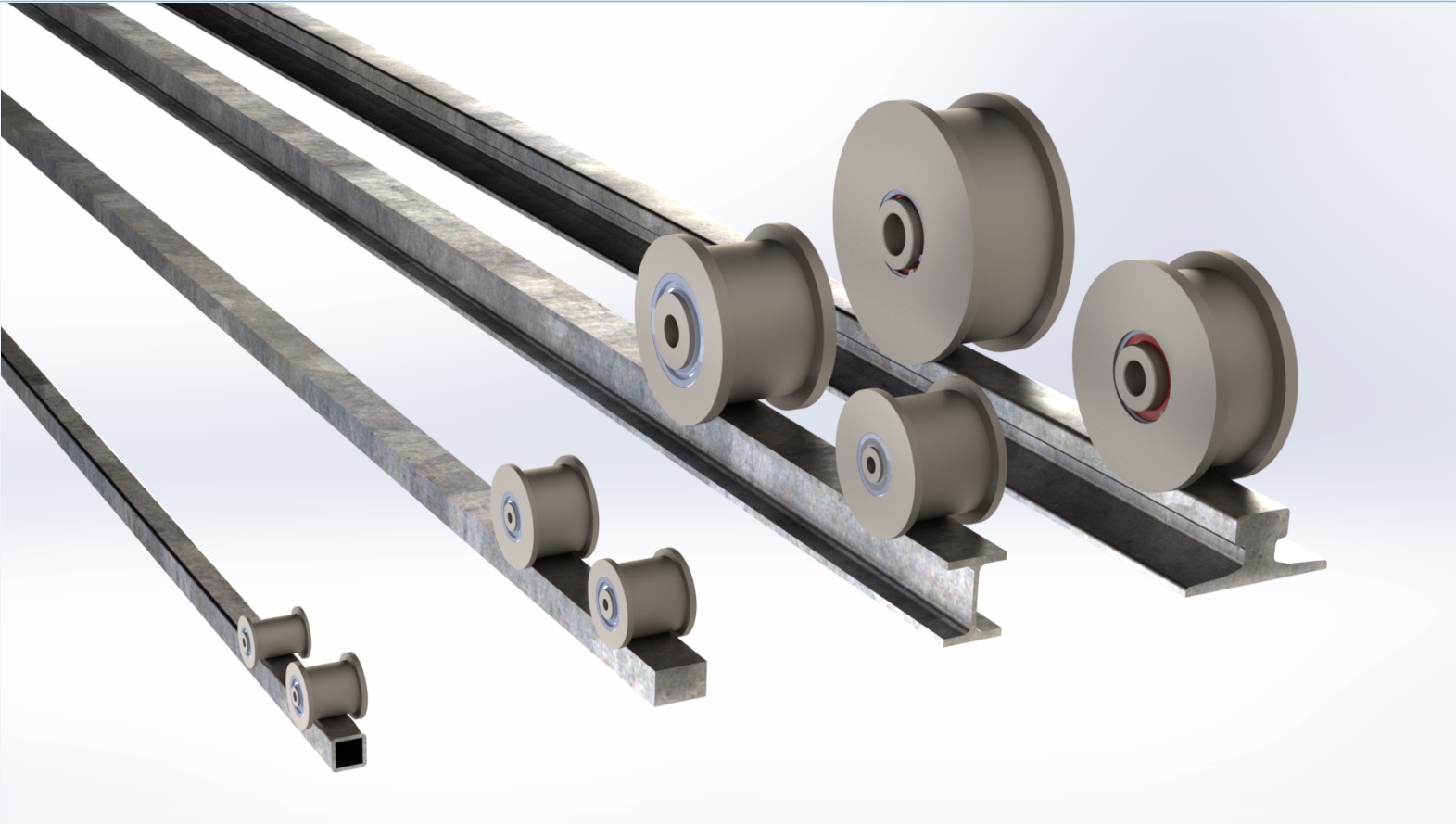

Double flange wheels are the workhorse of heavy-duty material handling and crane applications.
Double flange wheels are the workhorse of heavy-duty material handling and crane applications. This family of wheel can be incorporated into bridge cranes, manufacturing wagons, mine carts any application requiring a load bearing wheel capable of resisting a lateral force in both directions, and staying the course along a straight length of track. Our standard double flange wheel is CNC machine turned from solid billet forgings. This creates the toughest, most durable wheel, with no risk of brittleness which is common in comparable cast iron wheels.
Each standard configuration is supplied with reducer bushings, which allows a standard commercial bolt to be used as the wheel axle (securing the wheel between 2 side plates). Alternatively, the reducers can be removed allowing the wheel to be mounted to a machined axle which may better suit your fitment/project requirements.
Not sure what you need? Call our engineering team now on 1300 474 246.

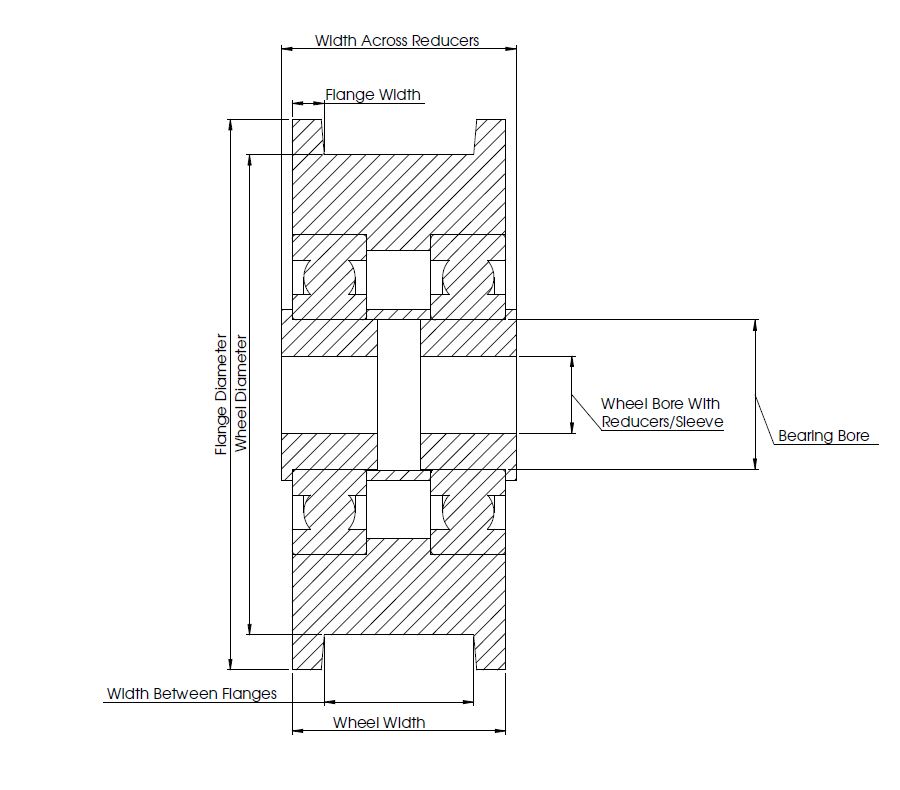

Standard Dimensions
| Part Number | Wheel Diameter (mm) | Flange Diameter (mm) | Flange Width (mm) | Width Between Flanges (mm) | Wheel Width (mm) | Bearing Bore | Wheel Bore w/ Reducers/Sleeve | Wheel Width Across Reducers (mm) | Wheel Load Capacity (kg) | PDF Download | CAD Drawing Download |
| DFST50X20 | 50 | 68 | 5 | 20 | 30 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 36 | 350 | Download | Download |
| DFST50X40 | 50 | 68 | 5 | 40 | 50 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 500 | Download | Download |
| DFST50X65 | 50 | 68 | 5 | 65 | 75 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 500 | Download | Download |
| DFST65X34 | 65 | 83 | 8 | 34 | 50 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 800 | Download | Download |
| DFST65X59 | 65 | 83 | 8 | 59 | 75 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 1000 | Download | Download |
| DFST65X84 | 65 | 83 | 8 | 84 | 100 | 20MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 106 | 1200 | Download | Download |
| DFST75X34 | 75 | 93 | 8 | 34 | 50 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 56 | 1200 | Download | Download |
| DFST75X59 | 75 | 93 | 8 | 59 | 75 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 81 | 1500 | Download | Download |
| DFST75X84 | 75 | 93 | 8 | 84 | 100 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 106 | 1500 | Download | Download |
| DFST75X84 | 75 | 93 | 8 | 84 | 100 | 25MM BB | 13MM ID (TO SUIT M12 OR 1/2" BOLT) | 106 | 1500 | Download | Download |
| DFST100X55 | 100 | 119 | 10 | 55 | 75 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 81 | 1800 | Download | Download |
| DFST100X80 | 100 | 119 | 10 | 80 | 100 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 106 | 2000 | Download | Download |
| DFST100X105 | 100 | 119 | 10 | 105 | 125 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 131 | 2000 | Download | Download |
| DFST100X130 | 100 | 119 | 10 | 130 | 150 | 30M BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 156 | 2000 | Download | Download |
| DFST125X55 | 125 | 149 | 10 | 55 | 75 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 81 | 1800 | Download | Download |
| DFST125X80 | 125 | 149 | 10 | 80 | 100 | 30MM BB | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 106 | 2000 | Download | Download |
| DFST125X105 | 125 | 149 | 10 | 105 | 125 | 30 DOUBLE ROW ANGULAR CONTACT BBs | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 131 | 2500 | Download | Download |
| DFST125X130 | 125 | 149 | 10 | 130 | 150 | 30 DOUBLE ROW ANGULAR CONTACT BBs | 16.2MM ID (TO SUIT M16 OR 5/8" BOLT) | 156 | 2500 | Download | Download |
| DFST150X52 | 150 | 178 | 11.5 | 52 | 75 | 40MM BB | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 85 | 2750 | Download | Download |
| DFST150X76 | 150 | 178 | 12 | 76 | 100 | 40MM BB | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 110 | 2750 | Download | Download |
| DFST150X101 | 150 | 178 | 12 | 101 | 125 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 135 | 3500 | Download | Download |
| DFST175X52 | 175 | 210 | 11.5 | 52 | 75 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 85 | 3500 | Download | Download |
| DFST175X76 | 175 | 210 | 12 | 76 | 100 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 110 | 3750 | Download | Download |
| DFST175X101 | 175 | 210 | 12 | 101 | 125 | 40 DOUBLE ROW ANGULAR CONTACT BB'S | 20.2MM ID (TO SUIT M20 OR 3/4" BOLT) | 135 | 4000 | Download | Download |
| DFST175X120 | 175 | 210 | 15 | 120 | 150 | 40 DOUBLE ROW ANGULAR CONTACT BBs | 24.2MM ID (TO SUIT M24 BOLT) | 160 | 4000 | Download | Download |
| DFST200X45 | 200 | 237 | 15 | 45 | 75 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 85 | 4500 | Download | Download |
| DFST200X70 | 200 | 237 | 15 | 70 | 100 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 110 | 5000 | Download | Download |
| DFST200X95 | 200 | 237 | 15 | 95 | 125 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 135 | 5500 | Download | Download |
| DFST200X120 | 200 | 237 | 15 | 120 | 150 | 50MM BB | 30.2MM ID (TO SUIT 30MM BOLT) | 160 | 5250 | Download | Download |
| DFST225X70 | 225 | 258 | 15 | 70 | 100 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 110 | 5500 | Download | Download |
| DFST225X120 | 225 | 258 | 15 | 120 | 150 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 160 | 6000 | Download | Download |
| DFST225X135 | 225 | 268 | 20 | 135 | 175 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 185 | 6500 | Download | Download |
| DFST225X160 | 225 | 268 | 20 | 160 | 200 | 70MM BB | 36.2MM ID (TO SUIT M36 BOLT) | 210 | 7500 | Download | Download |
| DFST250X85 | 250 | 288 | 20 | 85 | 125 | 80MM BB | 42.2MM ID (TO SUIT M42 BOLT) | 145 | 7750 | Download | Download |
| DFST250X110 | 250 | 288 | 20 | 110 | 150 | 80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT | 42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC | 170 | 1200/8500/15000 | Download | Download |
| DFST250X150 | 250 | 298 | 25 | 150 | 200 | 80MM BB/100MM BB/ 80MM TAPERED ROLLERS OR SPHERICAL ROLLER + HT | 42.2MM ID (TO SUIT M42 BOLT)/M52 PRECISION BOLT BY RWC | 220 | 1350/9500/16500 | Download | Download |
| DFST300X75 | 300 | 348 | 25 | 75 | 125 | 100MM BB/80MM SPHERICAL ROLLER + HT | M52 PRECISION BOLT BY RWC | 160 | 10000/14000 | Download | Download |
| DFST300X100 | 300 | 348 | 25 | 100 | 150 | 100MM BB/80MM TAPERED ROLLER OR SPHERICAL ROLLER + HT | M52 PRECISION BOLT BY RWC | 175 | 1750/120000 | Download | Download |
| DFST350X75 | 350 | 398 | 25 | 75 | 125 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT | M60 PRECISION BOLT BY RWC | 160 | 1400/20000 | Download | Download |
| DFST350X100 | 350 | 398 | 25 | 100 | 150 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT | M60 PRECISION BOLT BY RWC | 175 | 1600/25000 | Download | Download |
| DFST350X150 | 350 | 398 | 25 | 150 | 200 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT | M60 PRECISION BOLT BY RWC | 227 | 18000/28000/32000 | Download | Download |
| DFST400X100 | 400 | 498 | 25 | 100 | 150 | 80MM TAPERED ROLLER BEARINGS OR SPHERICAL ROLLER / + HT/ + HIGH TENSILE HT | M70/M80 PRECISION BOLT BY RWC | 185 | 2500/30000/35000 | Download | Download |

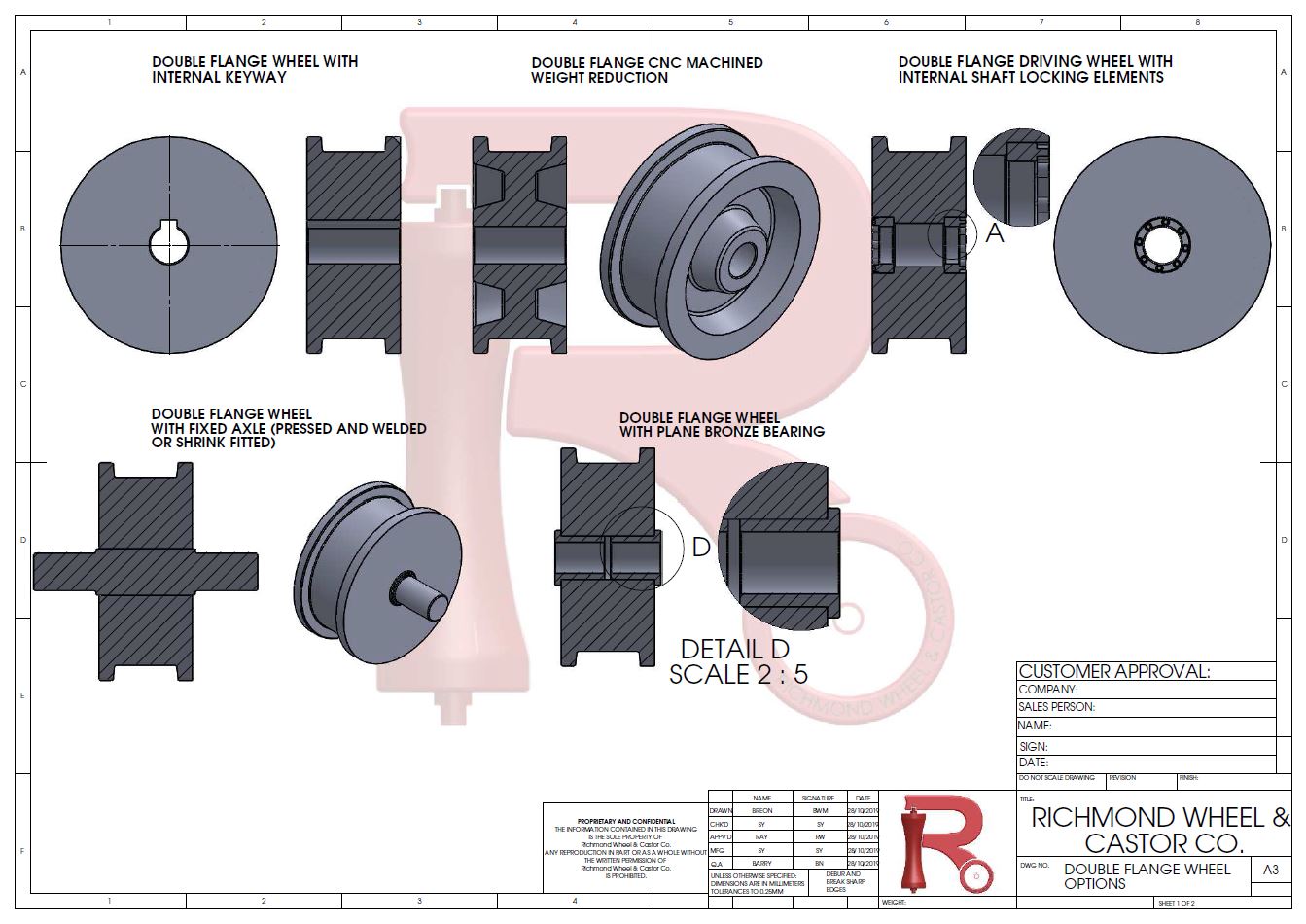

Standard Wheel Configuration Options
If our standard wheel configuration/capacity options don’t quite meet your project requirements, below are some examples of typical double flanged wheel configurations we can manufacture.
