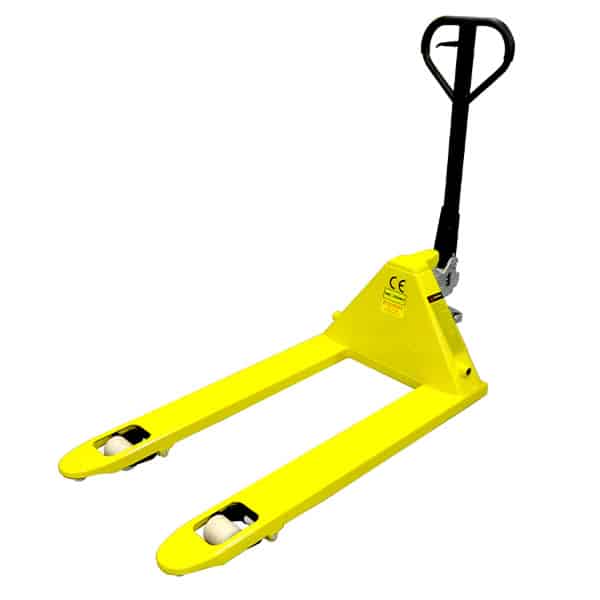

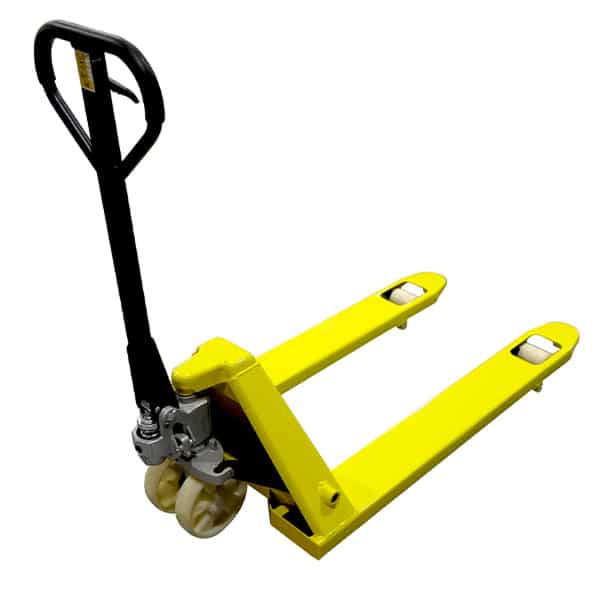

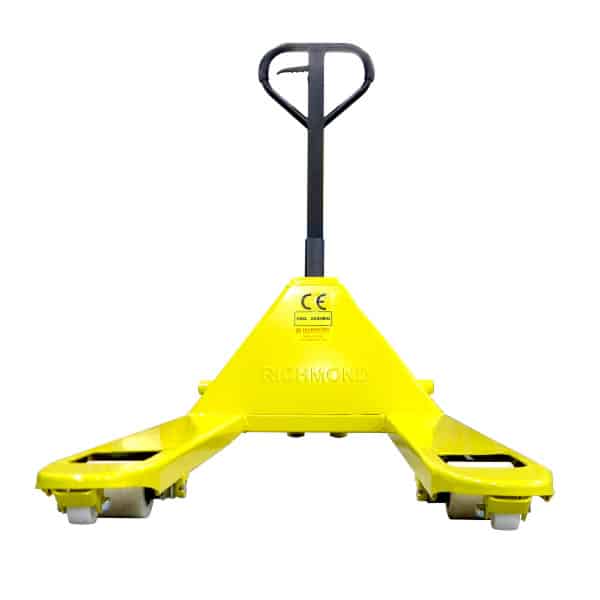

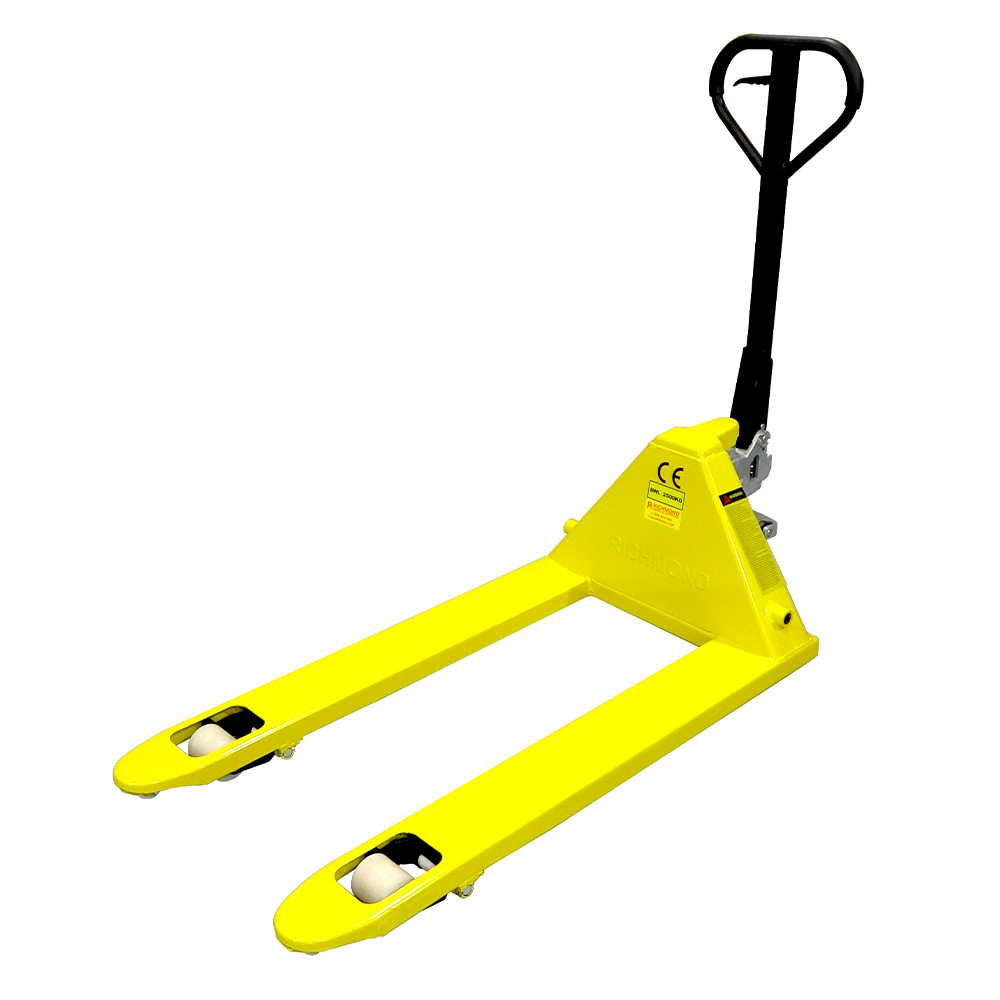

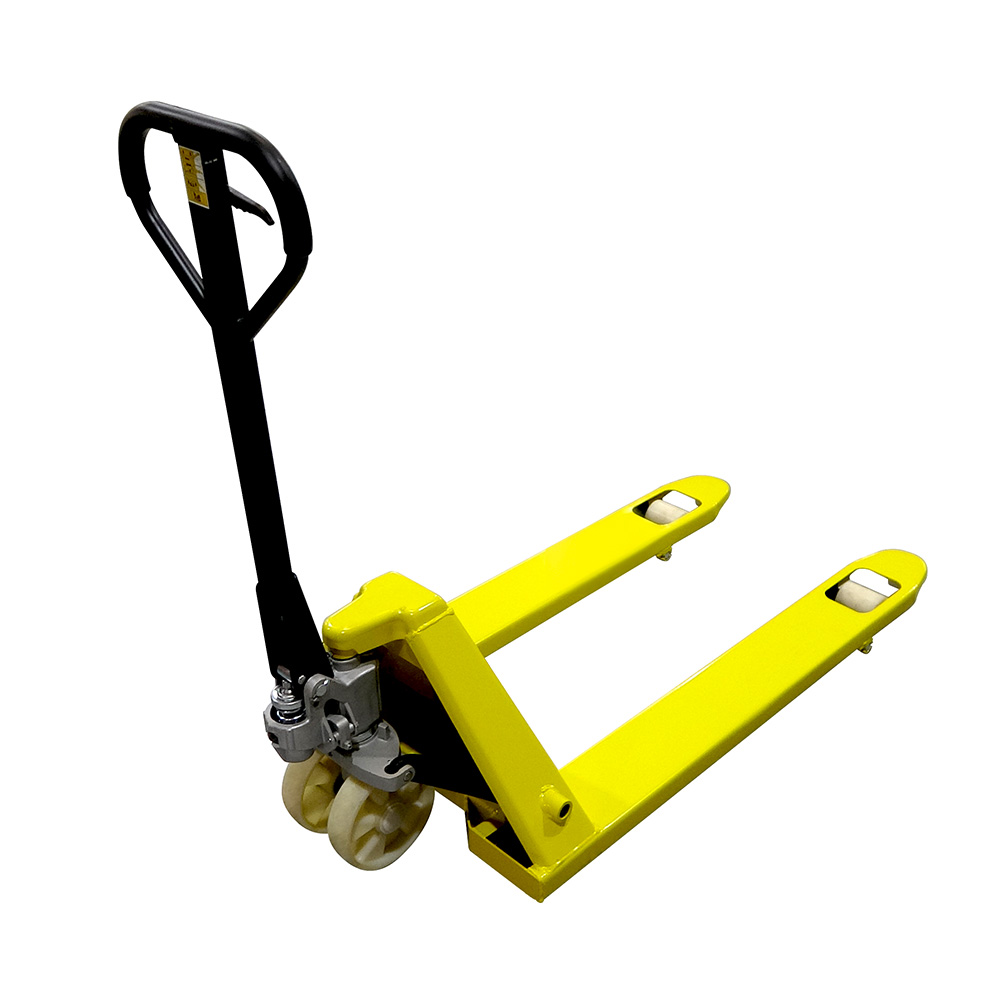

Standard 2500kg Powder Coated Pallet Jack (PJR001Y)

$395.00 ex. GST
$434.50 inc. GST

Available Online

International Shipping Available

Estimeted Freight Cost

Use my location

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Estimated Freight Cost

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

This popular, high-quality Pallet Jack is the industry standard for lifting, shifting, and placing Australian pallets

  • 2,500kg safe working load (SWL)
  • 1 year warranty
  • 685mm overall width
  • designed for standard Australian pallets
  • Sealed dust and waterproof precision hydraulic pump
  • Ergonomic, smooth action lift handle

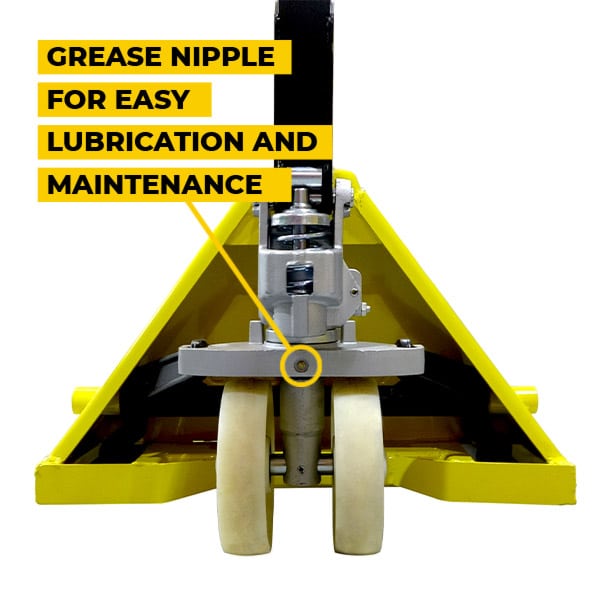

  • Grease nipple for easy lubrication and maintenance
  • Fitted with industrial Nylon wheels and rollers (optional Polyurethane Rollers available)
  • Delivered within 3-7 days OR visit one of our many store locations for Click and Collect

Description

Rugged, reliable and ready for immediate use – the PJR001 is Australia’s leading pallet jack.

Our pallet jacks take the hard work out of lifting and moving pallets around your busy warehouse, factory, or storeroom. The nylon entry rollers help to easily position the forks under a pallet ready for it to be raised of the ground with the manual hydraulic pump.

Nylon Rollers

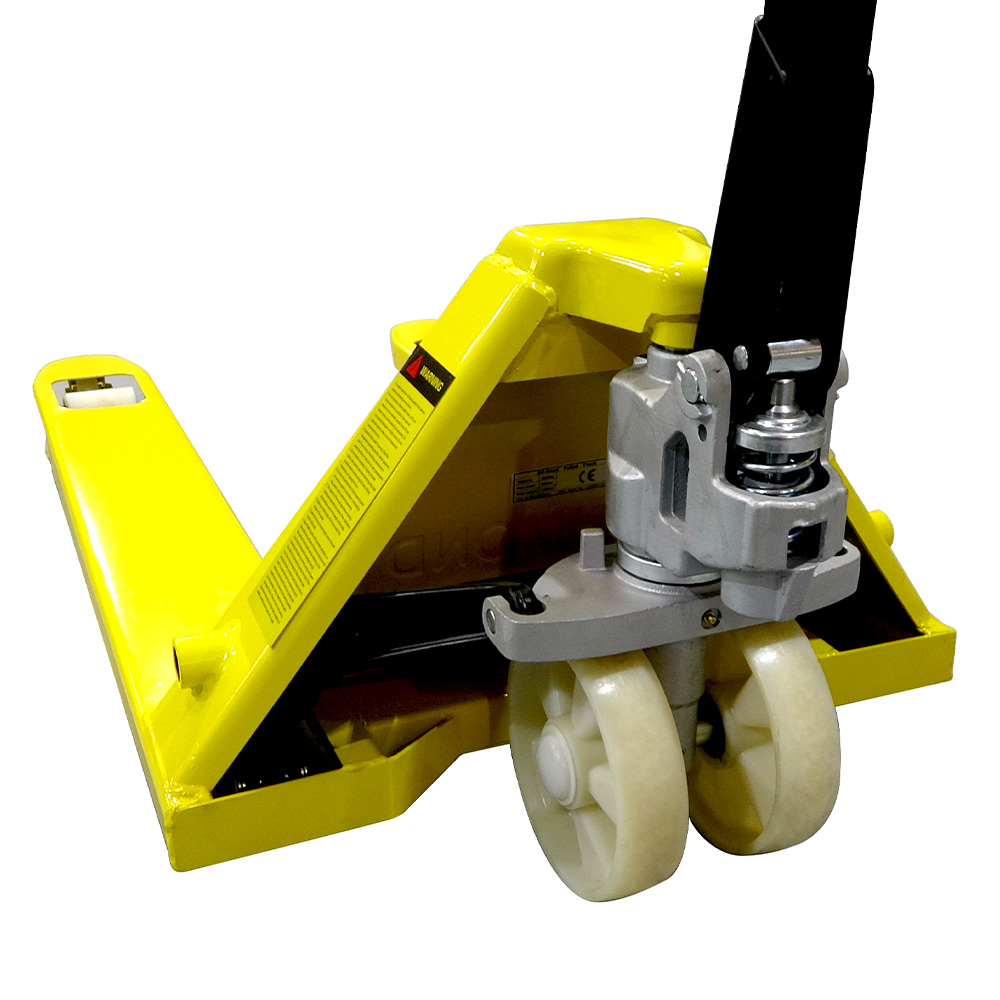

Our PJR001 pallet jack comes equipped with nylon wheels and rollers – nylon offers a low friction, durable material that offers a higher load capacity.

Are there any other wheel types available?

The PJR001 can also be supplied with polyurethane wheels and rollers as an optional add-on. Polyurethane wheels and rollers offer a quieter running alternative to nylon and are non-marking to protect surfaces such as polished concrete.

Ask our team for more information.

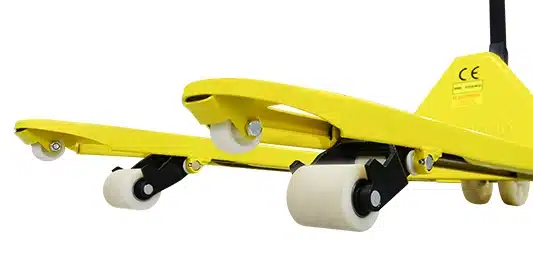

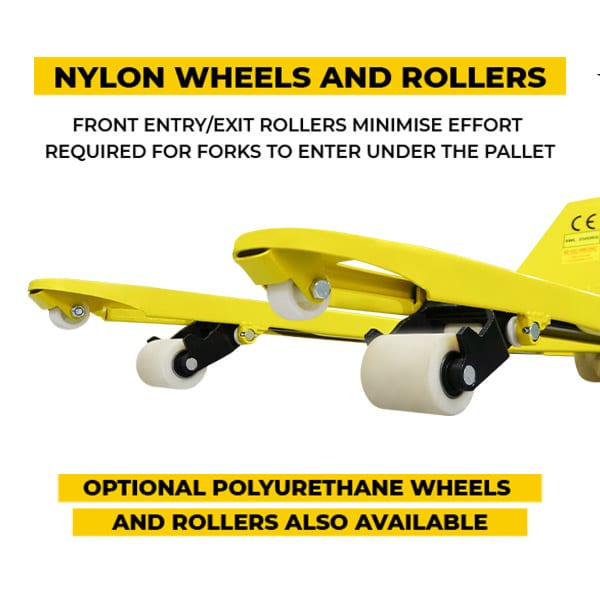

PJR001 Entry Rollers

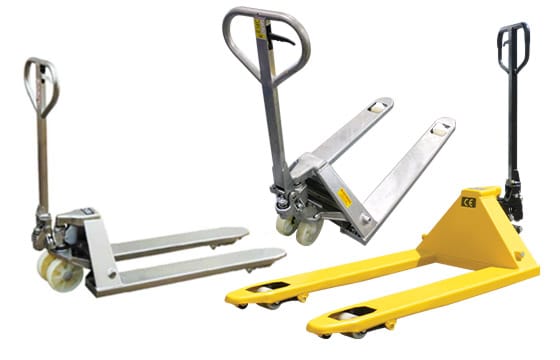

PJR001 materials

A Range of Materials Available

We offer pallet jacks in powder coated steel, galvanised steel, and stainless steel finishes to ensure that no matter your environment, we can provide a solution.

Not sure which is best for your business? Contact our team Australia-wide for support.



Our Pallet Jacks Have Been Helping Australian Industries Move Goods Since 1961

Our pallet jacks have been helping Australian industries move their goods since 1961. With continual improvements being made over the years to ensure our products continue to perform and meet the demands of the Australian market.

We offer a range of pallet jack options to suit different industries and environments. View our range to see all the options we have to offer.

pallet jack history

Product FAQs

The PJR001 can also be supplied with polyurethane wheels and rollers as an optional add-on. Polyurethane wheels and rollers offer a quieter running alternative to nylon and are non-marking to protect surfaces such as polished concrete.

Ask our team for more information.

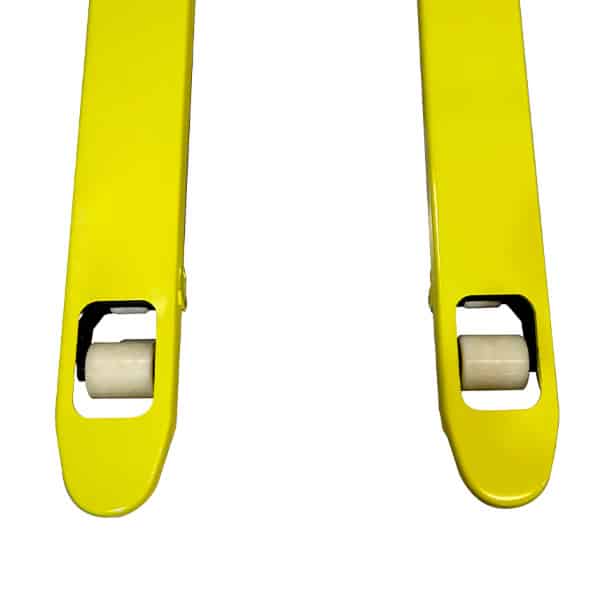

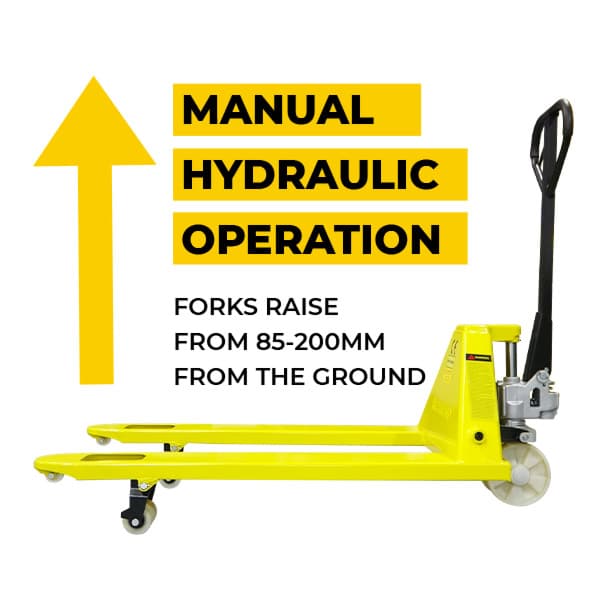

The forks have a minimum height of 85mm and can be raised to a maximum height of 200mm, allowing for easy insertion under standard Australian pallets and sufficient lift for transport.

The pallet jack has a product weight of 73kg, making it sturdy yet manageable for manual operation.

The PJR001Y comes fitted with industrial nylon wheels and rollers, which offer low friction and high durability. Optional polyurethane rollers are available for quieter operation and to protect sensitive flooring surfaces.

Yes, the pallet jack features a sealed, dust- and waterproof precision hydraulic pump, ensuring longevity and reliable performance in various environments.

Regular maintenance includes checking the hydraulic oil level every six months, lubricating all bearings and shafts monthly or after thorough cleaning, and inspecting wheels and axles for debris. It’s also recommended to store the forks in the lowest position when not in use.

The recommended hydraulic oil for this system is ISO VG32, which typically has a viscosity of approximately 30cSt at 40°C. This specification ensures optimal lubrication and performance under standard operating conditions. The system requires around 0.4 litres of oil for effective operation. While ISO VG32 is ideal, any general-purpose hydraulic oil with similar viscosity characteristics will work in most applications. However, for best performance and longevity of components, it’s always advisable to stick to the manufacturer’s recommended grade wherever possible.

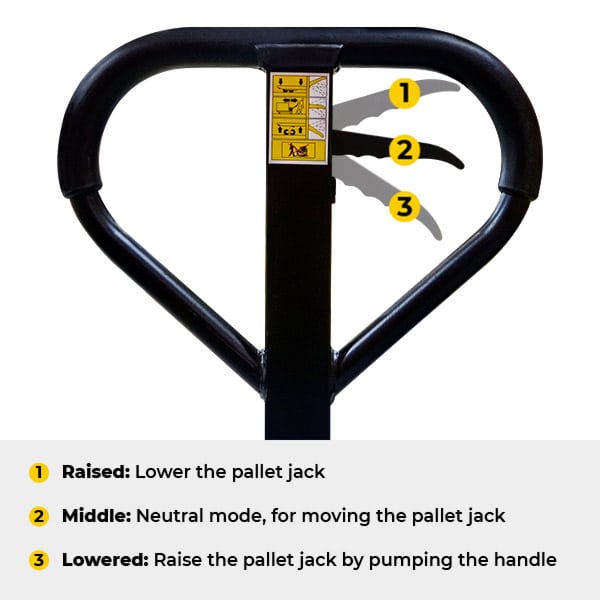

To remove air from the hydraulic system, set the control handle to the “LOWER” position and move the draw-bar up and down several times. This process helps eliminate air pockets that may have entered during transportation or if the pump was in an upset position.

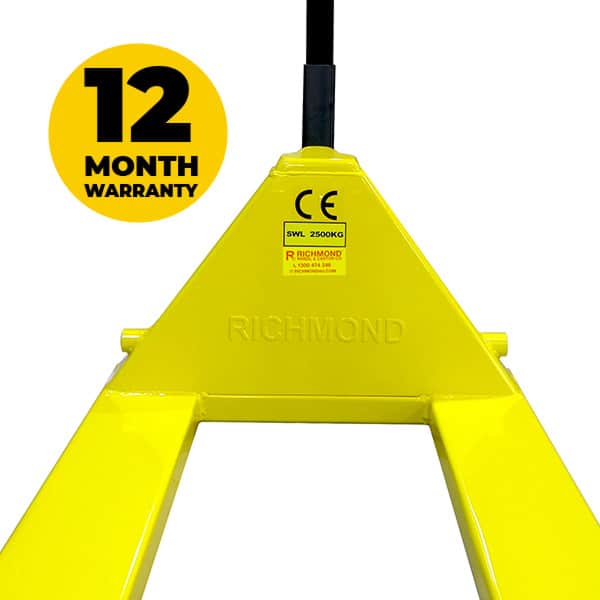

The pallet jack comes with a 1-year warranty, covering manufacturing defects and ensuring peace of mind for your purchase.

Yes, Richmond offers pallet jacks in powder-coated steel, galvanised steel, and stainless steel finishes to suit various environments and requirements.

The PJR001Y is designed specifically for standard Australian pallets, with a fork overall width of 685mm and a fork length of 1150mm, ensuring compatibility and ease of use.

Product Code PJR001Y
Safe Working Load (kg) 2500
Min Fork Height (mm) 85
Max Fork Height (mm) 200

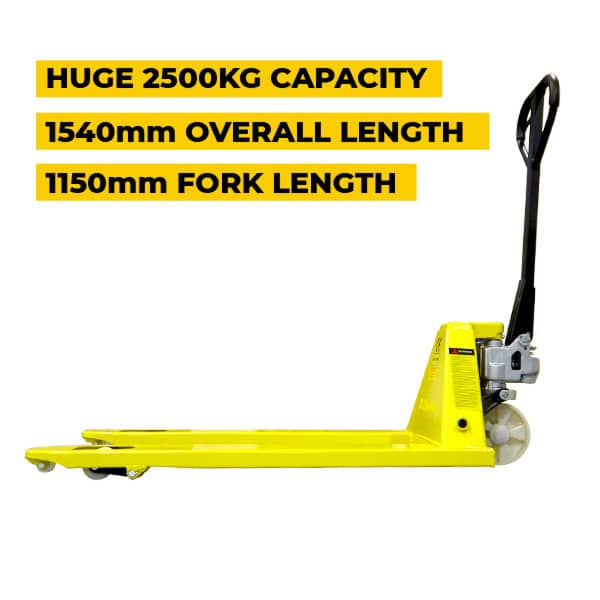

Fork Length (mm) 1150
Fork Overall Width (mm) 685
Material Powder Coated Steel
Product Weight 73kg
Roller Material Nylon
Rear wheel dimensions 50 x 200mm
Front Roller Dimensions 80 x 96mm
Entry/Exit Roller Dimensions 50 x 30mm
specs_image
PJR001 Pallet Jack User Manual Download

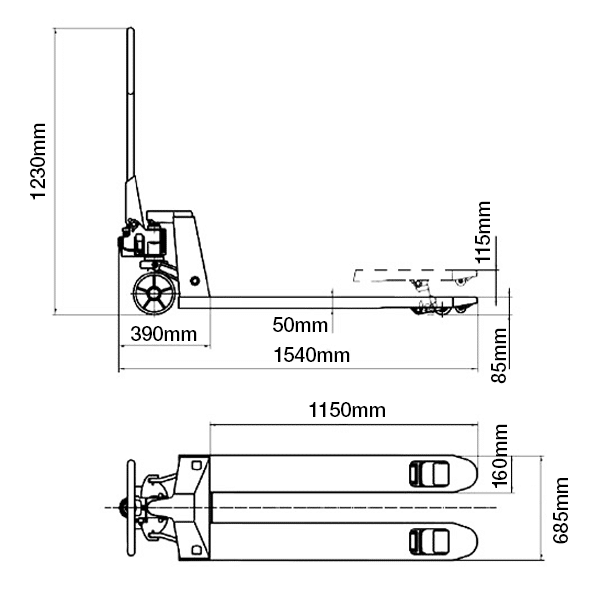

PJR001 Pallet Jack Dimensions Download
