Heavy duty Z-base roll cage with full and half swing doors, a fixed shelf, and smooth enclosed hinges for safe, secure handling in warehousing, logistics, retail, and healthcare environments.

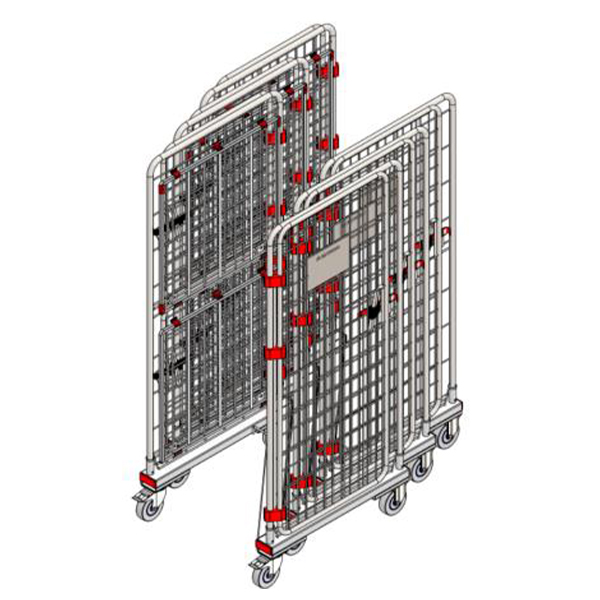

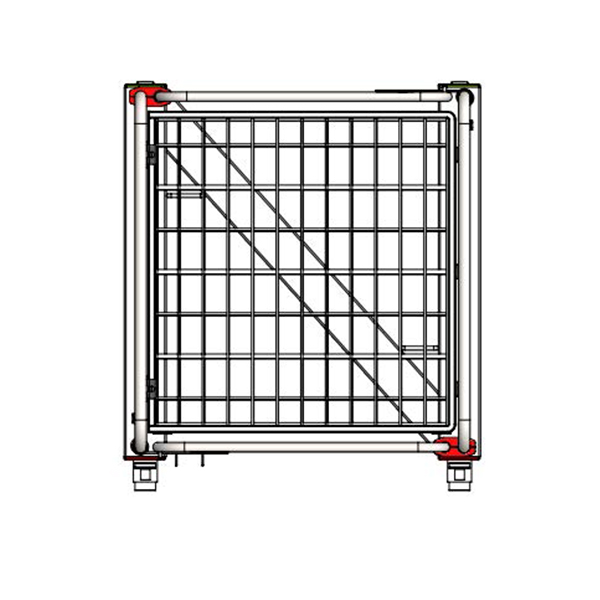

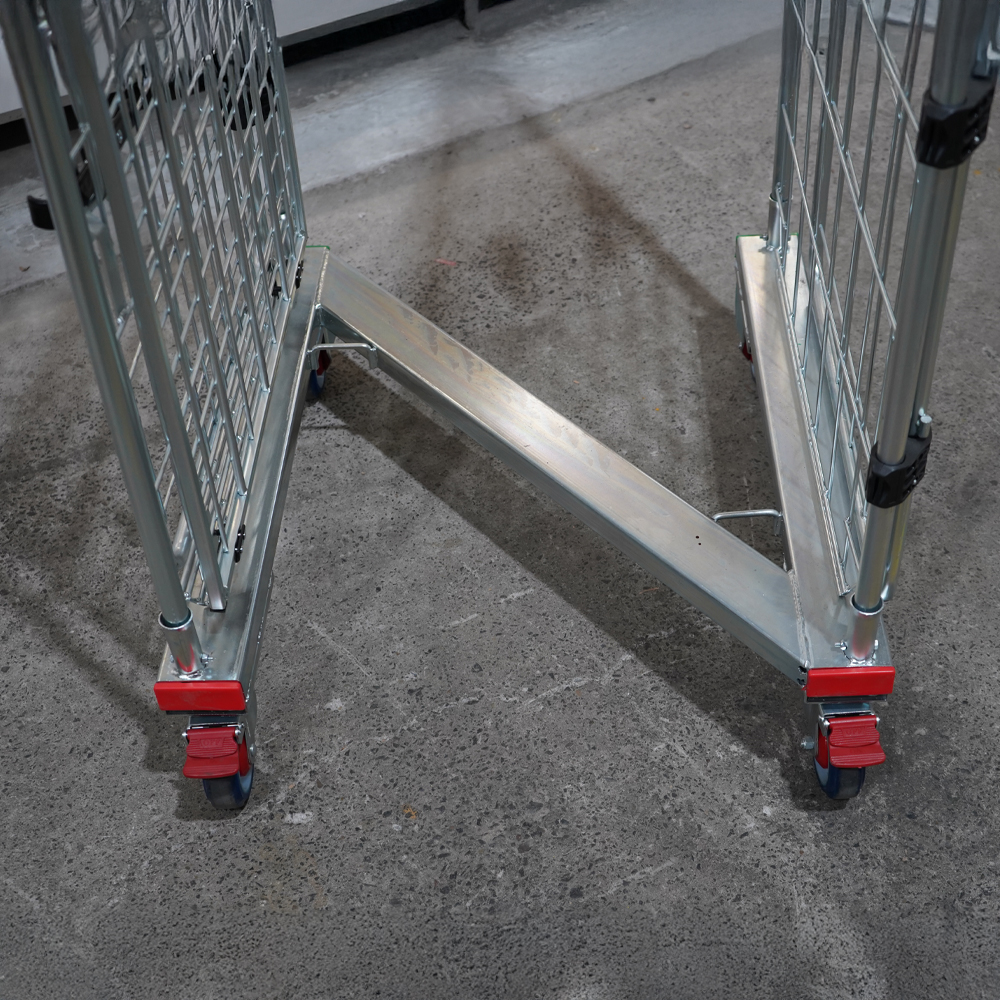

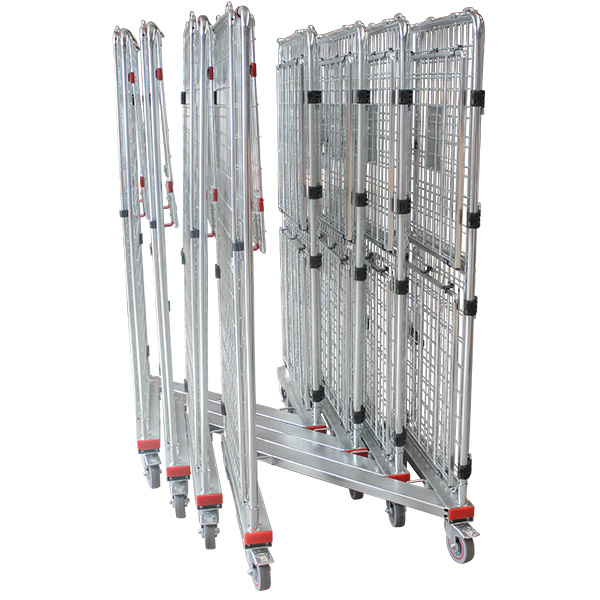

Z-Frame Base: Z-frame design for compact nesting in an offset pattern to minimise floor space during storage
High Load Capacity: Heavy duty cage with 500kg safe working load
4-Sided Cage: Secure 4-sided enclosure protects goods in transit. Includes 1x full door and 2x half doors for secure transport and stock access.
Includes fixed shelf: For multi-level goods sorting. The shelf can be raised out of the way when not required and back down when needed. Shelf capacity 250kg
Durable Steel Frame: Fully welded zinc-plated steel frame for corrosion and wear resistance
Improved Strength and OH&S: High quality steel hinges on all doors & latches are fully enclosed within a smooth plastic casing for improved OH&S

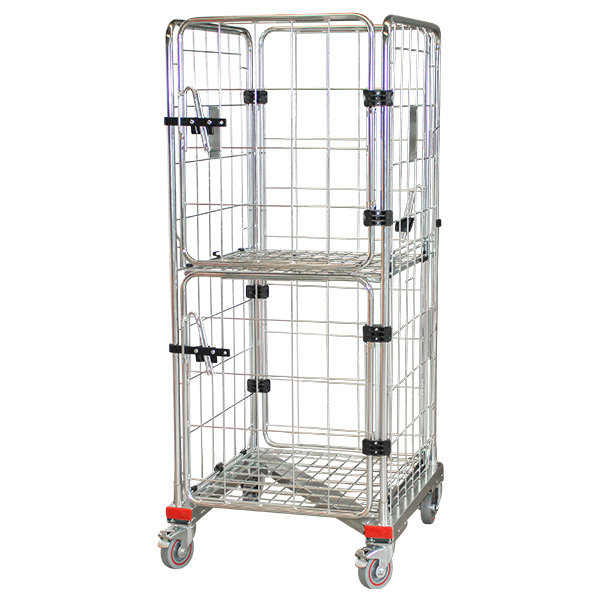

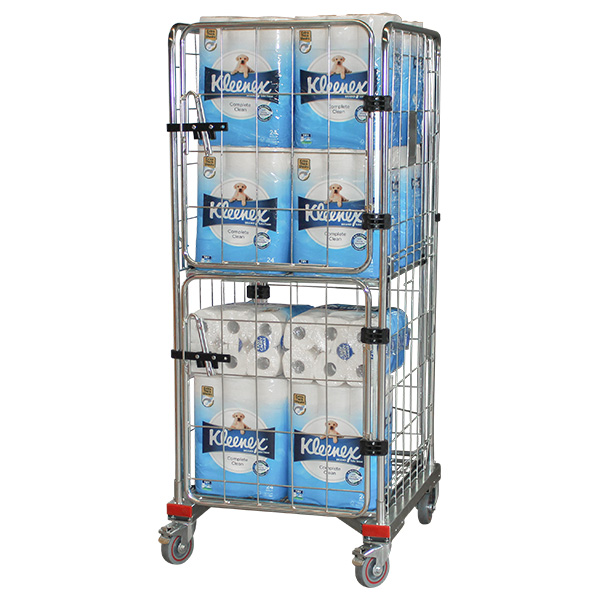

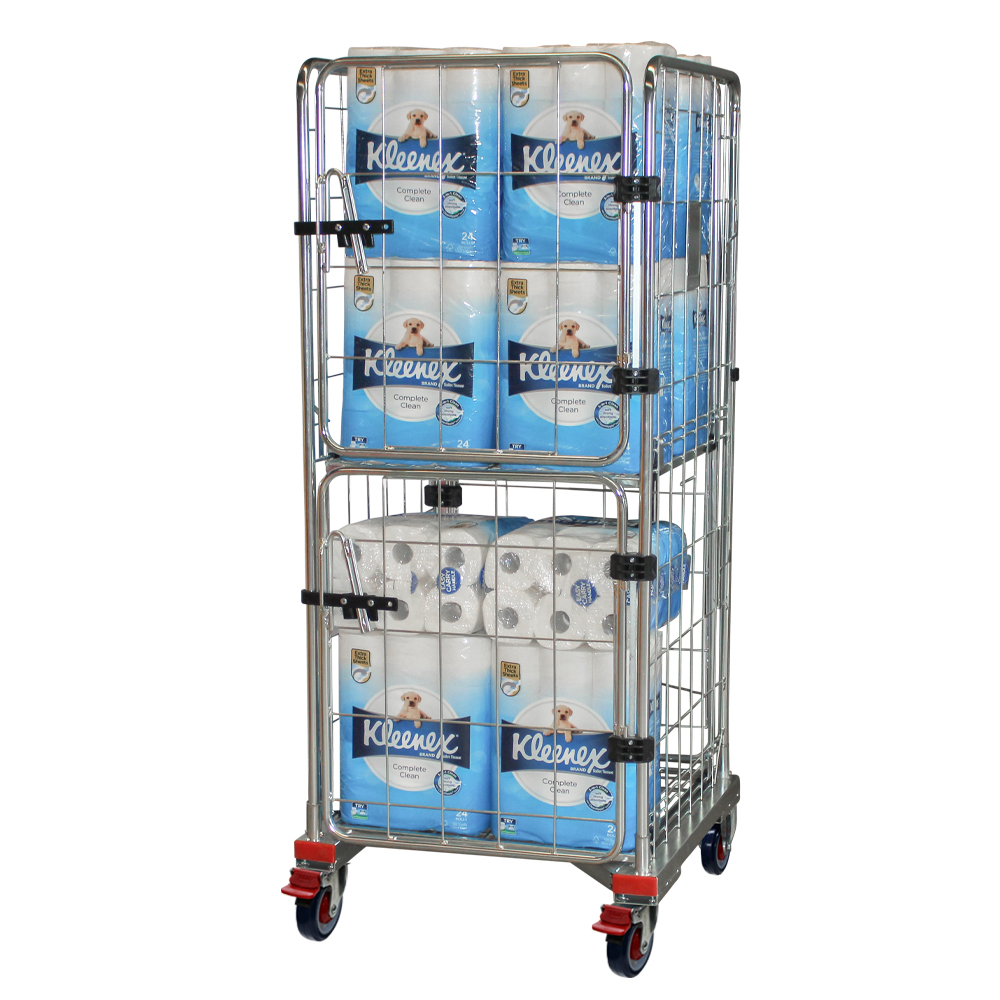

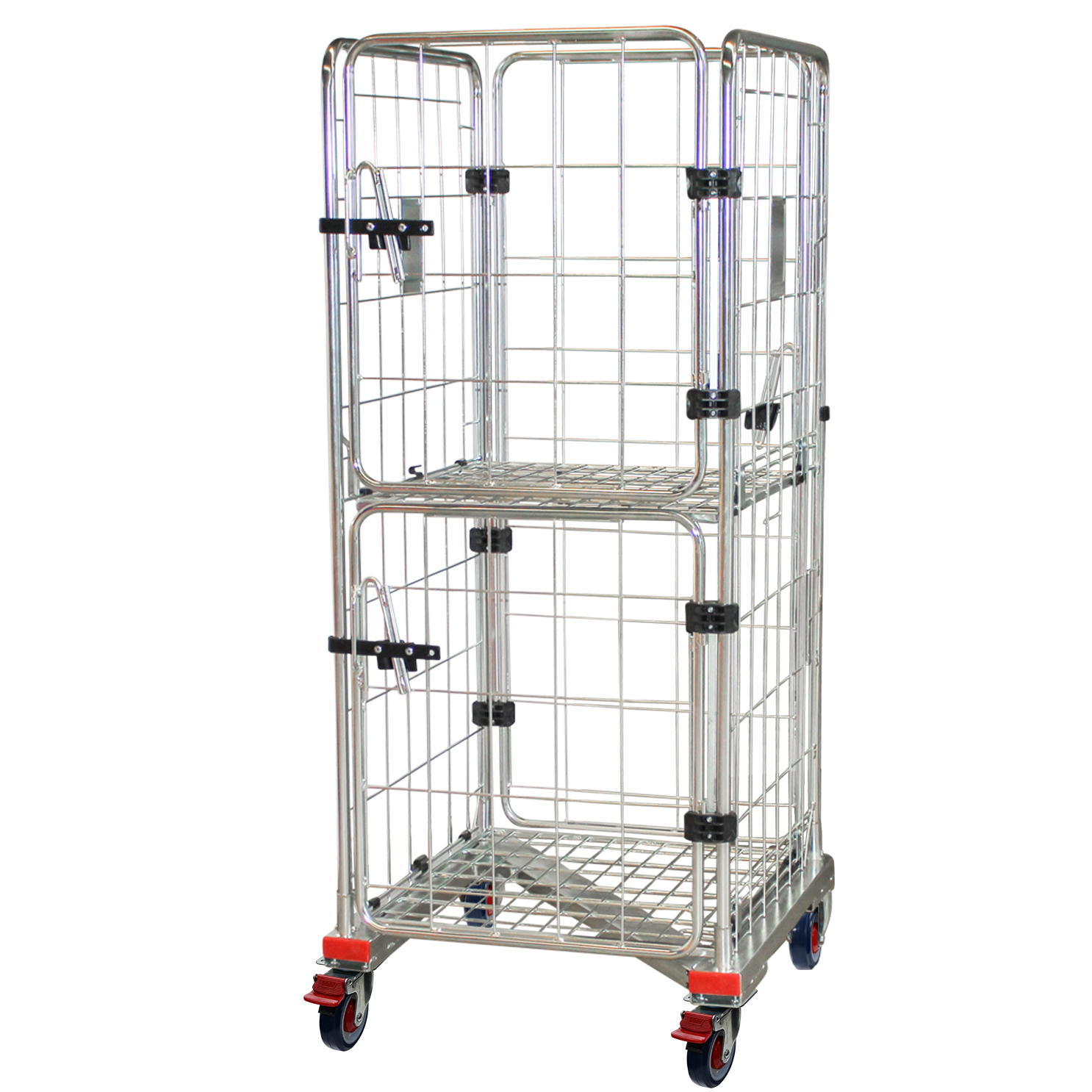

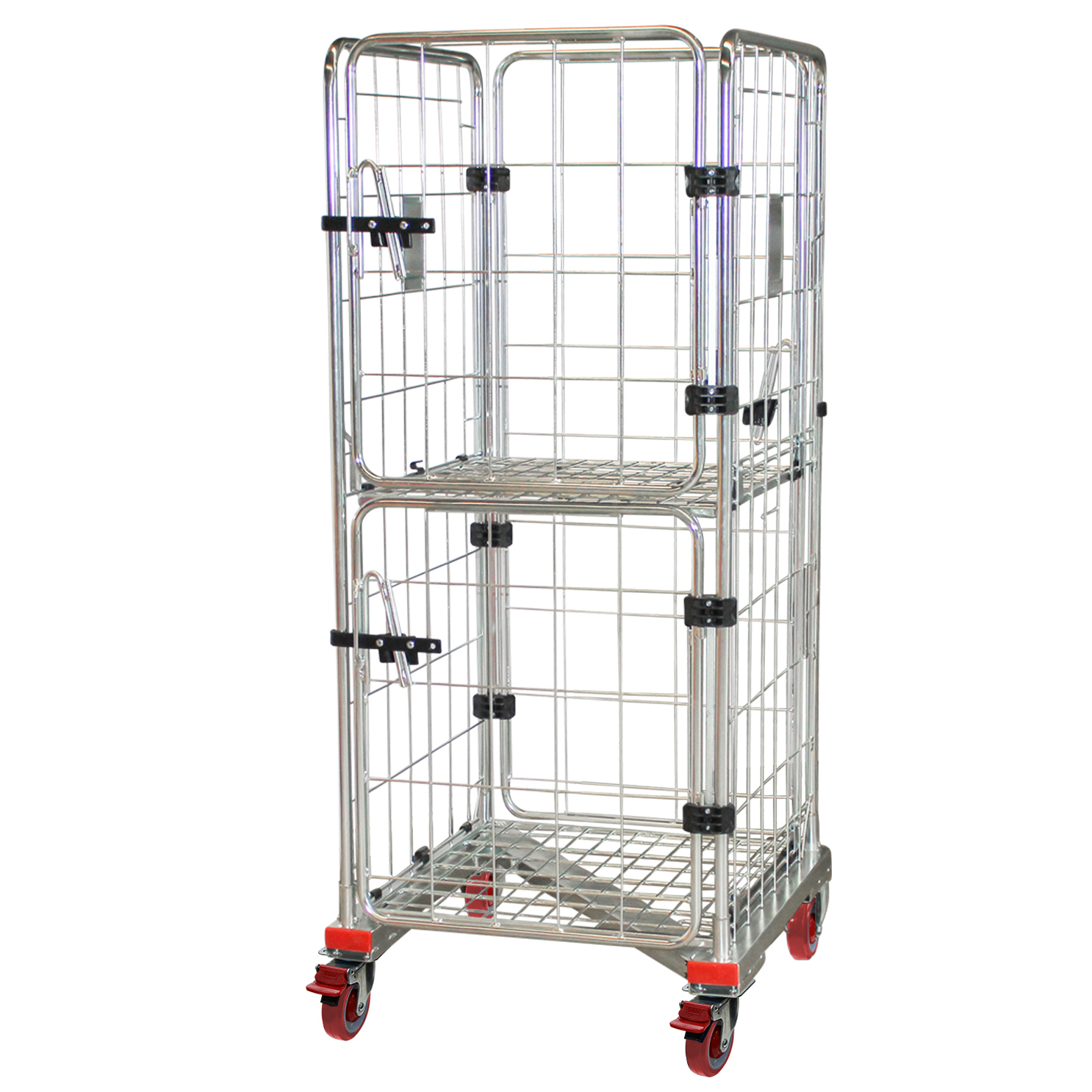

The RCR411 4-Sided Roll Cage is a fully enclosed trolley built for secure, ergonomic, and efficient goods handling in warehouses, healthcare, retail, and cold storage facilities. Its Z-base design allows nesting with other Z-base units for space-saving storage and transport, while the high-quality zinc-plated frame ensures durability in demanding environments.

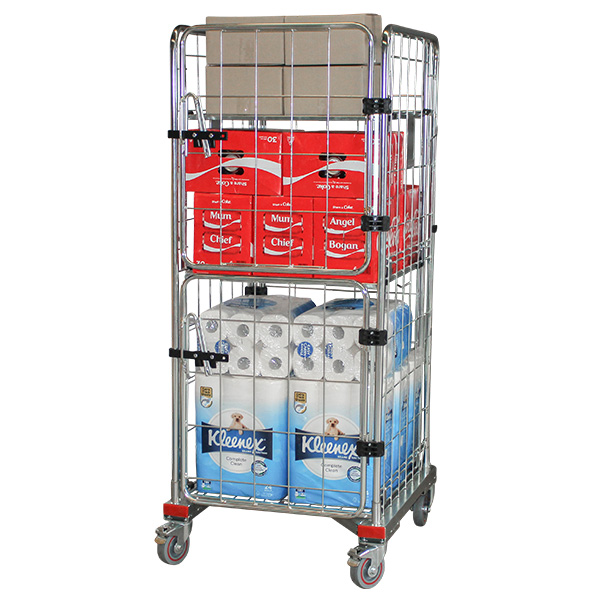

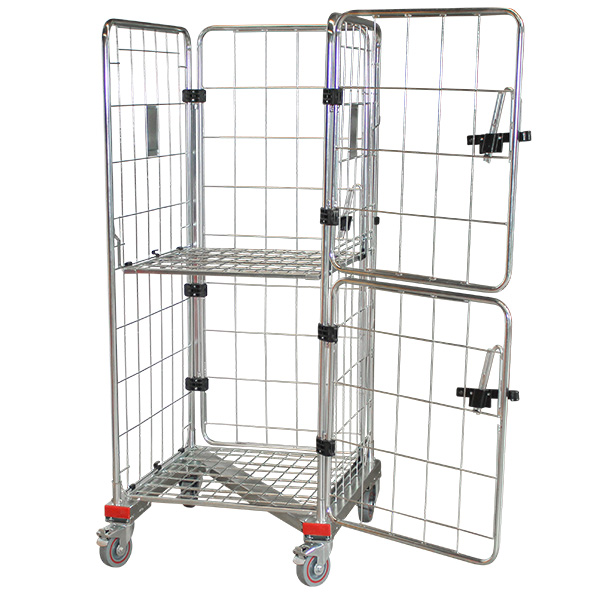

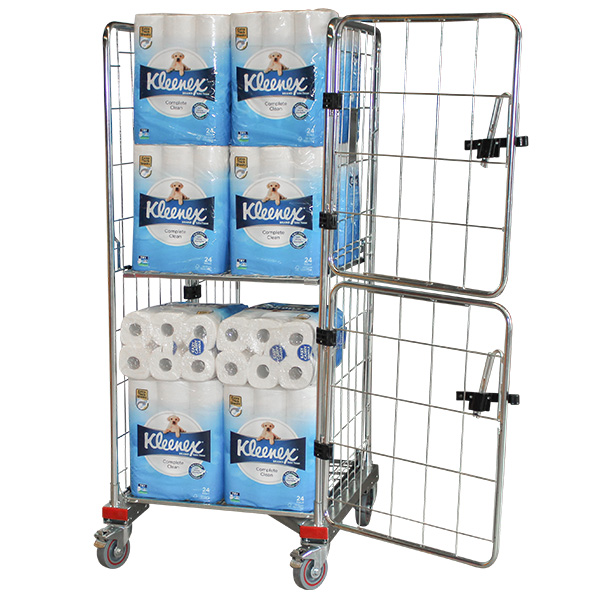

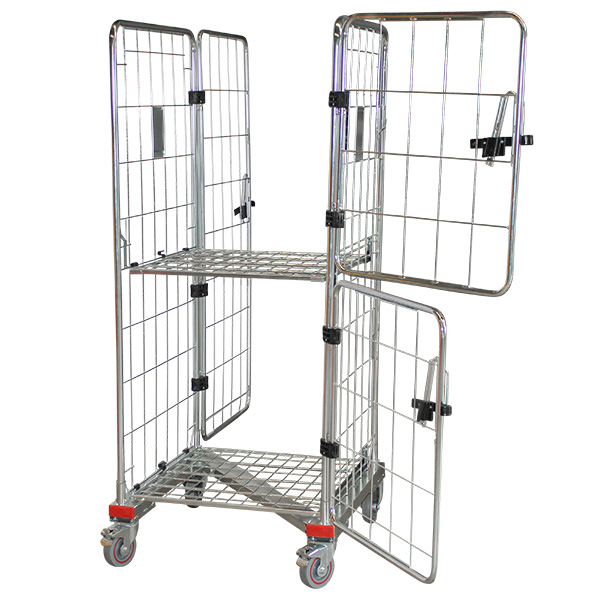

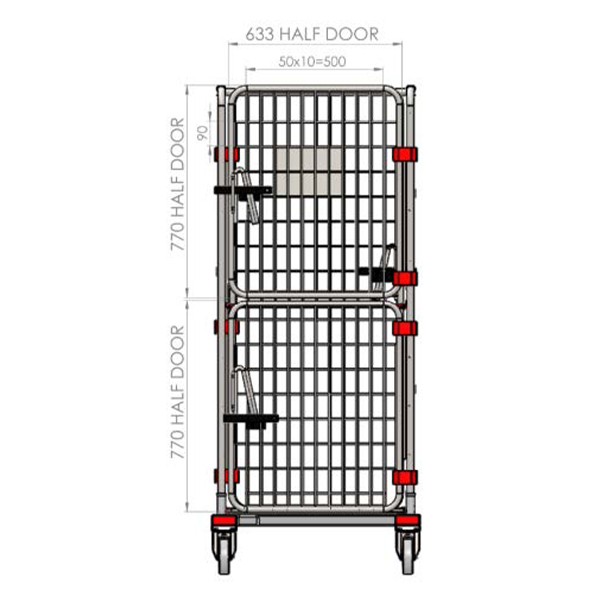

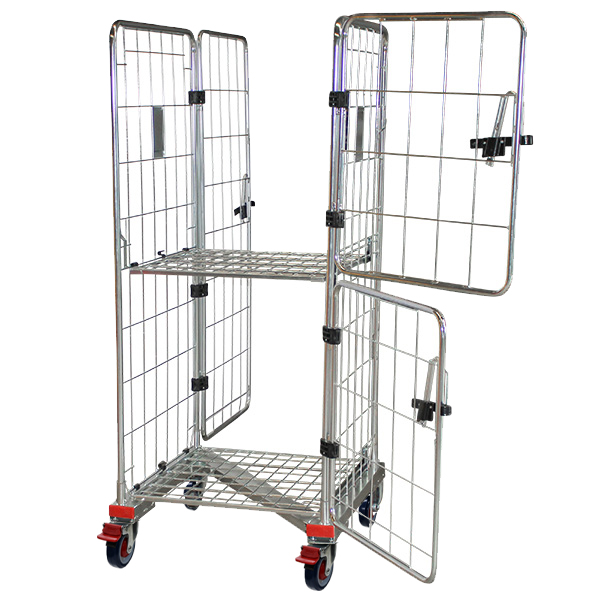

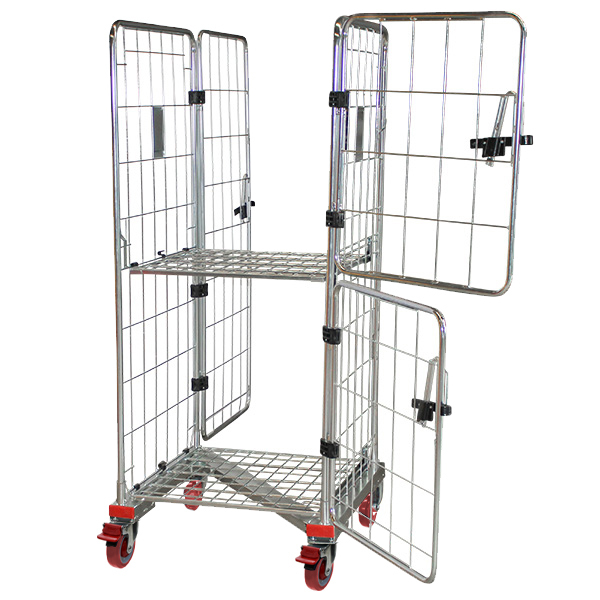

This model includes a full-height swing door, two half-height swing doors, and a fixed internal shelf with a 250kg load rating – ideal for splitting and staging loads. All doors are hinged on one side and fitted with rounded steel latches enclosed in smooth plastic casing to improve safety and reduce snag hazards in high-traffic areas.
The trolley rolls on four 125mm rebound polyurethane wheels – two rigid and two swivel with brakes – providing smooth, quiet movement over hard surfaces. Bolted castor mounting allows for easy maintenance or replacement during the unit’s life cycle.
Product FAQs

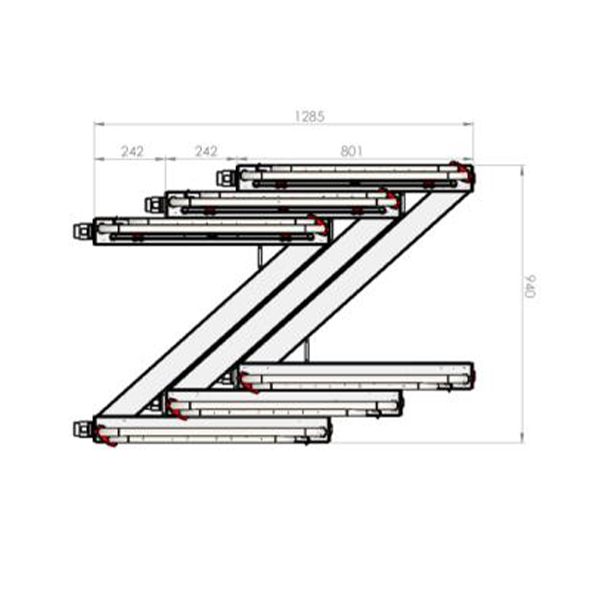

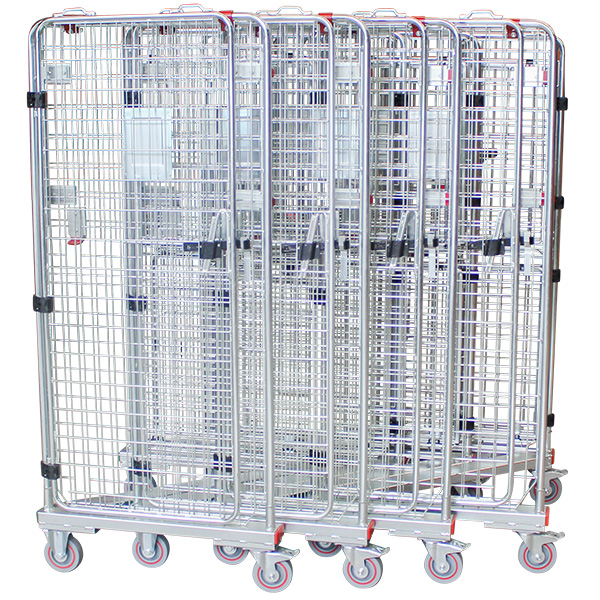

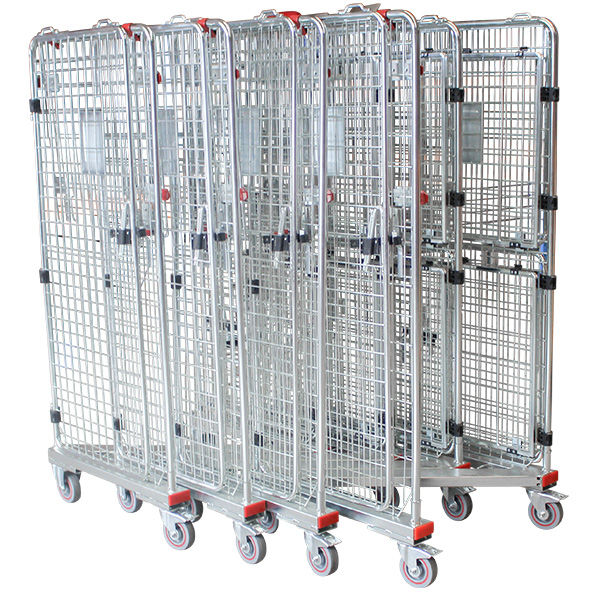

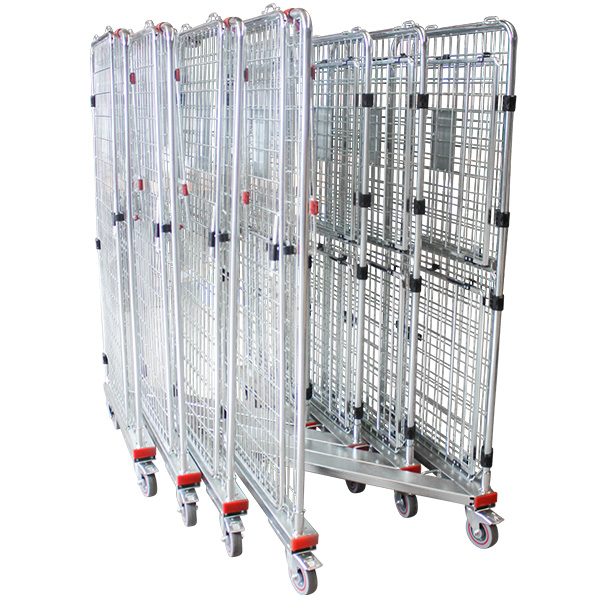

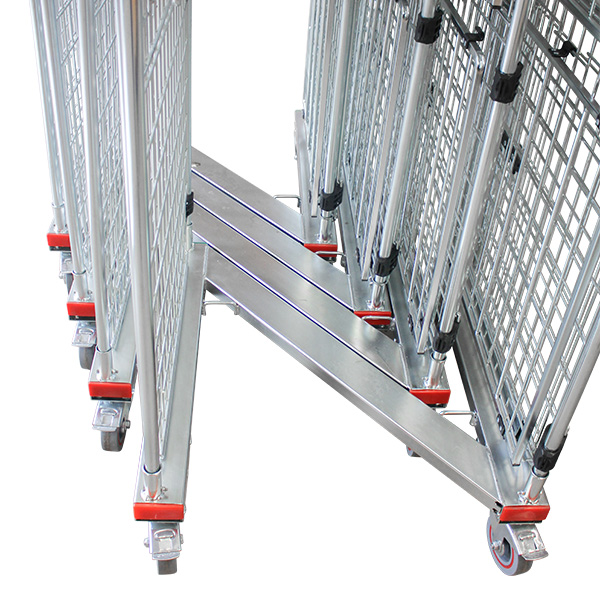

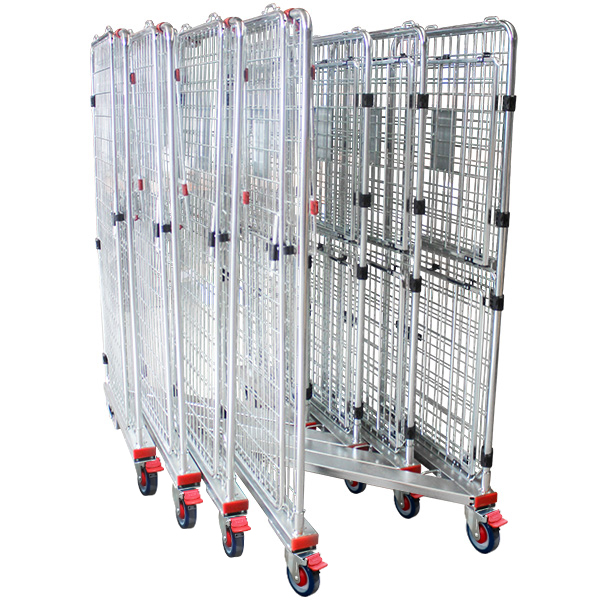

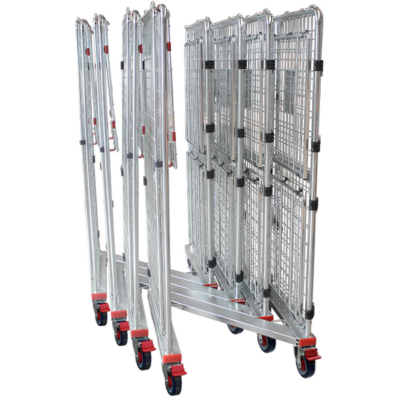

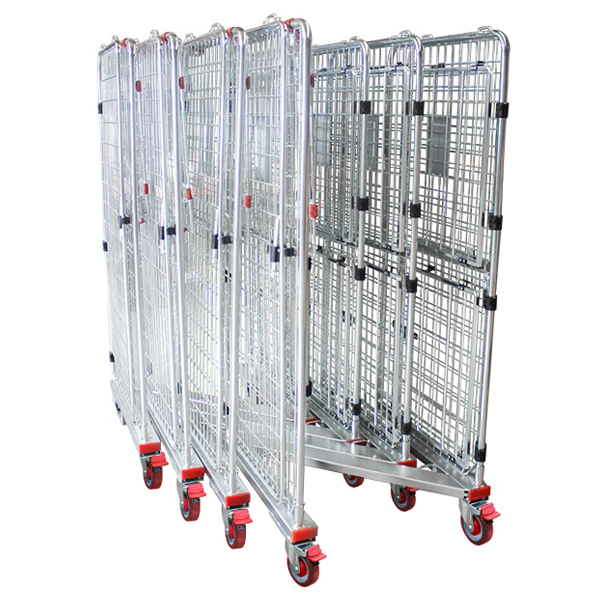

Yes. The Z-base design allows multiple cages to nest in an offset pattern with other z-base roll cages to minimise floor space required during storage.
This cage uses rebound polyurethane wheels on the castors: 2 x 125mm rigid and 2 x 125mm swivel with brakes.
All door hinges & latches on the RCR411 are enclosed within a smooth plastic casing for improved OH&S.
A-Base or H-Frame Roll Cages
The letter refers to the base/chassis frame – they are either an “A” or also known as “H” shape.
The “A” frame nest in a straight line for easy storage and transportation.
High quality design & manufacture with zinc plated finish.
Easily add extra shelves or accessories as required.
Multiple choice of wheel types available.
Z-Base Roll Cages

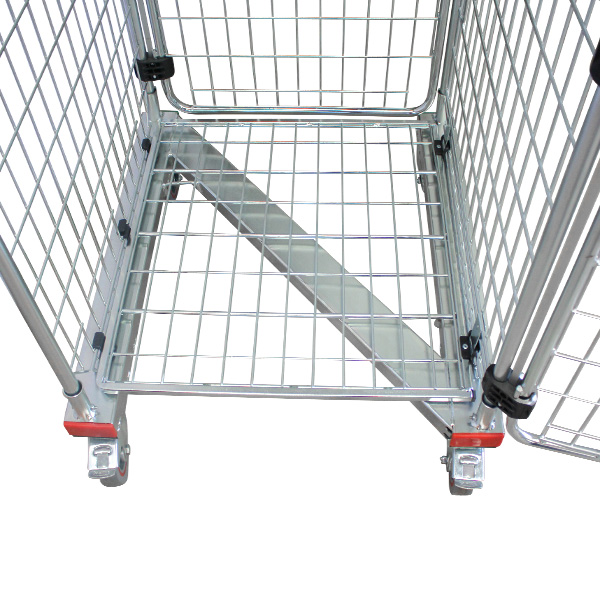

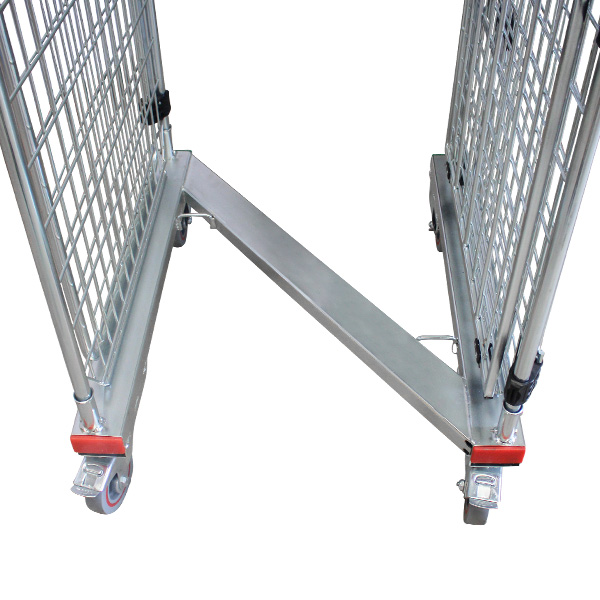

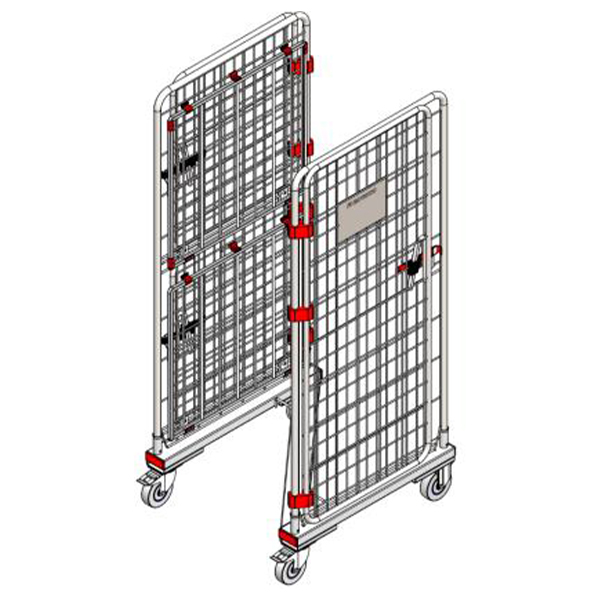

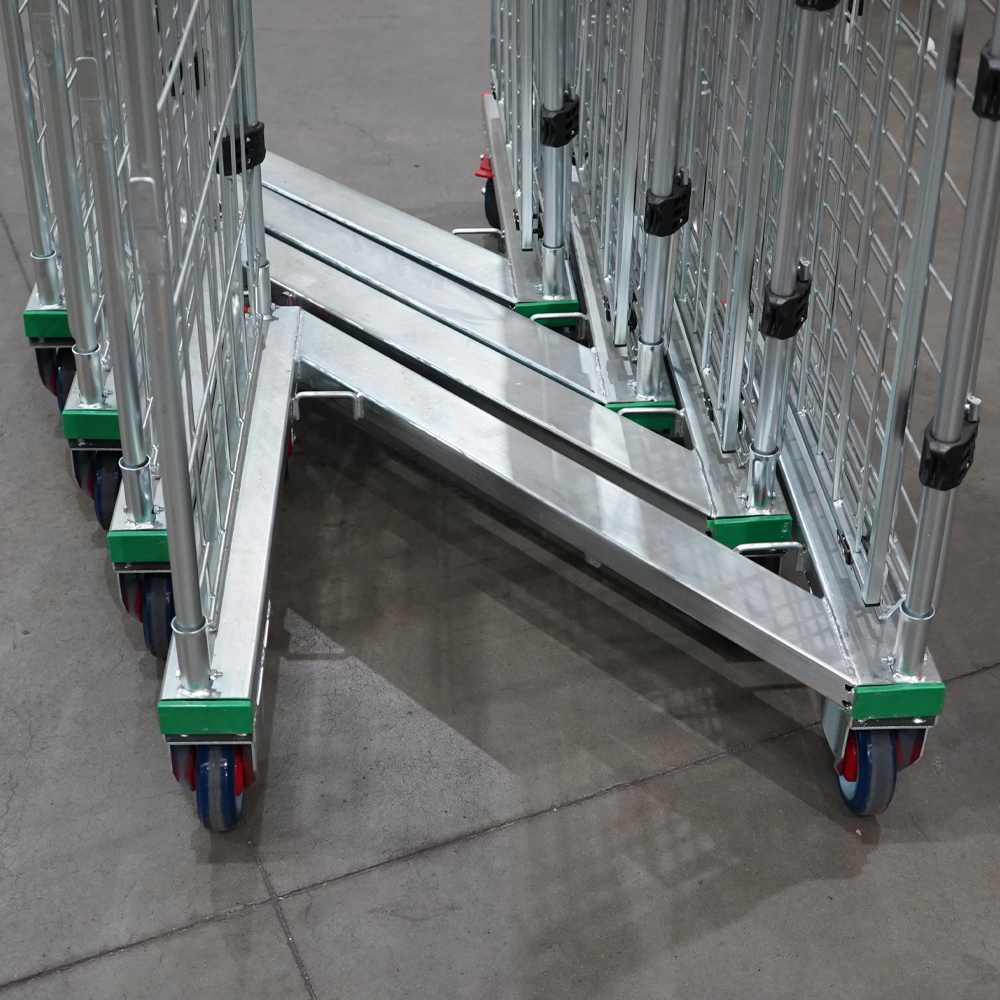

The base of the roll cages is in a “Z” shape and only nests with other “Z” base cages/trolleys.
High quality design & manufacture with zinc plated finish.
All door hinges & latches are enclosed within a smooth plastic casing for improved OH&S.

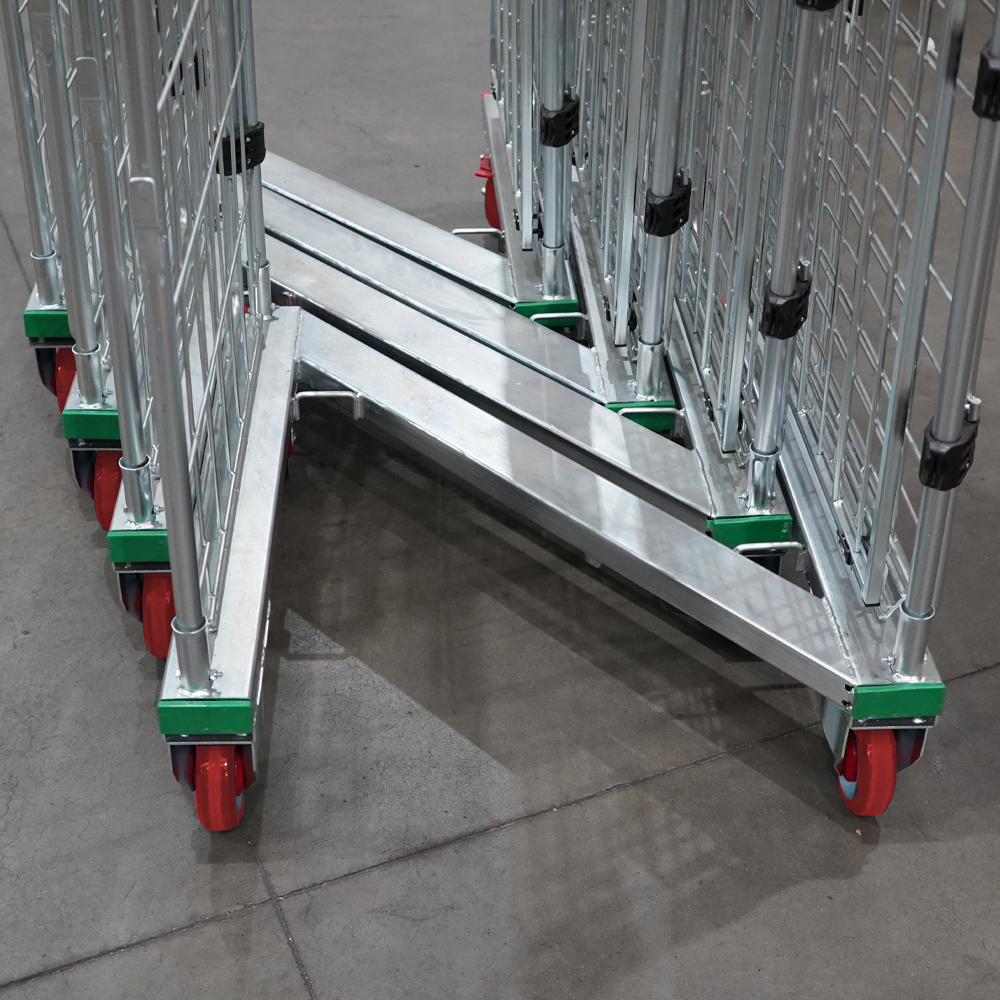

The castors of the “Z” base roll cages are all bolted to an underside channel – this allows the castors to be bolted on/off.
Yes. The RCR400 is supplied fully assembled and ready to use.

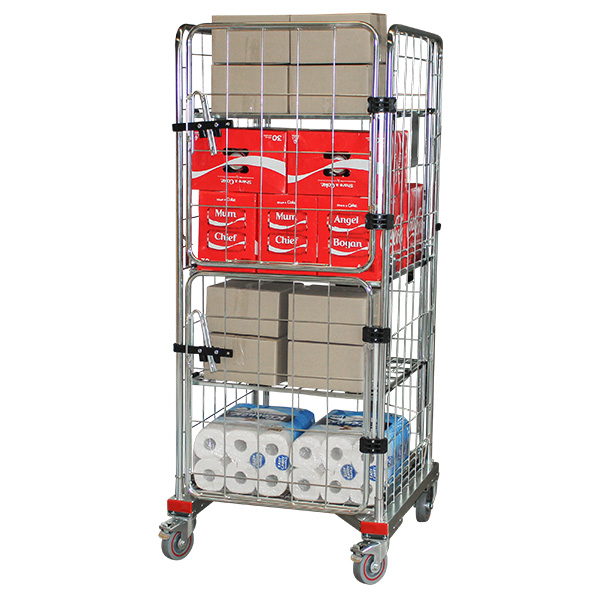

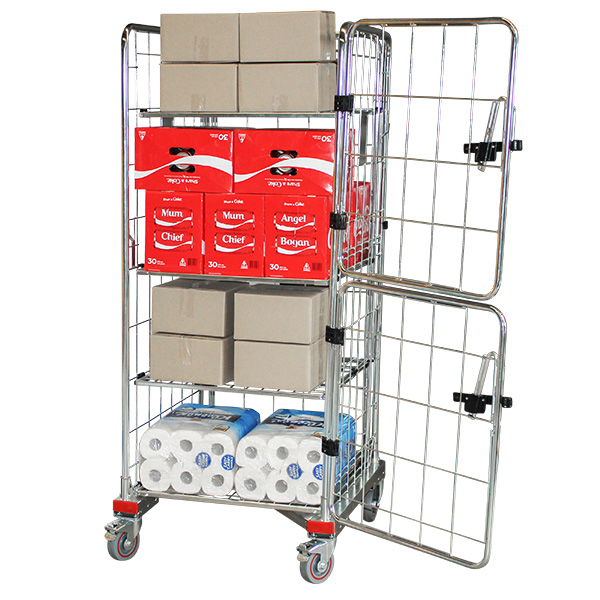

Yes. Optional fixed or removable shelving can be added depending on your handling needs.

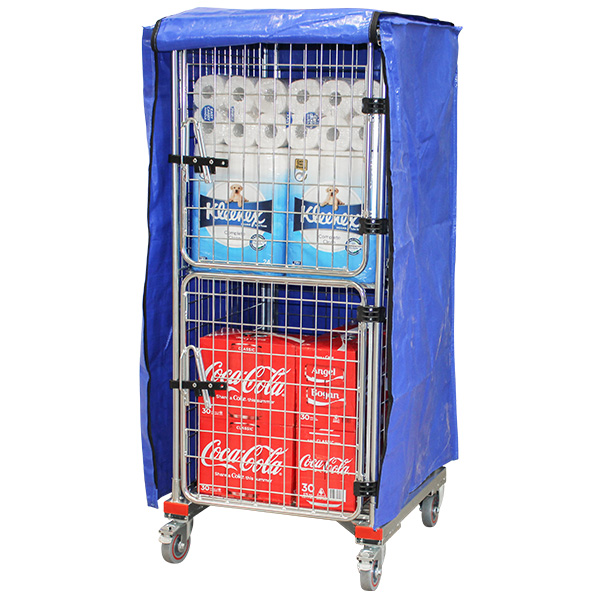

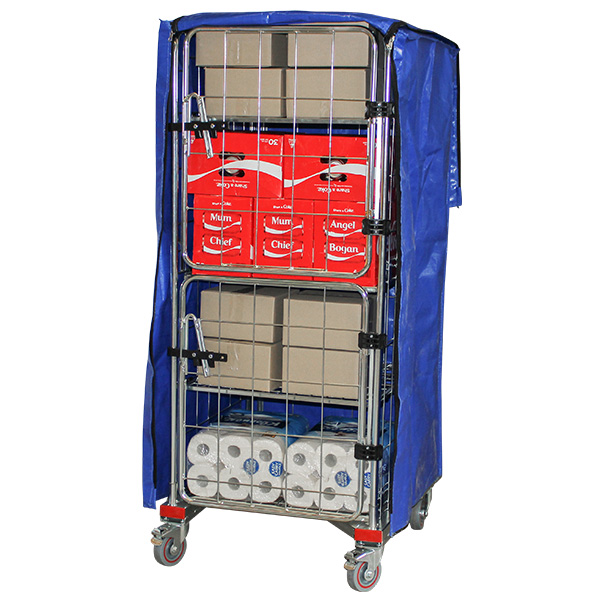

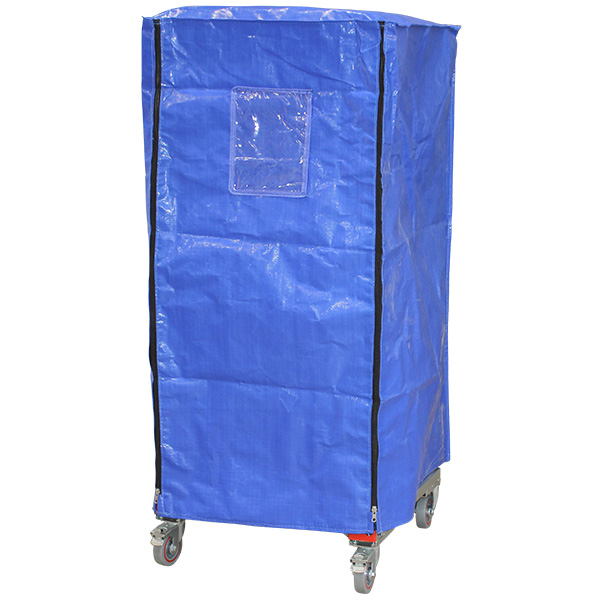

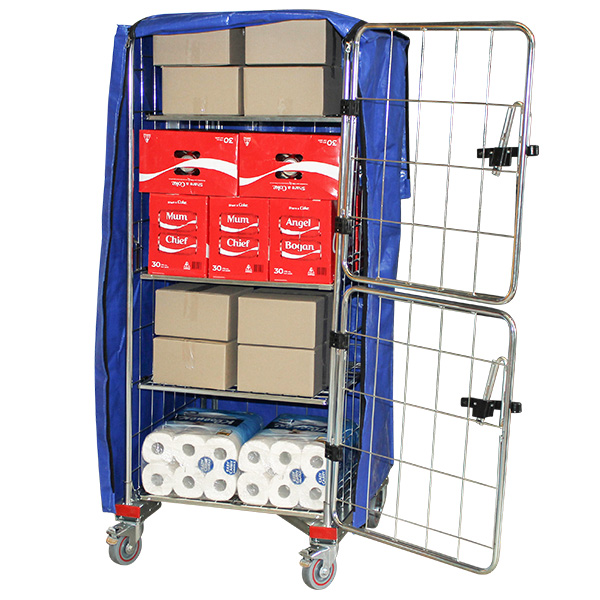

A range of other roll cage accessories including inserts, covers and more are available to upgrade your stock handling and sorting requirements.

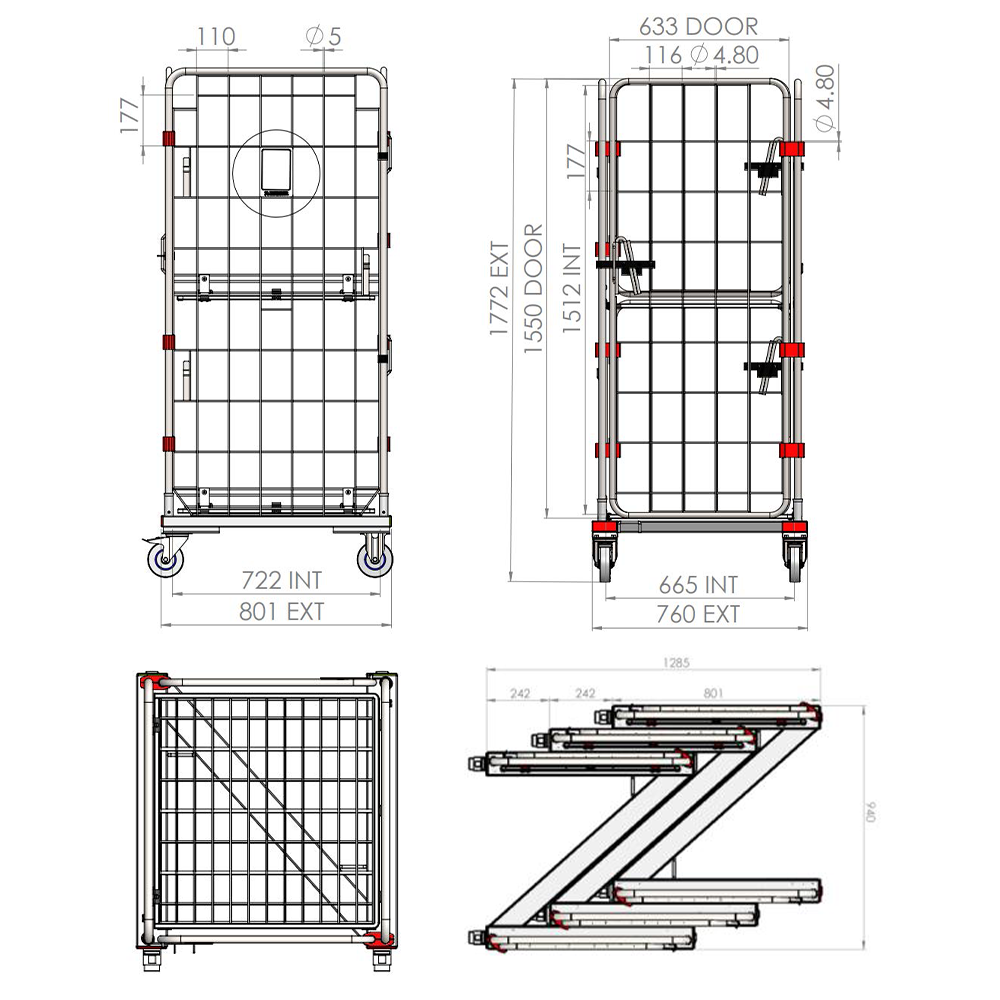

Product Code
RCR411

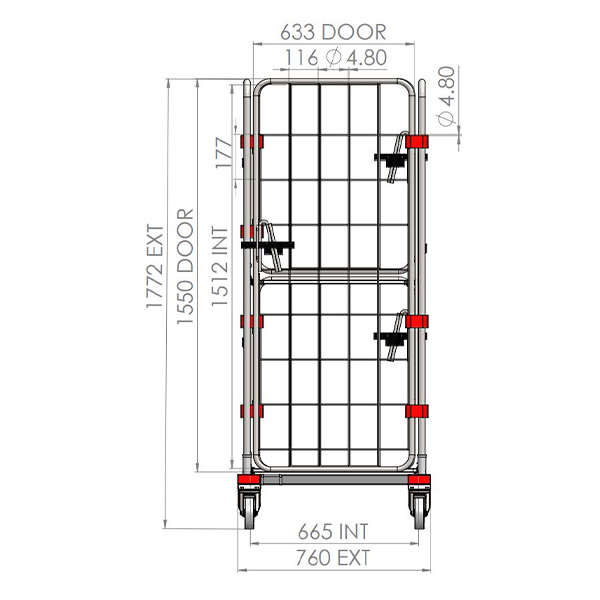

External Dimensions (mm)
760 x 800 x 1800
Internal Dimensions (mm)
665 x 722 x 1550
Safe Working Load (kg)
500
Base Frame Type
Z-base
Frame Material
Zinc Plated Steel
Wheel Material
Rebound Polyurethane
Front Wheel Diameter (mm)
125
Rear Wheel Diameter (mm)
125
Castor Configuration
2 x Rigid and 2x Swivel Brake
Weight (kg)
48
