Heavy-duty 4-sided security roll cage with lockable mesh doors, fixed shelf, and enclosed roof for secure handling of high-value goods and electronics.

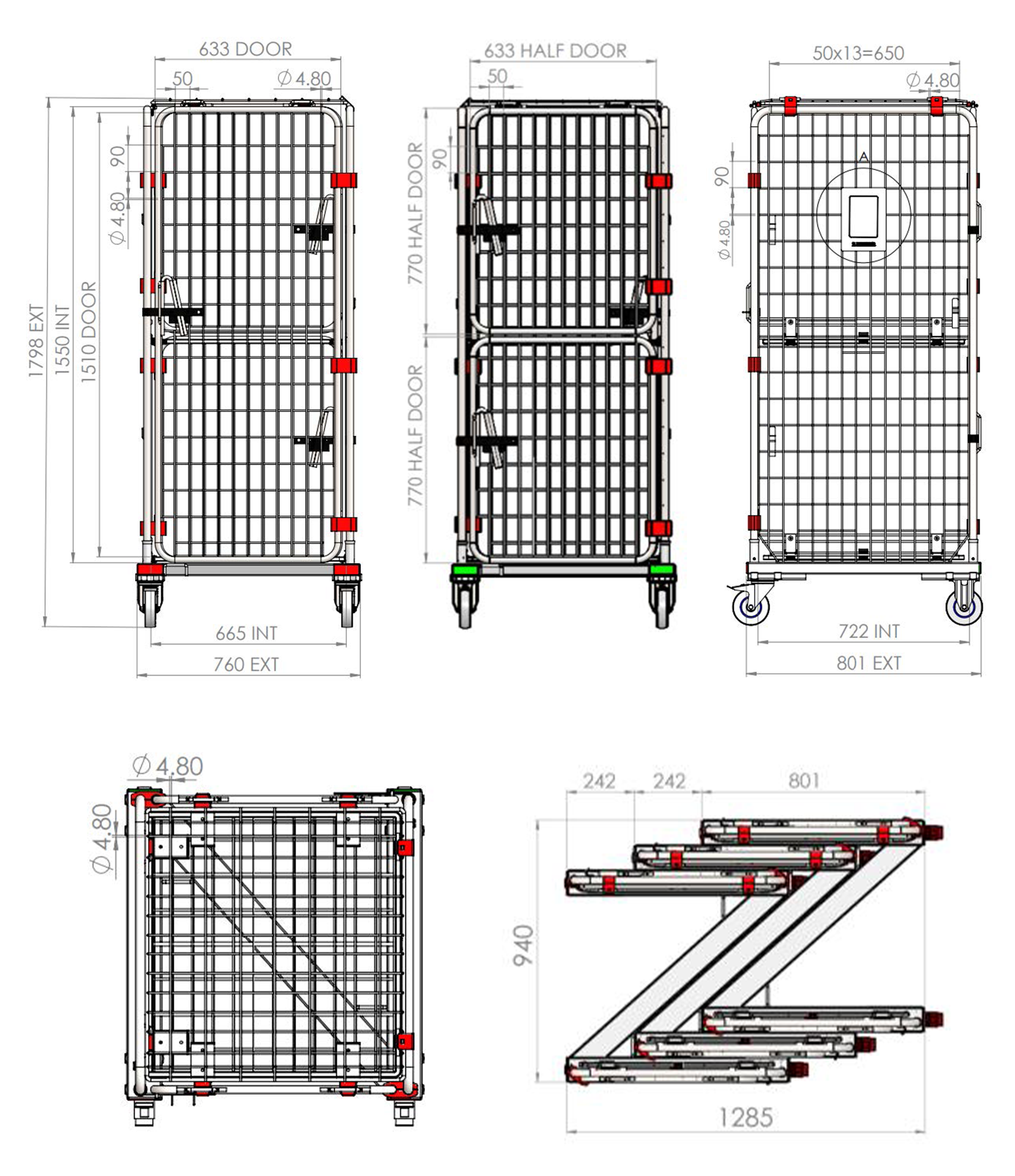

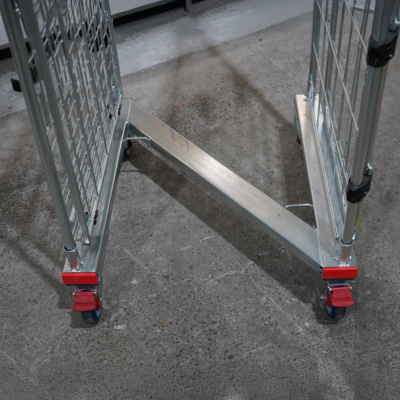

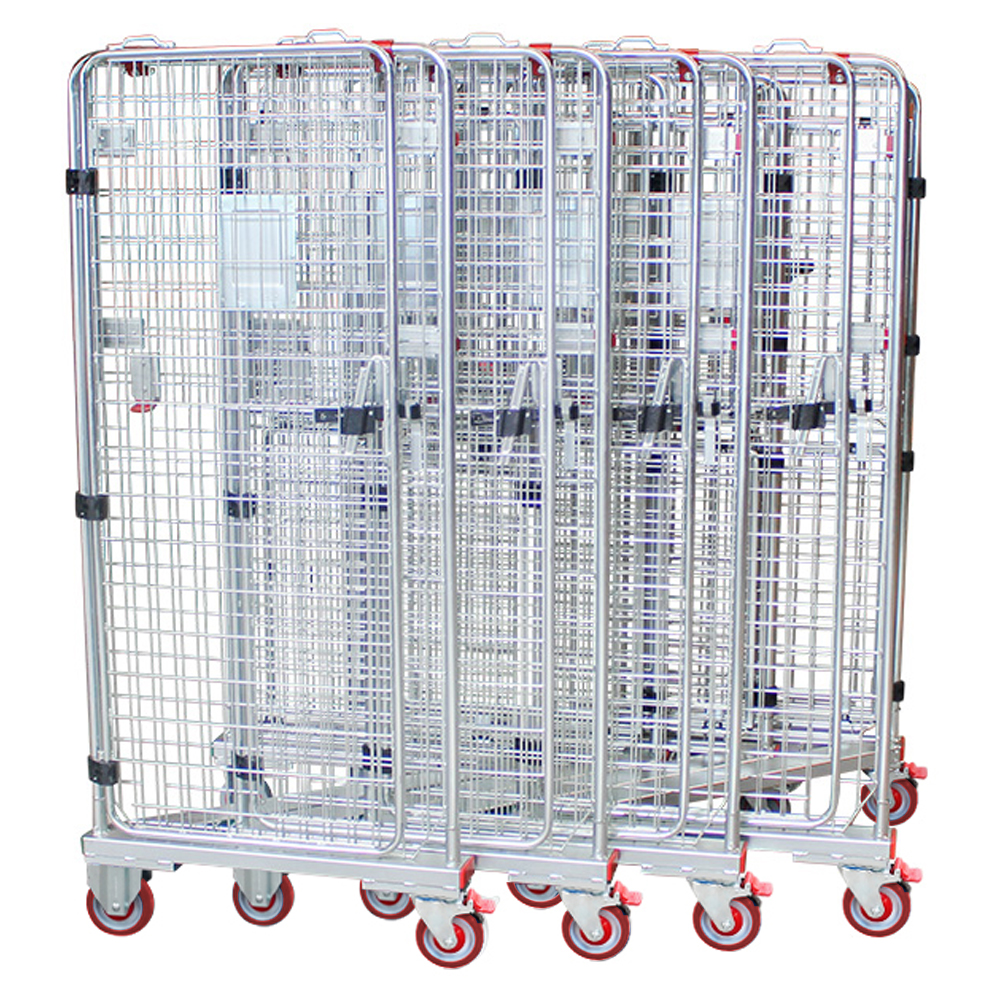

Z-Frame Base: Z-frame design for compact nesting in an offset pattern to minimise floor space during storage
High Load Capacity: Heavy duty cage with 500kg safe working load
Secure Transport and Storage: Smaller 50 x 90mm mesh size prevents smaller items from falling out of the cage and minimises the risk of item loss or theft

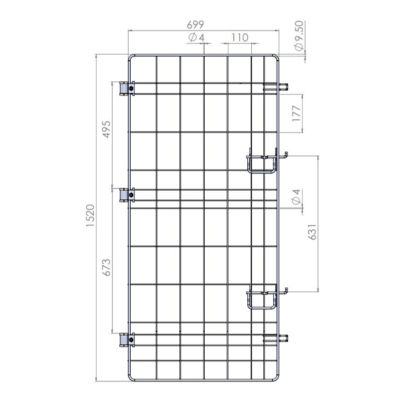

4-Sided Cage: Secure 4-sided enclosure protects goods in transit. Includes 1x full door, 2x half doors, and a mesh roof for secure transport and stock access
Mesh roof to secure goods: The mesh roof adds an extra layer of protection for containing goods during transport.
Includes fixed swing up shelf: For multi-level goods sorting. The shelf includes high quality hinges and can be raised out of the way when not required and back down when needed. Shelf capacity 250kg
Durable Steel Frame: Fully welded zinc-plated steel frame for corrosion and wear resistance
Improved Strength and OH&S: High quality steel hinges on all doors & latches are fully enclosed within a smooth plastic casing for improved OH&S

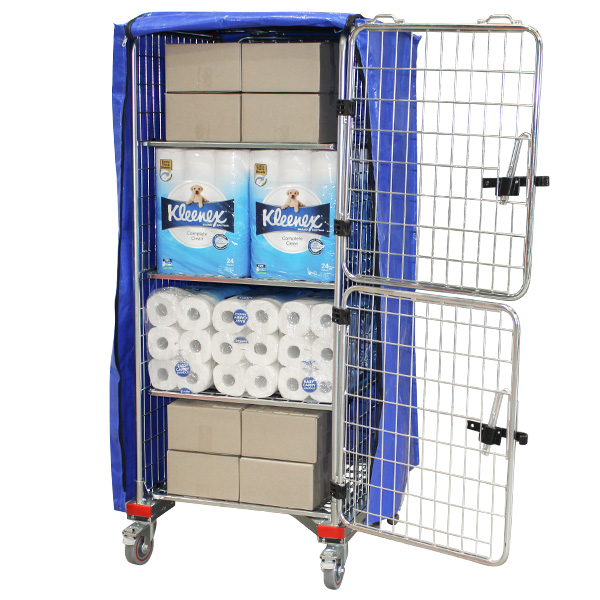

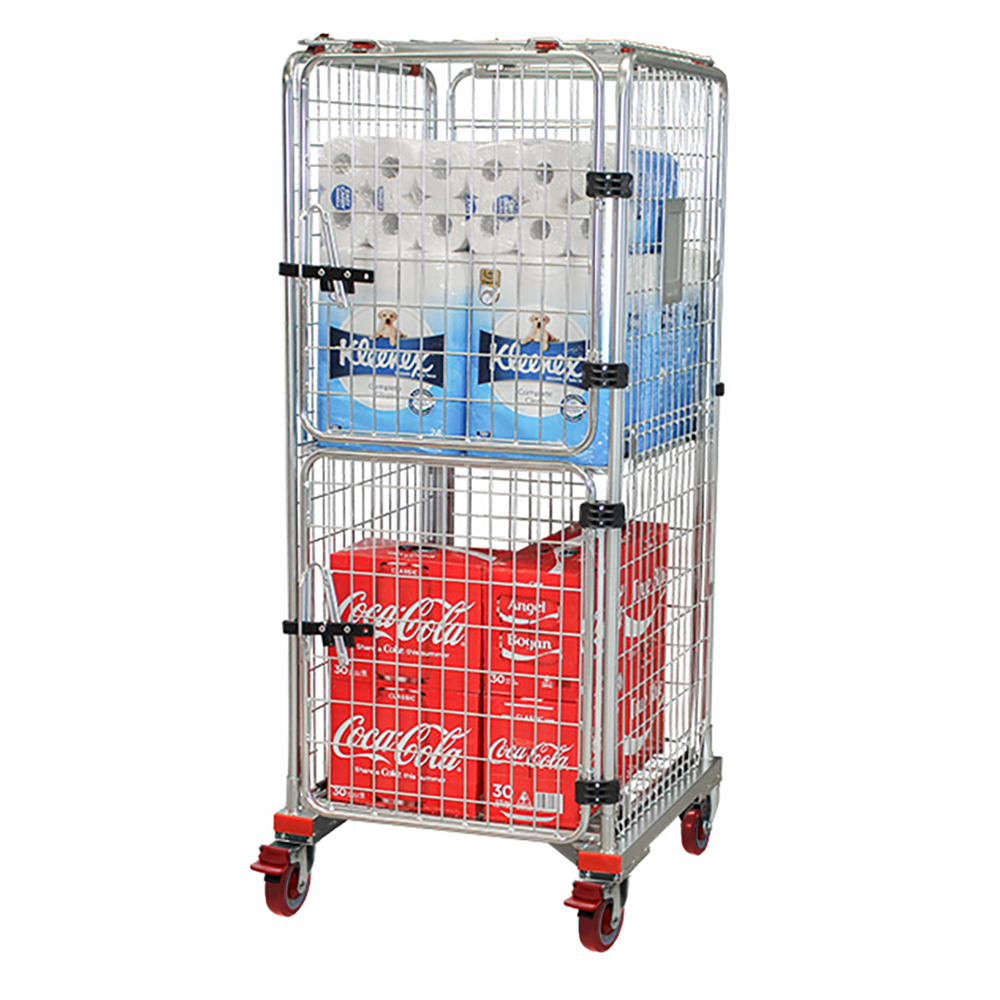

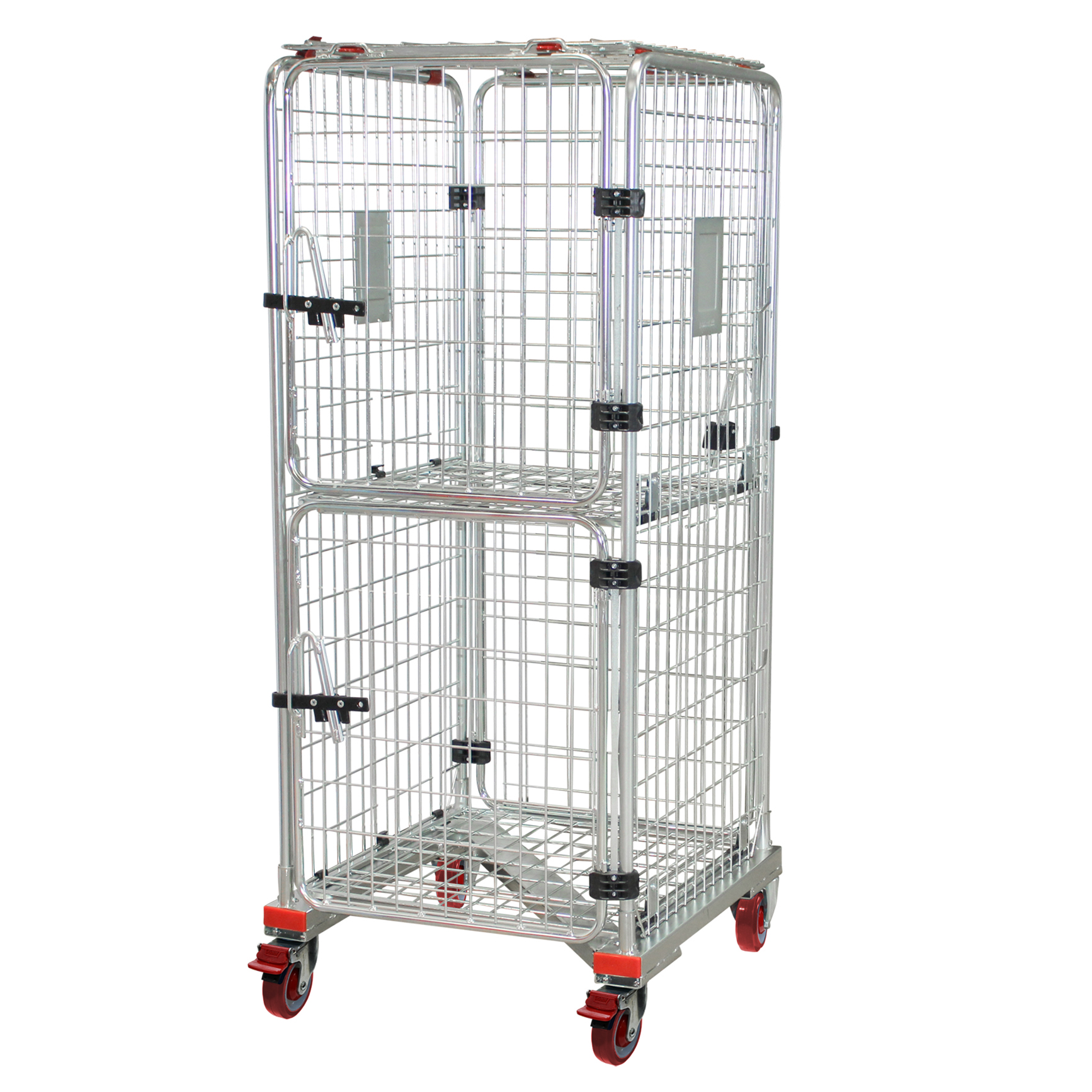

he RCR511 Security Roll Cage is a fully enclosed, heavy-duty trolley designed for secure transport of high-value goods, electronics, and sensitive stock. With four mesh sides, a hinged roof panel, and close-knit mesh panels, it offers maximum protection and containment in warehouse, logistics, retail, and commercial environments.

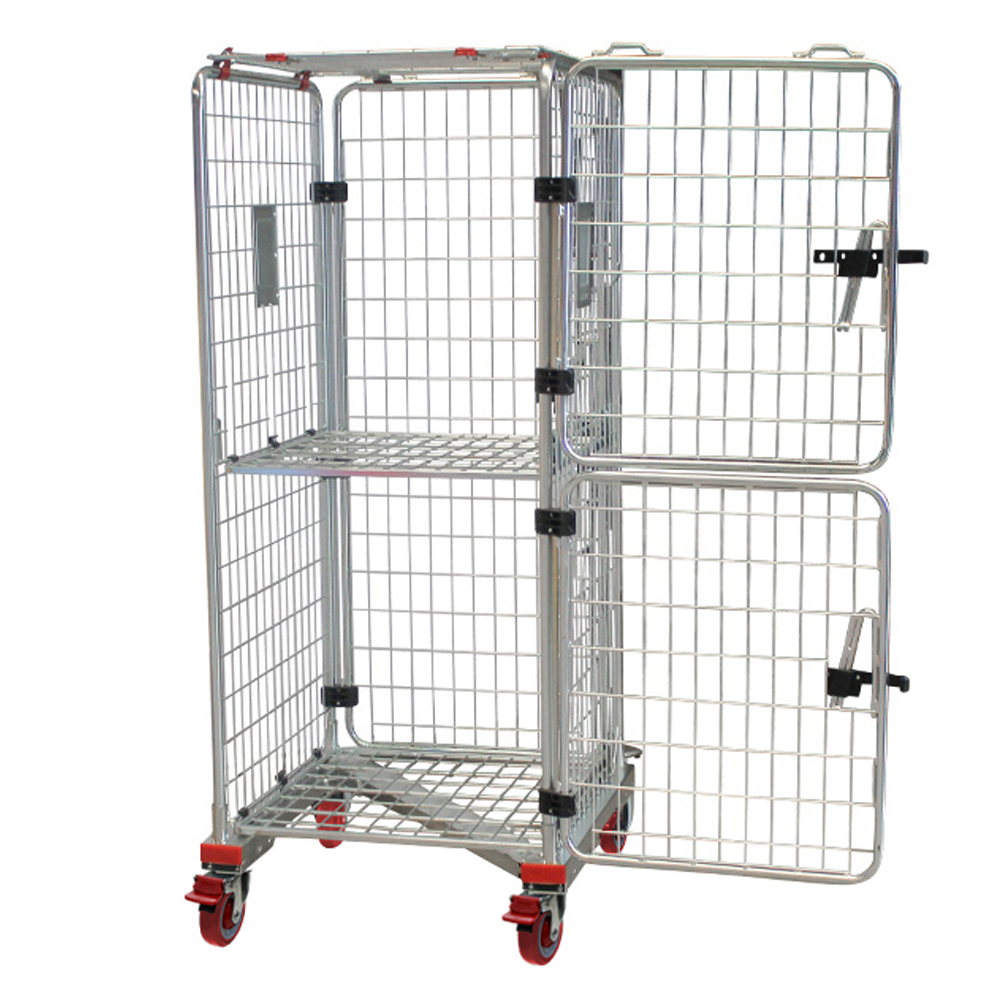

This model features a full-height swing door, two half-height swing doors, and a fold-up internal shelf – all secured with heavy-duty steel hinges enclosed in smooth plastic housings to enhance operator safety. The enclosed roof provides added protection during transit or storage.
The Z-base frame nests with other Z-base units to save space when not in use and is constructed from zinc-plated steel for corrosion resistance. The trolley is fitted with four 125mm rebound polyurethane castors – rwo rigid and two swivel with brakes – ensuring smooth, quiet operation and directional control on warehouse floors.
Delivered fully assembled and maintenance-friendly with bolt-on castors, the RCR511 is purpose-built for secure stock movement in fast-paced environments.
Product FAQs

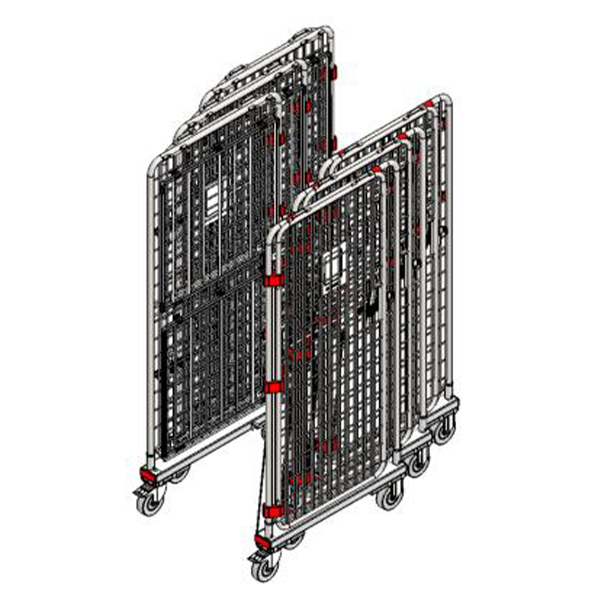

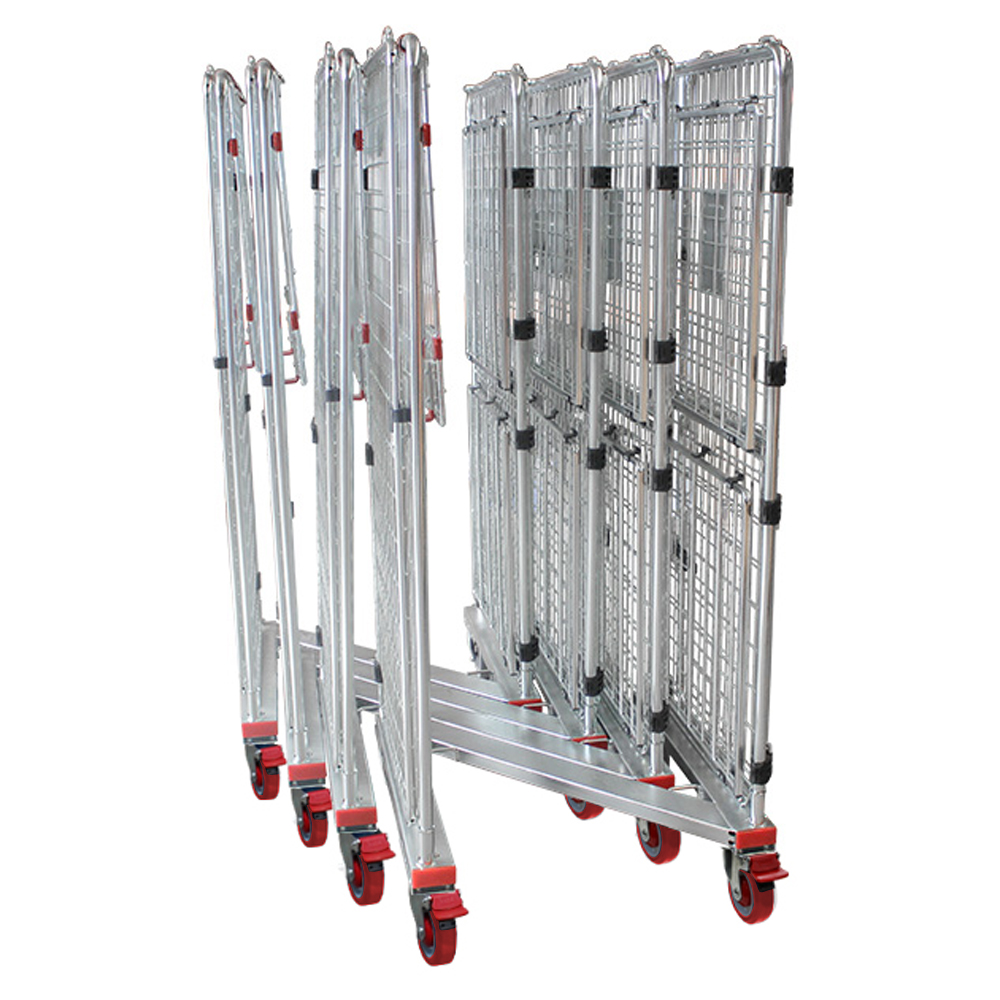

Yes. The Z-base design allows multiple cages to nest in an offset pattern with other z-base roll cages to minimise floor space required during storage.
Security roll cages are designed for higher protection and containment. They feature a smaller mesh size to prevent small items from falling out and to reduce the risk of tampering or unauthorised access or theft.
Unlike open-sided models, they include a full mesh roof and doors on all sides to fully enclose the load. Hinges and latches are also enclosed in smooth plastic casings to improve operater safety.

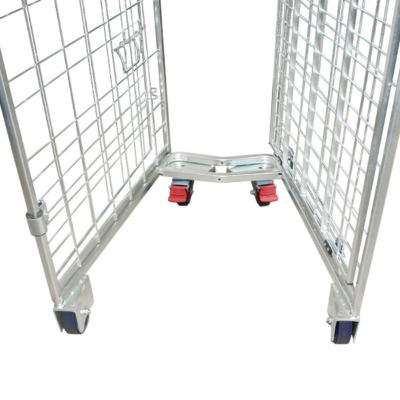

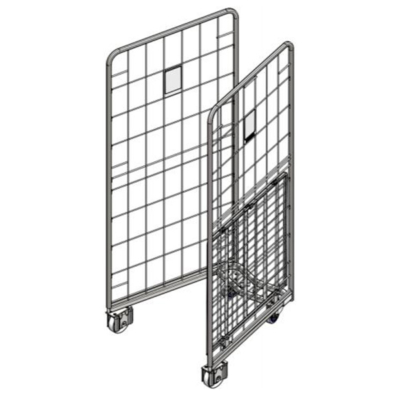

A-Base or H-Frame Roll Cages
The letter refers to the base/chassis frame – they are either an “A” or also known as “H” shape.

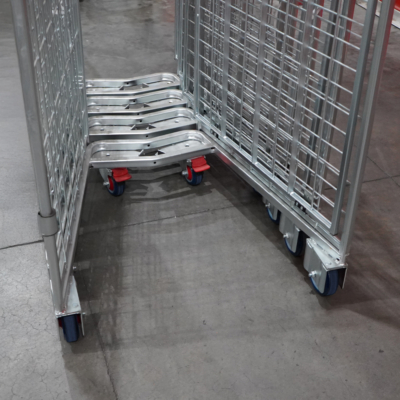

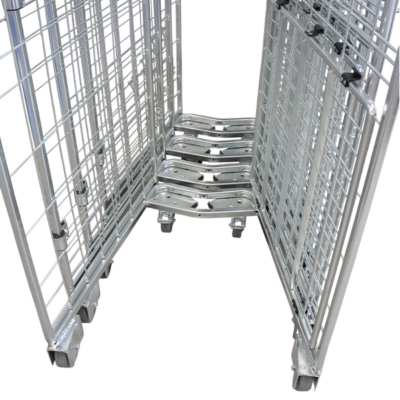

The “A” frame nest in a straight line for easy storage and transportation.
High quality design & manufacture with zinc plated finish.
Easily add extra shelves or accessories as required.
Multiple choice of wheel types available.

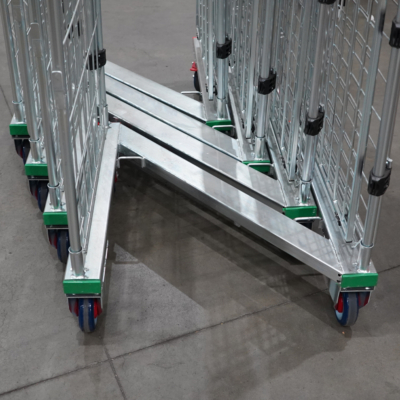

Z-Base Roll Cages
The base of the roll cages is in a “Z” shape and only nests with other “Z” base cages/trolleys.
High quality design & manufacture with zinc plated finish.
All door hinges & latches are enclosed within a smooth plastic casing for improved OH&S.
The castors of the “Z” base roll cages are all bolted to an underside channel – this allows the castors to be bolted on/off.

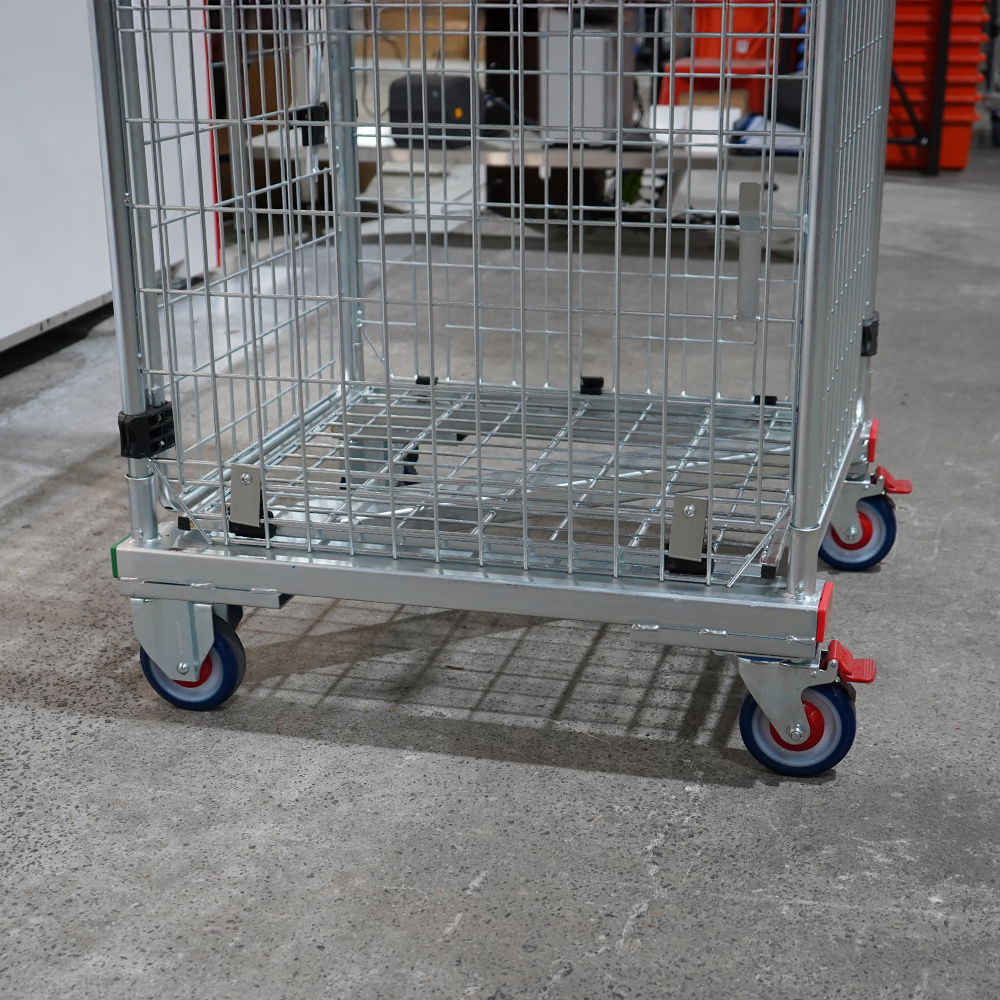

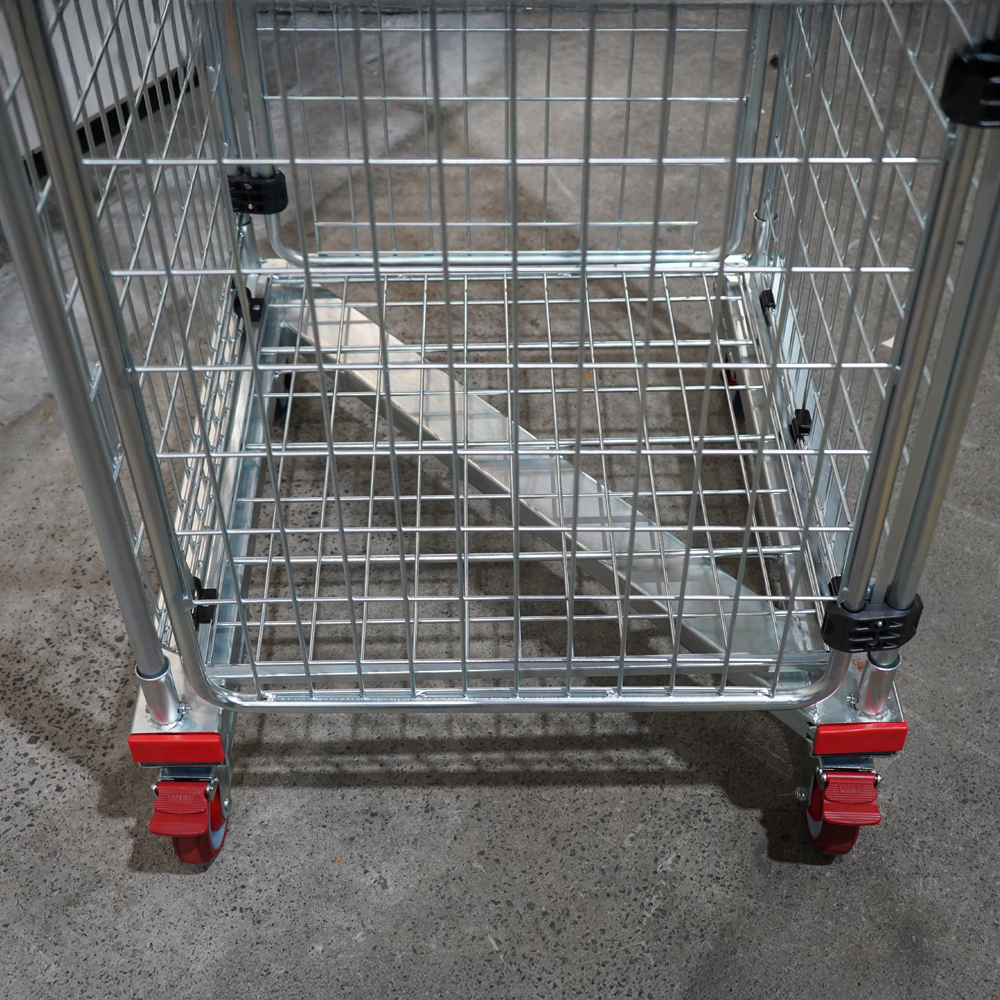

This cage uses rebound polyurethane wheels on the castors: 2 x 125mm rigid and 2 x 125mm swivel with brakes.
Yes. The RCR511 is supplied fully assembled and ready to use.

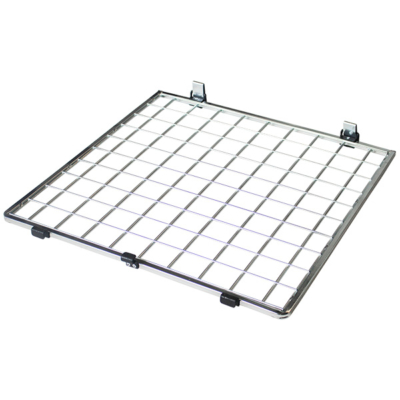

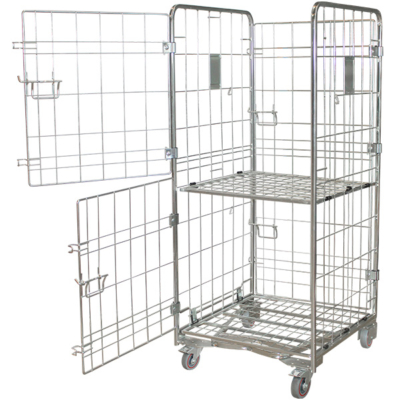

Yes. Optional fixed or removable shelving can be added depending on your handling needs.

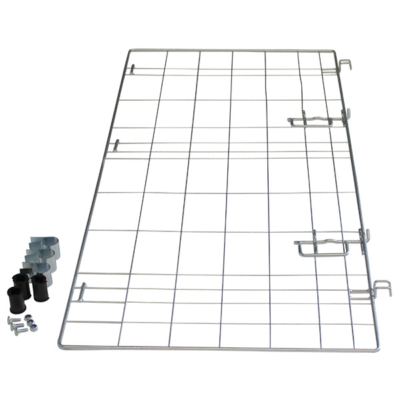

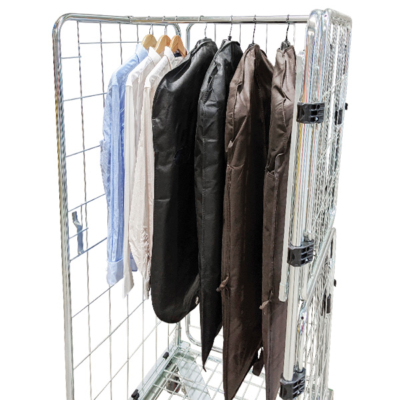

A range of other roll cage accessories including inserts, covers and more are available to upgrade your stock handling and sorting requirements.
