88mm Recessed Gate Track Wheel (GTR004)

$23.86 ex. GST
$26.25 inc. GST

International Shipping Available

Estimeted Freight Cost

Use my location

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

88mm recessed gate wheel with double bearings and a 250kg capacity, designed for sliding gates using GTR010 track.

  • Recessed mounting: Mounts into the bottom of the gate for a low gate profile, with part of the wheel assembly housed inside the frame.
  • Sliding gate use: Supports the gate as it rolls along the track to open and close.
  • Double bearing design: Two ball bearings support the wheel as it rotates, helping maintain smooth rolling movement as the gate opens and closes.
  • GTR010 track compatibility: The 20.5mm C-groove profile suits the rounded running surface of the GTR010 gate track.
  • Gold zinc plated finish: Gold zinc plating on the wheel and housing helps protect the assembly from rust.
  • 128mm mounting hole centres: The 152mm mounting bracket has two 9mm holes on 128mm centres for checking alignment with the gate mounting points.

88mm recessed gate wheel with double bearings and a 250kg capacity, designed for sliding gates using GTR010 track.

  • Recessed mounting: Mounts into the bottom of the gate for a low gate profile, with part of the wheel assembly housed inside the frame.
  • Sliding gate use: Supports the gate as it rolls along the track to open and close.
  • Double bearing design: Two ball bearings support the wheel as it rotates, helping maintain smooth rolling movement as the gate opens and closes.
  • GTR010 track compatibility: The 20.5mm C-groove profile suits the rounded running surface of the GTR010 gate track.
  • Gold zinc plated finish: Gold zinc plating on the wheel and housing helps protect the assembly from rust.
  • 128mm mounting hole centres: The 152mm mounting bracket has two 9mm holes on 128mm centres for checking alignment with the gate mounting points.

Description

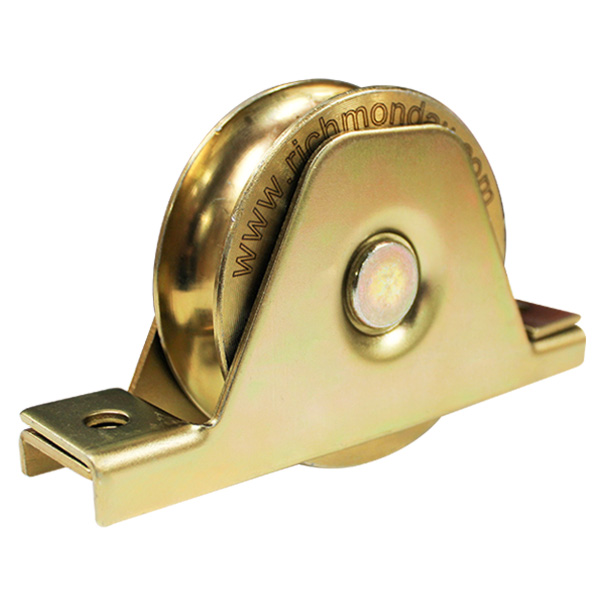

The Richmond GTR004 is an 88mm recessed track wheel for sliding gates running on the GTR010 gate track. The housing fits into the bottom of the gate, placing part of the wheel assembly inside the frame for a low gate profile. The product has a 250kg capacity.

The C-groove provides a smooth, consistent rolling action along the track. Its 20.5mm groove profile runs on the curved top of the GTR010 gate track. Double ball bearings support the wheel as it rotates, while gold zinc plating on both the wheel and housing helps protect the assembly from rust.

The mounting bracket measures 152mm long and has two 9mm holes on 128mm centres. With a recessed assembly, check the available space inside the bottom of the gate as well as the position of the mounting points.

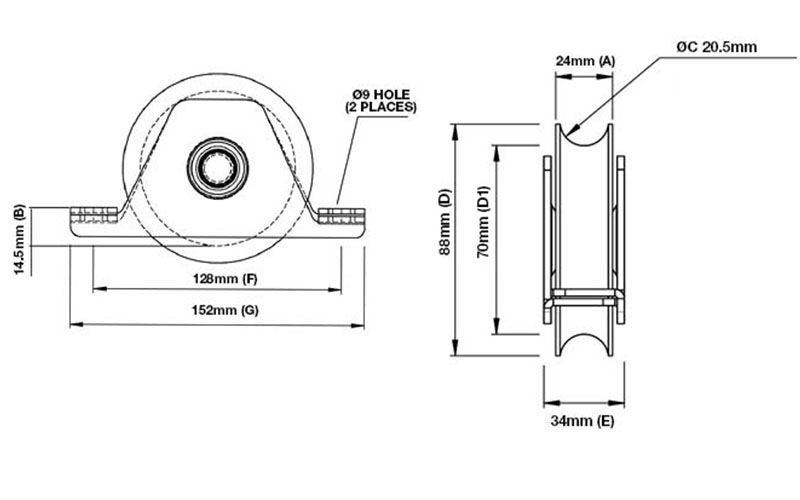

For replacement work, compare the 24mm wheel width and 34mm overall housing width with the existing assembly. Use the dimensioned drawing to check the complete mounting arrangement before choosing a replacement. Installed gate clearance depends on the track and how the wheel assembly is fitted.

Product FAQs

The GTR004 mounts into a recess in the bottom of the gate, with part of the assembly housed inside the frame. This gives a lower gate profile than a wheel mounted entirely beneath the frame. The gate needs enough internal space for the housing and clearance for the wheel to turn.

The GTR004 suits the GTR091, GTR010 and GTR046 gate tracks. Its rounded C-groove has a 20.5mm profile diameter and follows the track’s rounded running surface as the gate moves.

The bracket is 152mm long and has two 9mm mounting holes on 128mm centres. Also check the 88mm wheel diameter, 24mm wheel width and 34mm overall housing width against the gate’s recess. Matching the mounting points alone does not establish that the housing will fit.

The finished clearance depends on how far the assembly sits inside the gate frame and the track used. Use the dimensioned drawing to check the recess and mounting position together. The wheel diameter alone does not give the gap beneath the installed gate.

The GTR004 has a gold zinc plated wheel and housing to help protect the assembly from rust. Two ball bearings support the wheel as it turns, helping maintain smooth movement along the track.

Video

Capacity 250kg
Finish Gold zinc plated wheel and housing
Bearing design Double precision ball bearing
Mounting Type Recessed into the bottom of the gate
Compatible track GTR010
Groove profile C groove
Wheel width (A) 24mm
Dimension (B) 14.5mm
Groove profile diameter (C) 20.5mm
Wheel outer diameter (D) 88mm
Wheel groove diameter (D1) 70mm
Overall housing width (E) 34mm
Mounting hole centres (F) 128mm
Mounting bracket length (G) 152mm
Mounting holes 2 x 9mm diameter
