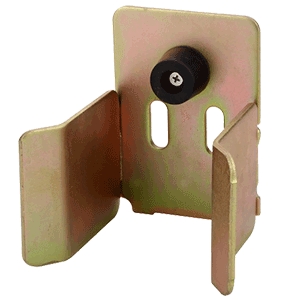

Sliding gate end catch with a rubber stopper and angled guide tabs, suitable for gates up to 80mm wide.
Gates up to 80mm wide: Accepts sliding gates within the stated maximum opening width.
Angled guide tabs: Help direct the gate into the catch as it approaches the stopping position.
Rubber stopper: Provides a rubber contact face at the end of the gate’s travel.
Gold zinc plated steel frame: Supports the catch and rubber stopper, with zinc plating to help protect the frame from rust.
Manual and automatic gates: Suitable for end-stop arrangements on both manual and automatic sliding gates.
Description
The Richmond GTR019 is a sliding gate end catch for gates up to 80mm wide. Its angled tabs help guide the gate into the catch, where the rubber stopper provides the contact face at the stopping position.
The catch has a gold zinc plated steel frame and suits both manual and automatic sliding gates. The tabs guide the approaching gate, while the rubber stopper receives the end of the gate once it is in position.
Check the gate width where it enters the catch, including any parts that need to pass between the tabs. Align the catch with the gate’s travel so the gate enters between the guides and meets the rubber stopper. Use the specification drawing to check the mounting layout and available space.
Maximum gate width
80mm
Gate operation
Manual and automatic sliding gates
Frame Material
Steel
Frame finish
Gold zinc plated
Stopper material
Rubber
Guide arrangement
Angled tabs
Overall height
130mm
Overall depth
100mm
Side height
80mm
Straight-side depth
75mm
Steel thickness
4mm
