78mm Bottom Mount Gate Track Wheel (GTR001)

$22.80 ex. GST
$25.08 inc. GST

International Shipping Available

Estimeted Freight Cost

Use my location

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

78mm bottom mount gate wheel with double bearings and a 250kg capacity, designed for sliding gates using GTR010 track.

  • Bottom mount assembly: Bolts flat to the underside of the gate, keeping the wheel below the frame without a recessed housing.
  • Sliding gate use: Supports manual and automatic sliding gates as they roll along the track to open and close.
  • Double bearing design: Two bearings support the wheel as it rotates, helping maintain smooth rolling movement as the gate opens and closes.
  • GTR010 track compatibility: The 20.5mm C-groove profile suits the rounded running surface of the GTR010 gate track.
  • Zinc plated finish: Zinc plating helps protect the wheel assembly from rust.
  • 70mm mounting hole centres: The 100mm mounting bracket has 70mm hole centres for checking alignment with the gate mounting points.

78mm bottom mount gate wheel with double bearings and a 250kg capacity, designed for sliding gates using GTR010 track.

  • Bottom mount assembly: Bolts flat to the underside of the gate, keeping the wheel below the frame without a recessed housing.
  • Sliding gate use: Supports manual and automatic sliding gates as they roll along the track to open and close.
  • Double bearing design: Two bearings support the wheel as it rotates, helping maintain smooth rolling movement as the gate opens and closes.
  • GTR010 track compatibility: The 20.5mm C-groove profile suits the rounded running surface of the GTR010 gate track.
  • Zinc plated finish: Zinc plating helps protect the wheel assembly from rust.
  • 70mm mounting hole centres: The 100mm mounting bracket has 70mm hole centres for checking alignment with the gate mounting points.

Description

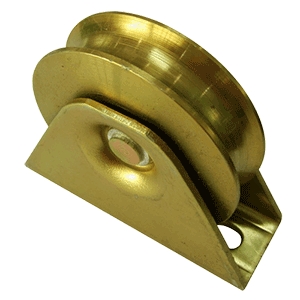

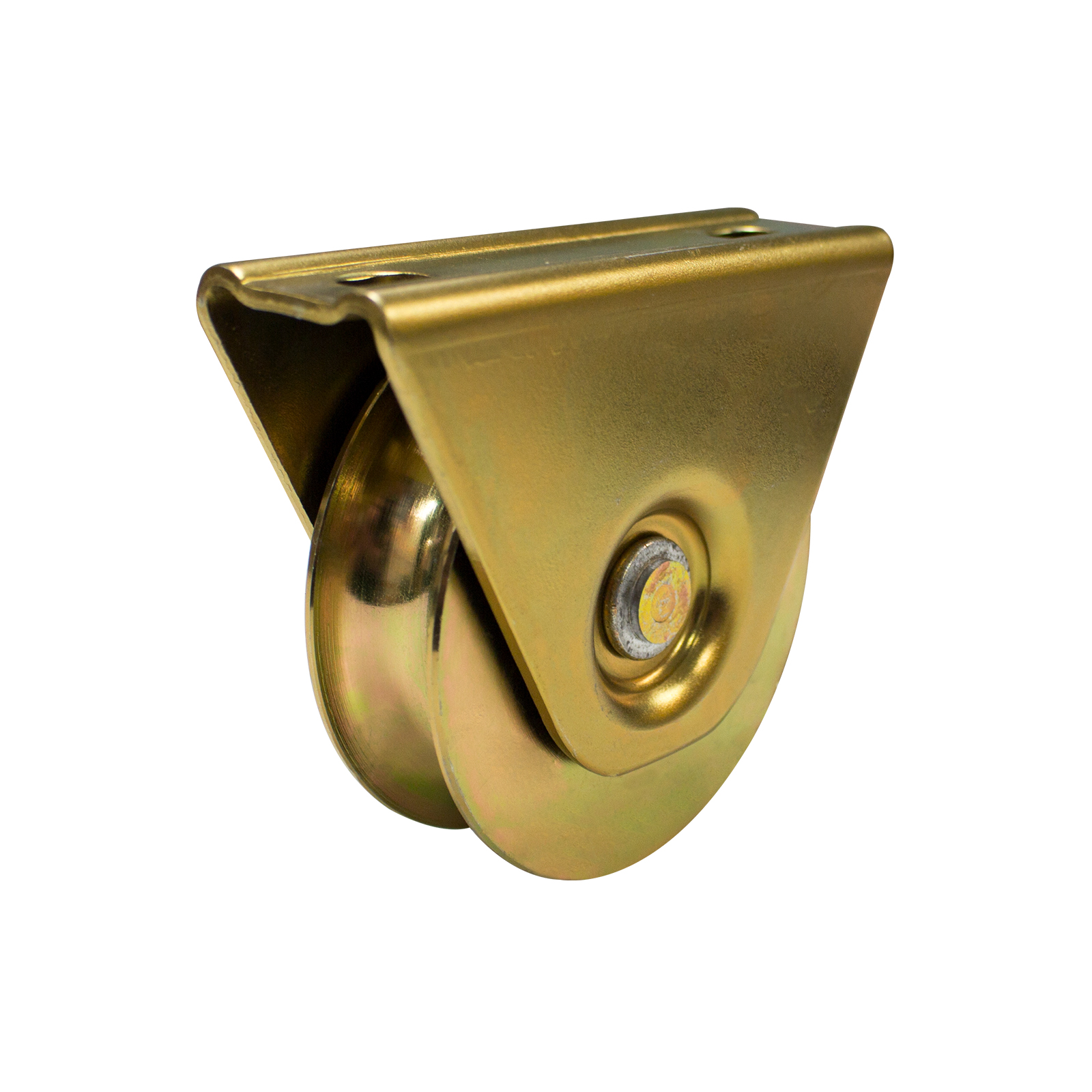

The Richmond GTR001 is a bottom mount track wheel for manual and automatic sliding gates. It combines a 78mm wheel with a mounting bracket that bolts flat to the underside of the gate. The product has a 250kg capacity and suits the GTR010 gate track.

The precision machined wheel provides a smooth, consistent rolling action along the track. Its rounded C-groove has a 20.5mm profile diameter and runs on the curved top of the GTR010 gate track. Double ball bearings support the wheel as it rotates, while zinc plating helps protect the assembly from rust.

The bottom mount arrangement keeps the wheel below the gate frame, so the housing does not need to be recessed into the gate. The assembly measures 85mm from the mounting face to the bottom of the wheel, so this dimension is useful when checking the space available beneath the gate. Installed gate clearance also depends on the track and the gate setup.

The GTR001 has a 100mm mounting bracket with 70mm hole centres, a 35mm overall housing width and a 23mm wheel width. Check these measurements against the existing assembly and gate mounting points before choosing a replacement.

Product FAQs

Yes. The GTR001 supports both manual and automatic sliding gates as they move along the track. Its bracket bolts flat beneath the gate, so the assembly does not need to be recessed into the frame.

The GTR001 suits the GTR091, GTR010 and GTR046 gate tracks. Its rounded C-groove has a 20.5mm profile diameter and follows the track’s rounded running surface as the gate opens and closes.

Check the 100mm bracket length, 70mm mounting hole centres and 35mm overall housing width against the gate’s mounting points. The wheel is 78mm in diameter and 23mm wide. Allow for the 85mm assembly height when checking the space beneath the gate.

The 85mm dimension runs from the bracket mounting face to the bottom of the wheel. It is the overall assembly height, not the finished gap between the gate and the ground. The track height and installation arrangement also affect that clearance.

The GTR001 has a zinc plated finish to help protect the assembly from rust. Its double bearing design supports the wheel as it rotates, helping the gate roll smoothly along the track.

Capacity 250kg
Finish Zinc plated
Bearing design Double precision ball bearing
Mounting Type Bolts flat to the bottom of the gate
Compatible track GTR010
Gate operation Manual and automatic sliding gates

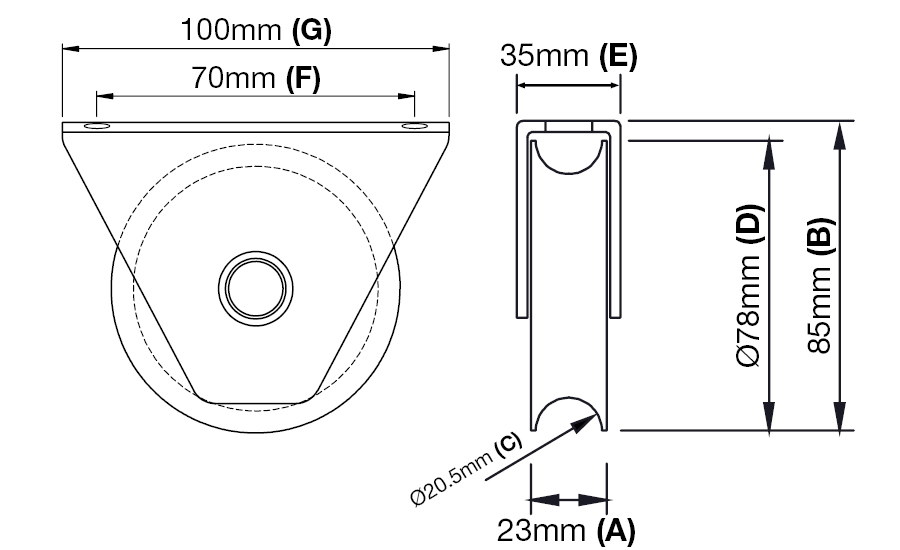

Wheel width (A) 23mm
Overall assembly height (B) 85mm
Groove profile diameter (C) 20.5mm
Wheel outer diameter (D) 78mm
Wheel groove diameter (D1) 60mm
Overall housing width (E) 35mm
Mounting hole centres (F) 70mm
Mounting bracket length (G) 100mm
