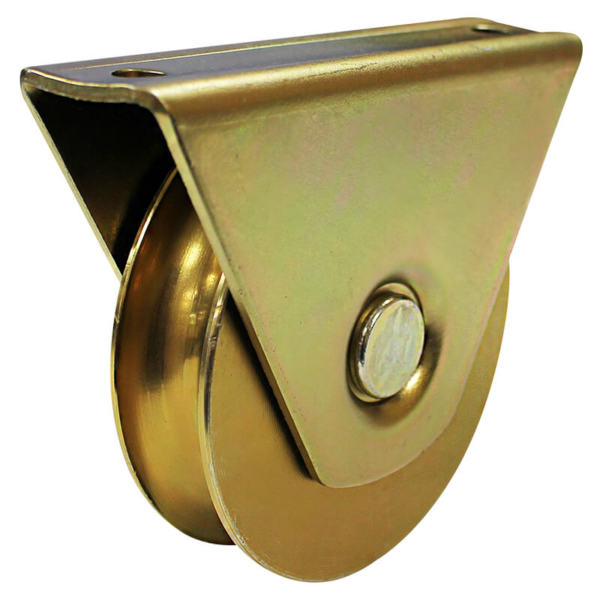

98mm bottom mount gate wheel with double ball bearings and a 250kg capacity, designed for sliding gates using GTR010 track.
Bottom mount assembly: Bolts flat to the underside of the gate, keeping the wheel below the frame without a recessed housing.
Sliding gate use: Supports manual and automatic sliding gates as they roll along the track to open and close.
Double bearing design: Two ball bearings support the wheel as it rotates, helping maintain smooth rolling movement.
GTR010 track compatibility: The 20.5mm groove profile suits the GTR010 gate track.
Zinc plated finish: Zinc plating helps protect the wheel assembly from rust.
105mm mounting hole centres: The 130mm mounting bracket has 105mm hole centres for checking alignment with the gate mounting points.
Description
The Richmond GTR093 is a bottom mount track wheel for manual and automatic sliding gates. It combines a 98mm wheel with a mounting bracket that bolts flat to the underside of the gate. The product has a 250kg capacity and suits the GTR010 gate track.
The precision machined wheel provides a smooth, consistent rolling action along the track. Double ball bearings support the wheel as it rotates, while zinc plating helps protect the assembly from rust. The groove profile diameter is 20.5mm.
The bottom mount arrangement keeps the wheel below the gate frame, so the housing does not need to be recessed into the gate. The assembly measures 106mm from the mounting face to the bottom of the wheel. Check this dimension when allowing space beneath the gate, along with the track and the installation arrangement.
The GTR093 has a 130mm mounting bracket with 105mm hole centres, a 36mm overall housing width and a 23mm wheel width. Check these measurements against the gate frame and mounting points when planning an installation or replacing an existing assembly.
Product FAQs
Yes. The GTR093 supports both manual and automatic sliding gates as they move along the track. Its bracket bolts flat beneath the gate, so the assembly does not need to be recessed into the frame.
The GTR093 suits the GTR091, GTR010 and GTR046 gate tracks. Its rounded C-groove has a 20.5mm profile diameter and follows the track’s rounded running surface as the gate opens and closes.
Check the 130mm bracket length, 105mm mounting hole centres and 36mm overall housing width against the gate’s mounting points. The wheel is 98mm in diameter and 23mm wide. Allow for the 106mm assembly height when checking the space beneath the gate.
The 106mm dimension runs from the bracket mounting face to the bottom of the wheel. It is the overall assembly height, not the finished gap between the gate and the ground. The track height and installation arrangement also affect that clearance.
The GTR093 has a zinc plated finish to help protect the assembly from rust. Its double bearing design supports the wheel as it rotates, helping the gate roll smoothly along the track.
