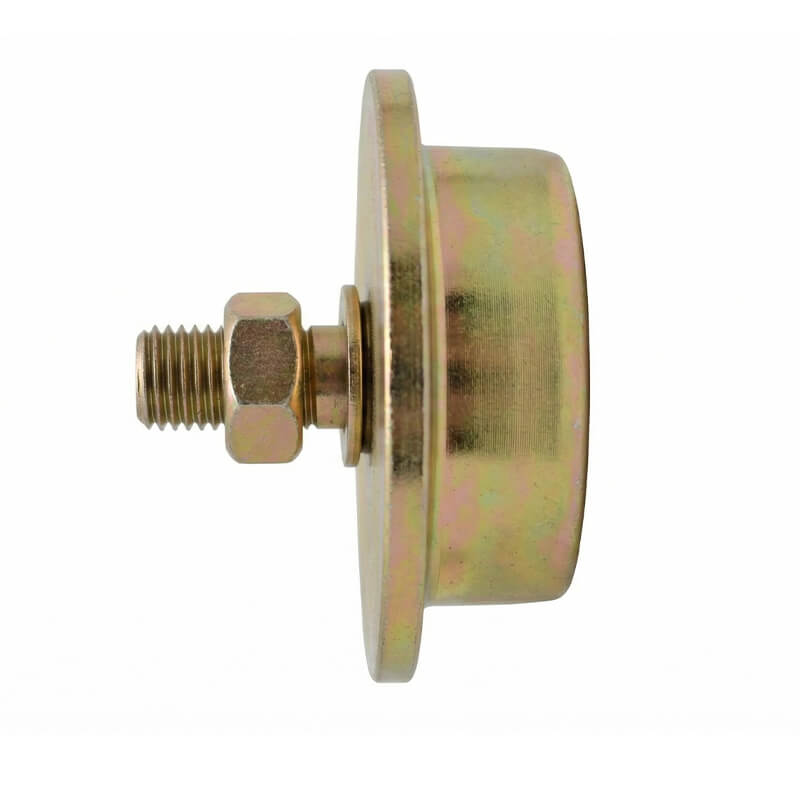

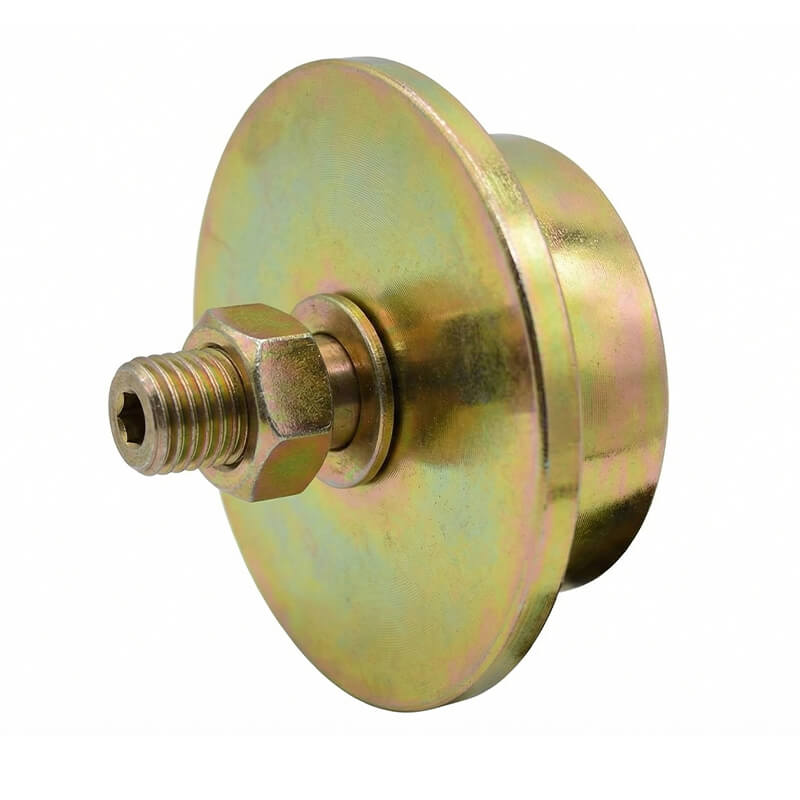

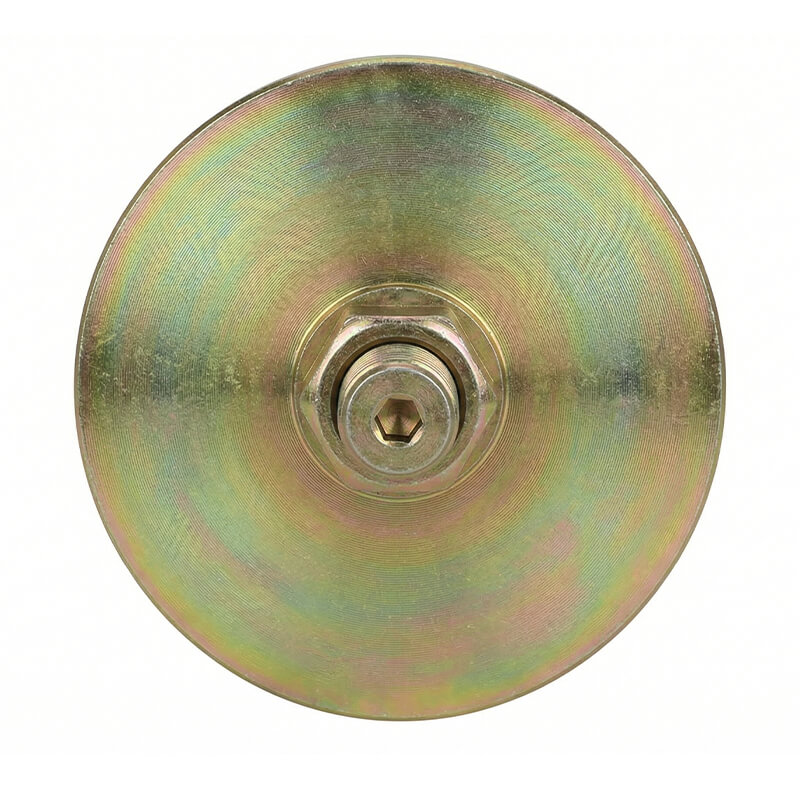

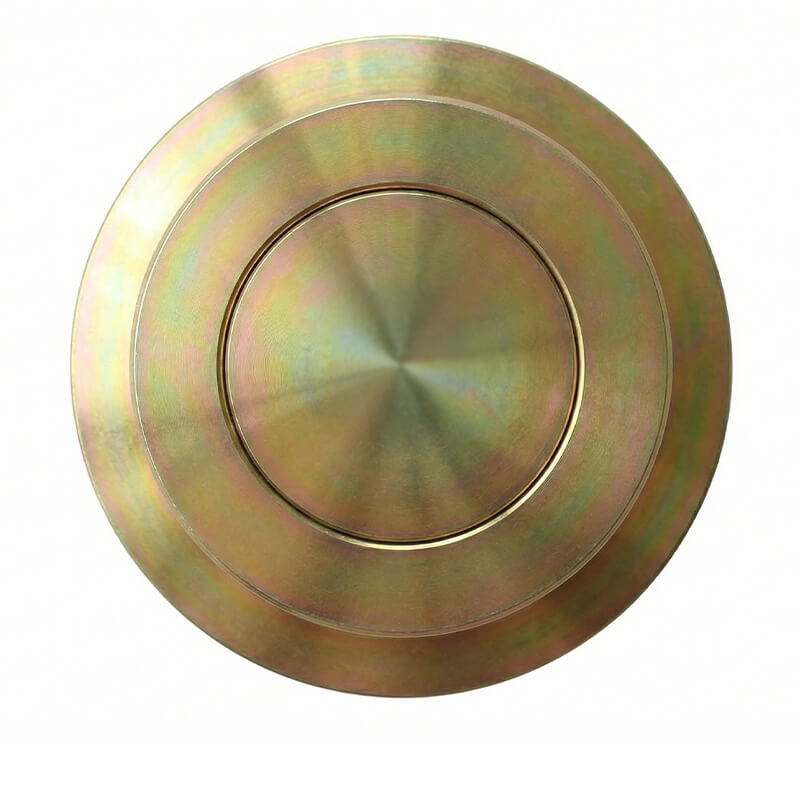

88mm Beam Trolley Track Wheel 20mm Axle Diameter (BT088)

$71.45 ex. GST
$78.60 inc. GST

Available Online

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

Beam trolley wheels are often seen on overhead cranes and carriages, movable platforms, construction, assembly lines, storage systems, heavy duty applications, building applications and manufacturing process systems. Our standard range of beam trolley wheels has been designed to fit standard channel and beam sections.

  • Wheel: 88mm diameter x 27mm wide rim
  • Flange: 116mm diameter x 8mm wide flange
  • M20 axle bolt with hexagon recess for reliable adjustment
  • 250kg Load Capacity
  • Black painted SG Iron finish
  • Double row angular contact ball bearings for increased the load capacity and side loading capacity compared to traditional beam trolley wheels with single row ball bearings.

We can also custom manufacture beam trolley wheels to suit your application. Contact our expert team for more information

Product Code BT088
Wheel Diameter (mm) 88
Rim Width (mm) 27
Flange Diameter (mm) 116
Flange Width (mm) 8
Material SG Iron
Axle Thread M20
Load Capacity (kg) 250
Download CAD Drawing (STEP file) Download
