50mm Nylon Wheel 30kg Capacity Castor (S2712B)

$5.53 ex. GST

$6.08 inc. GST

Available Online

International Shipping Available

Estimeted Freight Cost

Delivery & Handling

Use my location

Click & Collect

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

Estimated Freight Cost

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

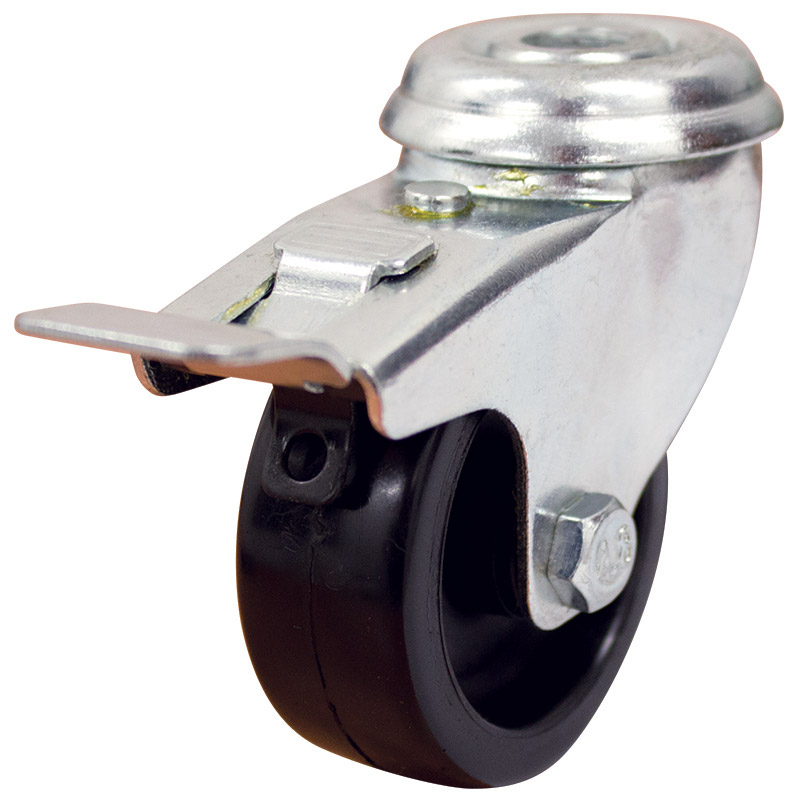

The S2712B from Richmond Rolling Solutions is a swivel frame castor and features a nylon wheel. This swivel castor is one of our utility series range and has a top load capacity of 30kg. The S2712B uses plain bearings for wheel rotation. The swivel frame design of this castor allows full swivel rotation to enable steering. The outside diameter of the nylon wheel is 50mm, the wheel width is 20mm. To order this castor without a brake, search for S2712.

View Specifications View Specifications Shipping Information

Description

A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance. Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction.

Product FAQs

Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.

These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat). See part number 100RED1008UTI.

Addon Components

Addons for your 50mm Nylon Wheel 30kg Capacity Castor (S2712B). Click the product that you’re interested in for more info.

Expanding Pintle For 19mm ID Round Tube - M10 x 90mm Bolt (UTI10-P1)

(069UTIPRD19-M10)

Expanding Pintle For 22mm ID Round Tube - M10 x 90mm Bolt (UTI10-P2)

(069UTIPRD22-M10)

Expanding Pintle For 28.5mm ID Round Tube - M10 x 90mm Bolt (UTI10-P3)

(069UTIPRD28-M10)

Expanding Pintle For 19mm Internal Square Tube - M10 x 90mm Bolt (UTI10-P4)

(069UTIPSQ19-M10)

Expanding Pintle For 22mm Internal Square Tube - M10 x 90mm Bolt (UTI10-P5)

(069UTIPSQ22-M10)

Expanding Pintle For 28.5mm Internal Square Tube - M10 x 90mm Bolt (UTI10-P6)

(069UTIPSQ28-M10)

Grip Neck Pintle Parts For 10mm Bolt Hole Castors (124PINTLE-M10GN)

(124PINTLE-M10GN)

Wire Clip Pintle Parts For 10mm Bolt Hole Castors (124PINTLE-M10WC)

(124PINTLE-M10WC)

10mm Top Hat (Bore Reducer) to suit 6mm Fittings (RED1006UTI)

(100RED1006UTI)

10mm Top Hat (Bore Reducer) to Suit 8mm Fittings – (RED1008UTI)

(100RED1008UTI)

Product Code	S2712B
Wheel Diameter (mm)	50
Frame Type	Swivel with Brake
Wheel Width (mm)	20
Wheel Type	Nylon
Wheel Code	NY900
Wheel Bearing Type	Plain Bore
Castor Height (mm)	68
Swivel Radius (mm)	75
Bolt Hole Size (mm)	10
Maximum Load Capacity (kg)	30
Recommended Load Capacity (kg)	20
