Home / Castors For All Applications / Utility Series Castors / Utility Bolt Mount / 100mm Rubber Wheel 70kg Capacity Castor (S4714)
100mm Rubber Wheel 70kg Capacity Castor (S4714)

100mm Rubber Wheel 70kg Capacity Castor (S4714)

Frame Type: Swivel

$14.70 ex. GST
$16.17 inc. GST

International Shipping Available

Estimeted Freight Cost

Use my location

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

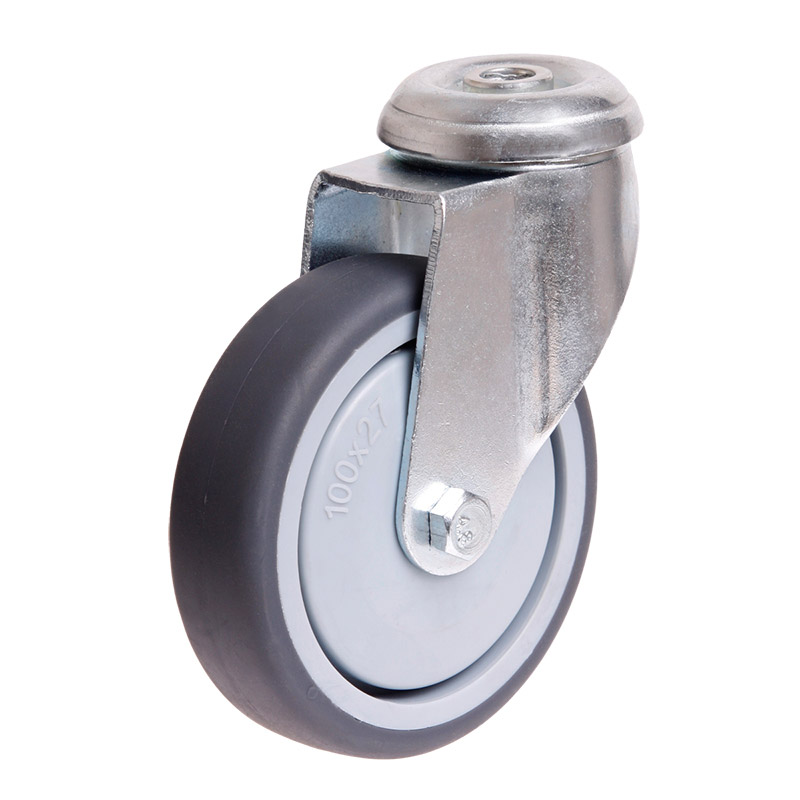

The S4714 from Richmond Rolling Solutions is a swivel frame castor and has a institutional rubber wheel. This swivel castor is one of our utility series range and can safely take loads up to 70kg. The S4714 is assembled with ball bearings on the castors axle. The swivel frame design of this castor permits the load to be steered. The diameter of the institutional rubber wheel is 100mm, the wheel width is 25mm and you can order separately (Part Number: iR4401). For the same castor with a brake, see S4714B.

View Specifications View Specifications Shipping Information



The S4714 from Richmond Rolling Solutions is a swivel frame castor and has a institutional rubber wheel. This swivel castor is one of our utility series range and can safely take loads up to 70kg. The S4714 is assembled with ball bearings on the castors axle. The swivel frame design of this castor permits the load to be steered. The diameter of the institutional rubber wheel is 100mm, the wheel width is 25mm and you can order separately (Part Number: iR4401). For the same castor with a brake, see S4714B.

Description

Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

Product FAQs

Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.

These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat).  See part number 100RED1008UTI.

Product Code S4714
Wheel Diameter (mm) 100
Frame Type Swivel
Wheel Width (mm) 25
Wheel Type Institutional Rubber
Wheel Code IR4401
Wheel Bearing Type Ball Bearing
Castor Height (mm) 131
Swivel Radius (mm) 90
Maximum Load Capacity (kg) 70
Recommended Load Capacity (kg) 60
Frame Construction Pressed Metal
Frame Material Zinc Plated Steel
Mounting Type Bolt-Hole Mount
Bolt Hole Size (mm) 10
Utility Series Bolt Hole Castors Spec Sheet Download
Download CAD Drawing (STEP file) Download

Shipping Information

Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.

Shipping will be calculated at checkout.

For more information on our freight charges, click & collect locations, and more
view our online shipping policy

*Not all items are available for purchase online.
