75mm Rubber Wheel 50kg Capacity Castor (S3714)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

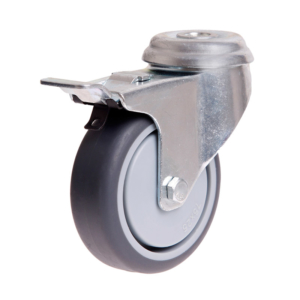

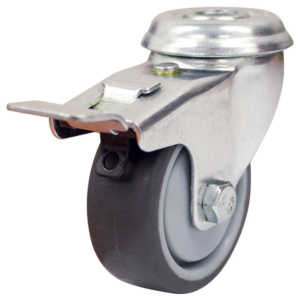

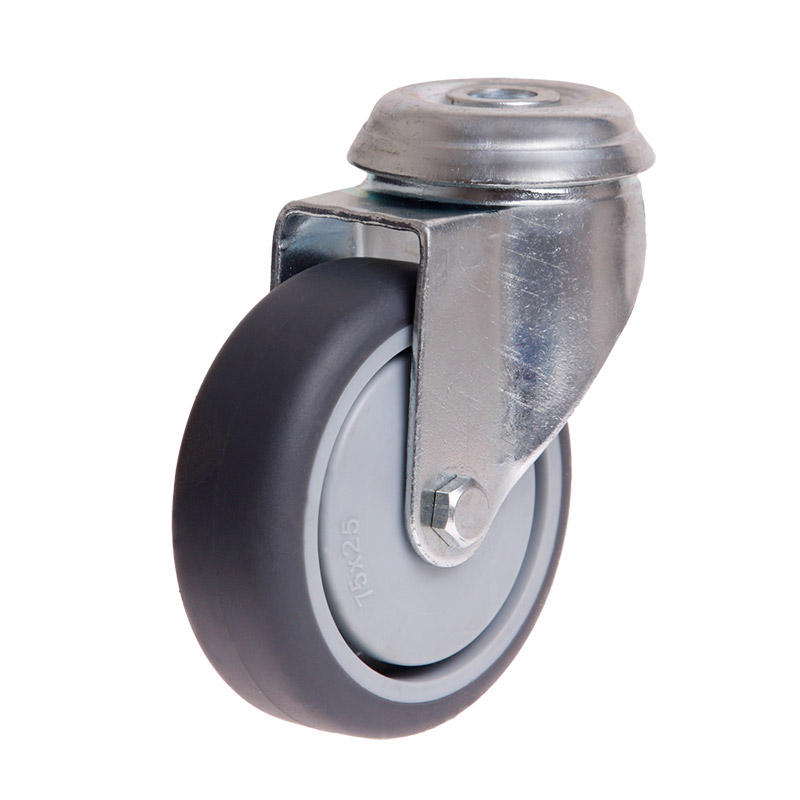

The S3714 from Richmond is a swivel frame castor and uses an institutional rubber wheel. This swivel castor is one of our utility series range and has a maximum capacity of 50kg. The S3714 uses ball bearings for wheel rotation. The swivel frame allows the castor to swivel 360°. The overall institutional rubber wheel diameter is 75mm, the wheel width is 25mm and you can order separately (Part Number: IR3301). To order this castor with a brake, search for S3714B.


Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.

Product Code S3714
Wheel Diameter (mm) 75
Frame Type Swivel
Wheel Width (mm) 25
Wheel Type Institutional Rubber
Wheel Code IR3301
Wheel Bearing Type Ball Bearing
Castor Height (mm) 98
Swivel Radius (mm) 65
Bolt Hole Size (mm) 10
Maximum Load Capacity (kg) 50
Recommended Load Capacity (kg) 40
Utility Series Bolt Hole Castors Spec Sheet Download
Download CAD Drawing (STEP file) Download
10mm Bolt Hole

10mm Bolt Hole



Shipping Information

Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.

Shipping will be calculated at checkout.

For more information on our freight charges, click & collect locations, and more
view our online shipping policy

*Not all items are available for purchase online.

Product FAQs

Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.

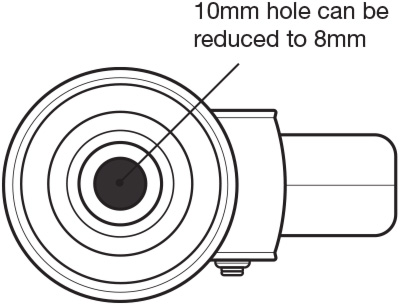

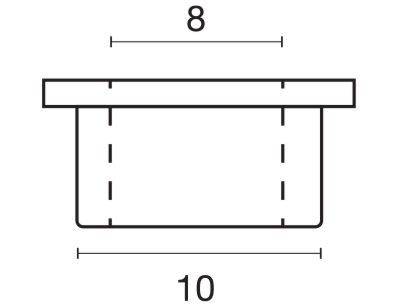

These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat).  See part number 100RED1008UTI.
