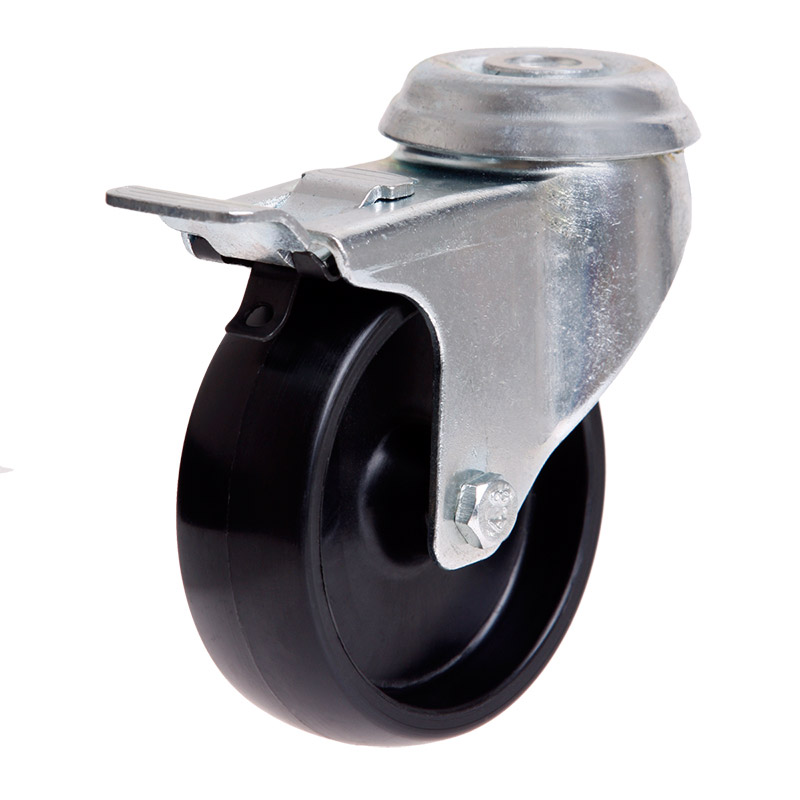

The S3712B manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is part of our utility series range and has a maximum capacity of 50kg. The S3712B uses plain bearings for wheel rotation. The swivel frame allows the castor to swivel 360°. The nylon wheel diameter is 75mm, the wheel width is 25mm and can be ordered separately (NY3324). To order this castor without a brake, search for S3712.
Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.
| Product Code | S3712B |
|---|---|
| Wheel Diameter (mm) | 75 |
| Frame Type | Swivel with Brake |
| Wheel Width (mm) | 25 |
| Wheel Type | Nylon |
| Wheel Code | NY3324 |
| Wheel Bearing Type | Plain Bore |
| Castor Height (mm) | 98 |
| Swivel Radius (mm) | 85 |
| Bolt Hole Size (mm) | 10 |
| Maximum Load Capacity (kg) | 50 |
| Recommended Load Capacity (kg) | 40 |
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.
Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.
These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat). See part number 100RED1008UTI.
