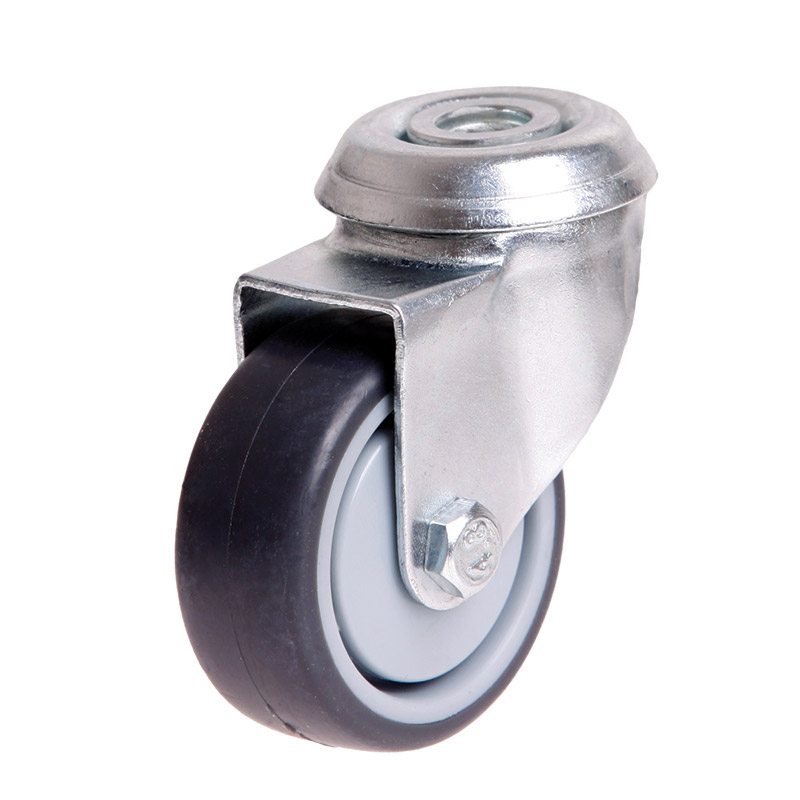

The S2714 from Richmond is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is in our utility series range and can safely take loads up to 30kg. The S2714 uses ball bearings for wheel rotation. The swivel frame allows for full 360° swivel rotation. The overall institutional rubber wheel diameter is 50mm, the wheel width is 20mm and you can order separately. To order this castor with a brake, search for S2714B.
50mm Rubber Wheel 30kg Capacity Castor (S2714)
Frame Type: Swivel
$7.95 ex. GST
$8.75 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S2714 from Richmond is a swivel frame castor and is fitted with a institutional rubber wheel. This swivel castor is in our utility series range and can safely take loads up to 30kg. The S2714 uses ball bearings for wheel rotation. The swivel frame allows for full 360° swivel rotation. The overall institutional rubber wheel diameter is 50mm, the wheel width is 20mm and you can order separately. To order this castor with a brake, search for S2714B.
Description
Ideal for light duty applications including wire baskets, display equipment and light trolley applications, Richmond Utility Series Bolt Castors offers a corrosion resistant attractive zinc plated finish in a pressed metal construction. A choice of a nylon wheel or non-marking grey rubber adds to the versatility of this castor. The ability to add various pintle fittings for round or square tubing ensures maximum functionality and performance.
Product FAQs
Fitting this castor to a 20mm thick base requires a 40mm x 10mm set screw.
These castors have a 10mm bolt hole but can be reduced to suit an 8mm bolt with a reduction bush (top hat). See part number 100RED1008UTI.
| Product Code | S2714 |
|---|---|
| Wheel Diameter (mm) | 50 |
| Frame Type | Swivel |
| Wheel Width (mm) | 20 |
| Wheel Type | Institutional Rubber |
| Wheel Code | IR2201 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 68 |
| Swivel Radius (mm) | 49 |
| Maximum Load Capacity (kg) | 30 |
| Recommended Load Capacity (kg) | 20 |
| Frame Construction | Pressed Metal |
| Frame Material | Zinc Plated Steel |
| Mounting Type | Bolt-Hole Mount |
| Bolt Hole Size (mm) | 10 |
