150mm Polyurethane Tyre on Nylon Centre Bolt Hole 300 Series Castor (S6226)

$59.73 ex. GST

$65.70 inc. GST

Available Online

International Shipping Available

Estimeted Freight Cost

Delivery & Handling

Use my location

Click & Collect

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

Estimated Freight Cost

Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.

Calculate

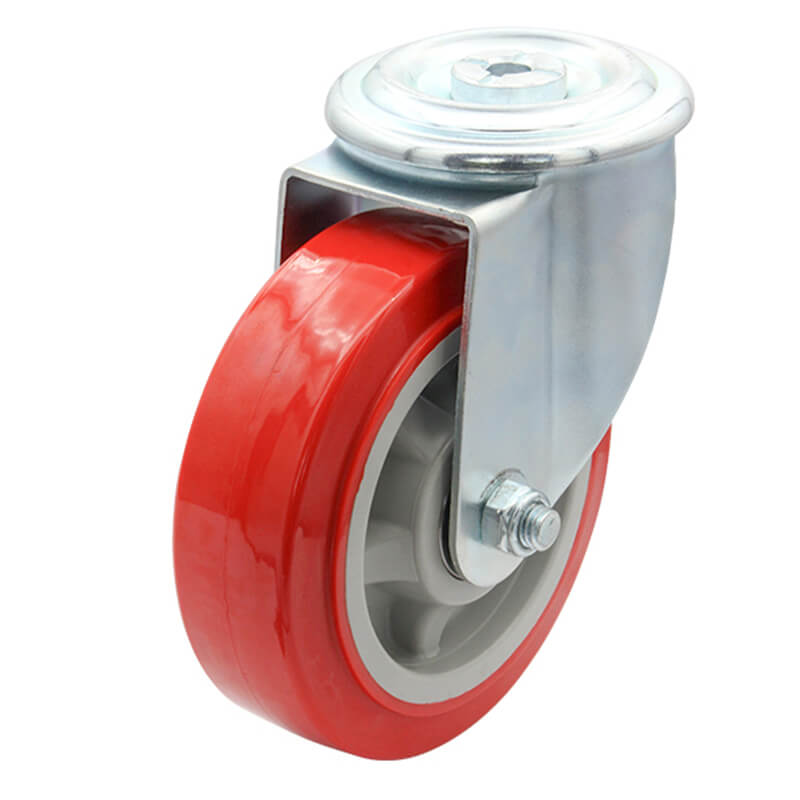

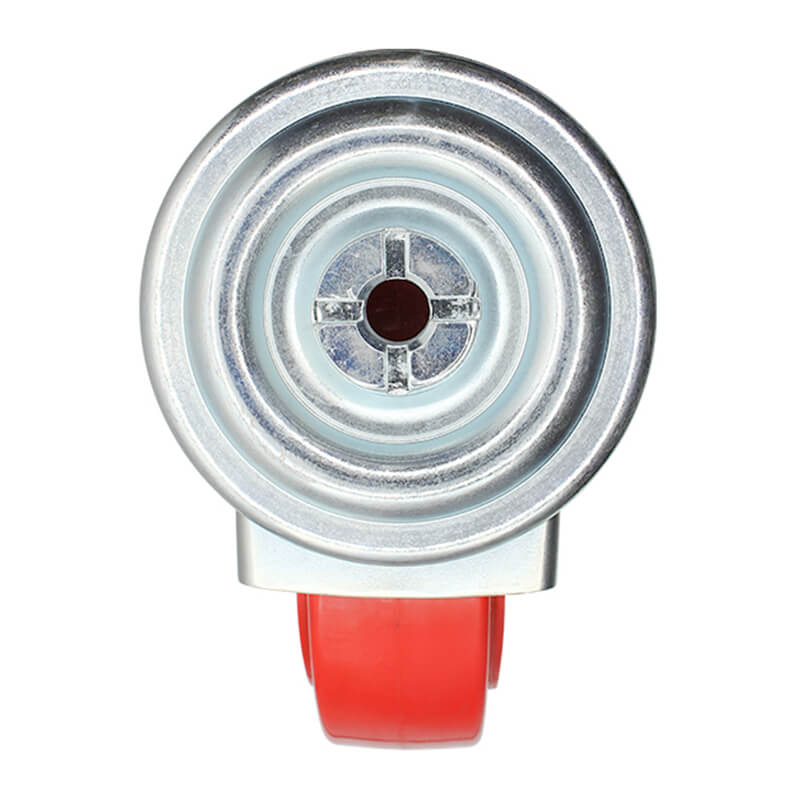

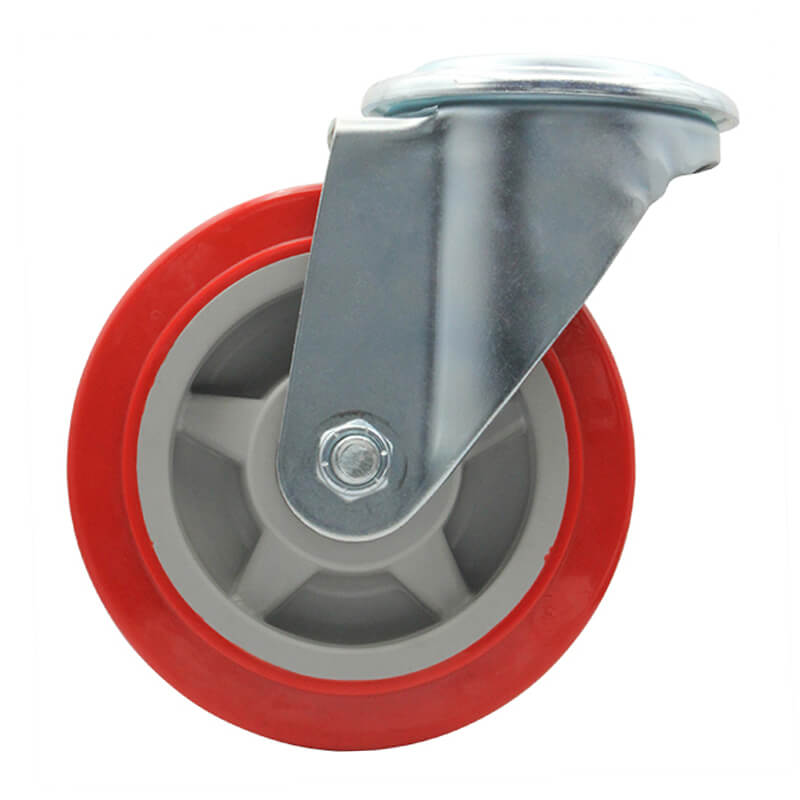

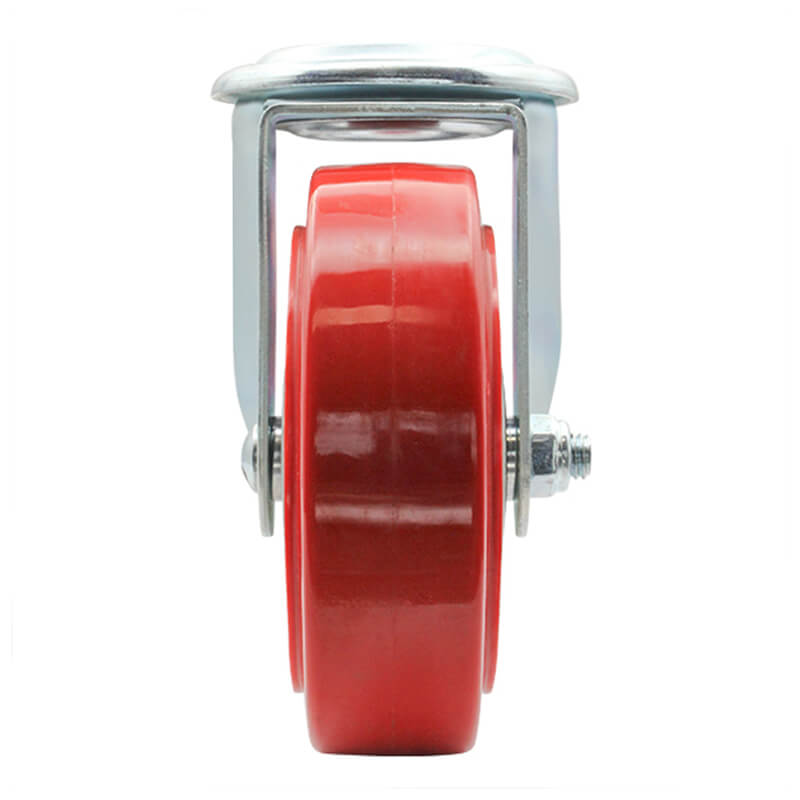

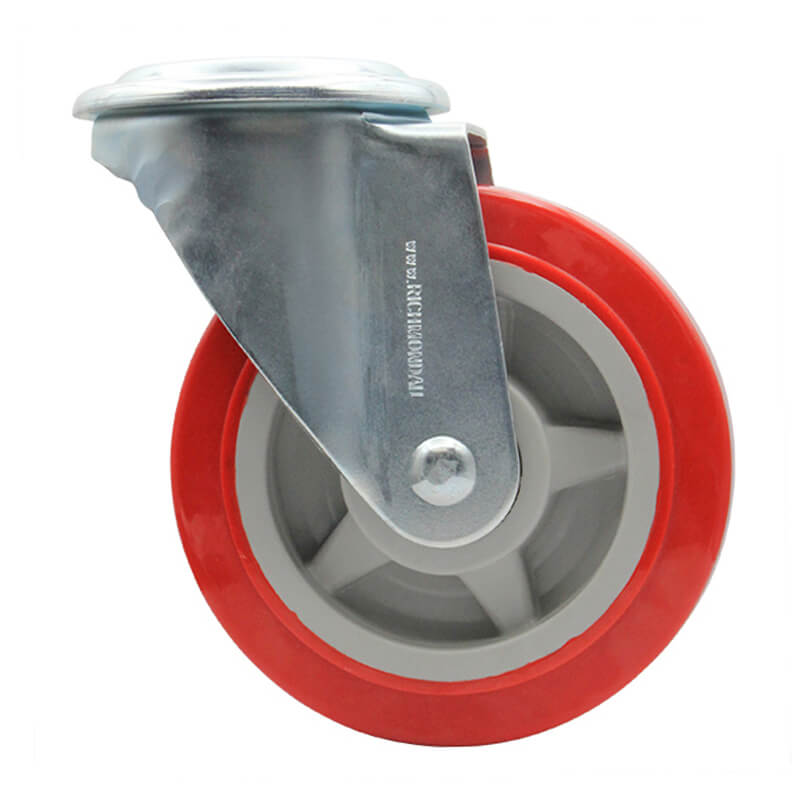

The S6226 manufactured by Richmond is a swivel frame castor and features a poly nylon wheel. This swivel castor is one of our 300 series bolt hole range and has a top load capacity of 300kg. The S6226 wheel is fitted with ball bearings and is mounted with a bolt. The swivel frame allows the castor to swivel 360°. The diameter of the poly nylon wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU6071). For the same castor with a brake, see S6226B.

View Specifications View Specifications Shipping Information

Description
Specifications

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Addon Components

Addons for your 150mm Polyurethane Tyre on Nylon Centre Bolt Hole 300 Series Castor (S6226). Click the product that you’re interested in for more info.

Expanding Pintle For 19mm ID Round Tube - M12 x 90mm Bolt (OBT12-P1)

(063OBTPRD19-M12)

Expanding Pintle For 19mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P4)

(063OBTPSQ19-M12)

Expanding Pintle For 22mm ID Round Tube - M12 x 90mm Bolt (OBT12-P2)

(063OBTPRD22-M12)

Expanding Pintle For 22mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P5)

(063OBTPSQ22-M12)

Expanding Pintle For 28.5mm ID Round Tube - M12 x 90mm Bolt (OBT12-P3)

(063OBTPRD28-M12)

Expanding Pintle For 28.5mm Internal Square Tube - M12 x 90mm Bolt (OBT12-P6)

(063OBTPSQ28-M12)

12mm Top Hat (Bore Reducer) to suit 8mm Fittings (RED1208OBT)

(100RED1208OBT)

12mm Top Hat (Bore Reducer) to to Suit 10mm Fittings (RED1210OBT)

(100RED1210OBT)

Product Code	S6226
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Polyurethane Tyred Aluminium Centred
Wheel Code	PU6071
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	181
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	250

12mm Bolt Hole

Swivel
