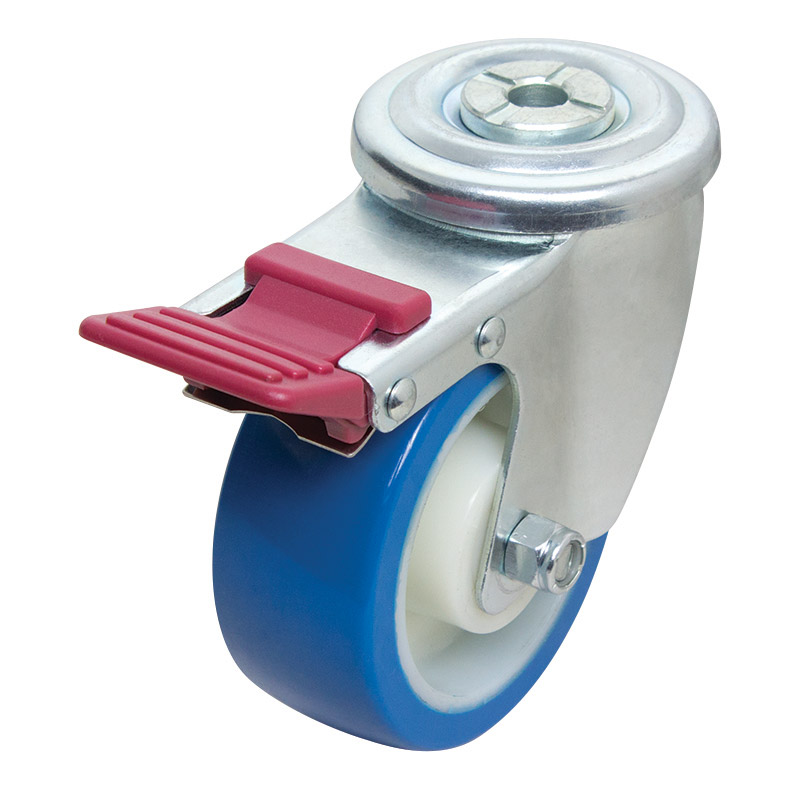

The S4216B by Richmond is a swivel frame castor and features a rebound polyurethane wheel. This swivel castor is in our 300 series bolt hole range and can hold loads up to 150kg. The S4216B wheel is fitted with stainless steel roller bearings and is mounted with a bolt. The swivel frame allows the load to be steered. The diameter of the rebound polyurethane wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RP4072). To order this castor without a brake, search for S4216.
100mm Rebound Polyurethane Wheel, 150kg Capacity, Bolt Hole Swivel Brake Castor (S4216B)
$45.45 ex. GST
$50.00 inc. GST
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Available Online
International Shipping Available
Estimated Freight Cost
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
Description
Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.
| Product Code | S4216B |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Rebound Polyurethane |
| Wheel Code | RP4072 |
| Wheel Bearing Type | Stainless Roller Bearing |
| Castor Height (mm) | 130 mm |
| Swivel Radius (mm) | 125 mm |
| Maximum Load Capacity (kg) | 150 kg |
| Recommended Load Capacity (kg) | 110 kg |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Frame Material | Zinc Plated Steel |
| Mounting Type | Bolt-Hole Mount |
| Bolt Hole Size (mm) | 12 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
