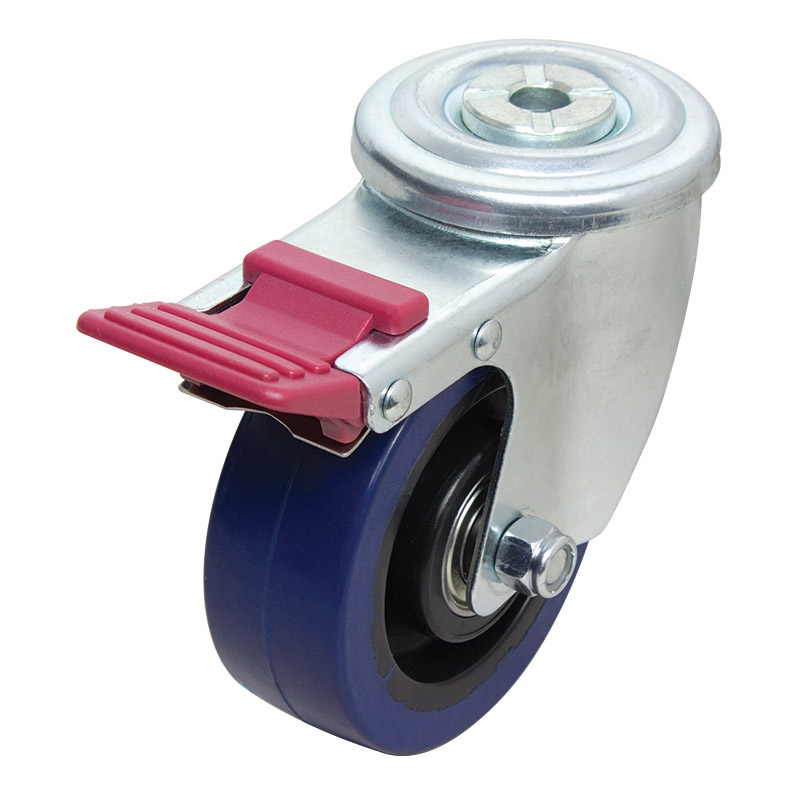

The S4214B by Richmond is a swivel frame castor and has a rebound rubber wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 150kg. The S4214B wheel is fitted with ball bearings and is bolt mount. The swivel frame of this castor allows the load to be steered. The outside diameter of the rebound rubber wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RR4077). To order this castor without a brake, search for S4214.

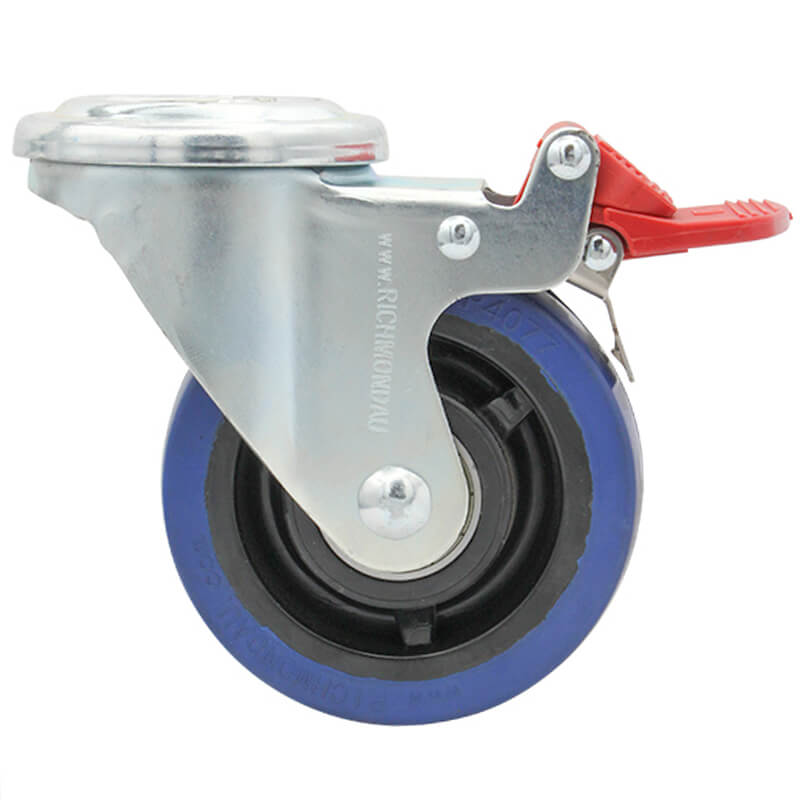

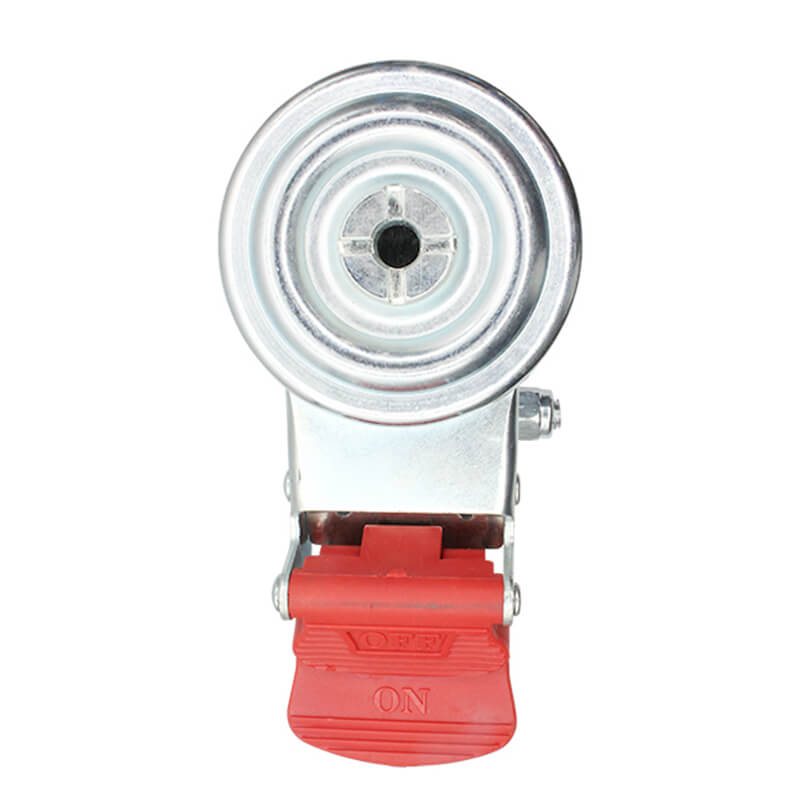

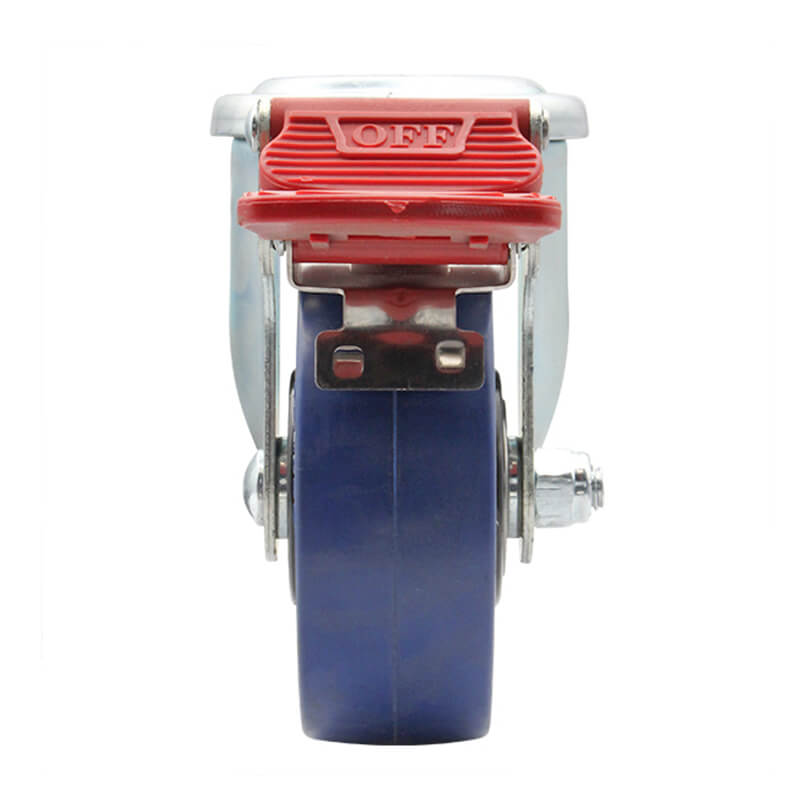

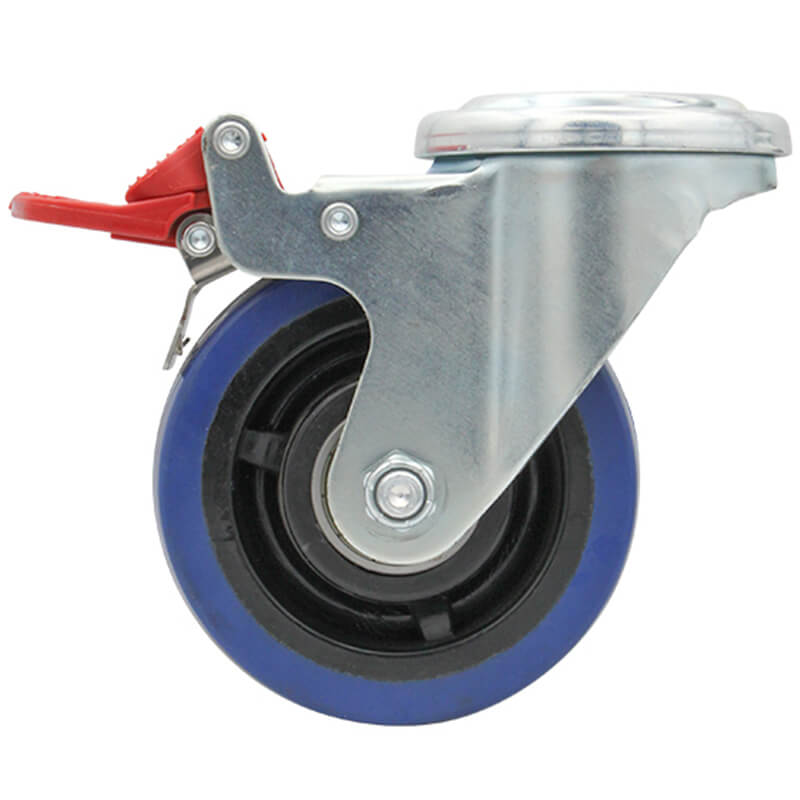

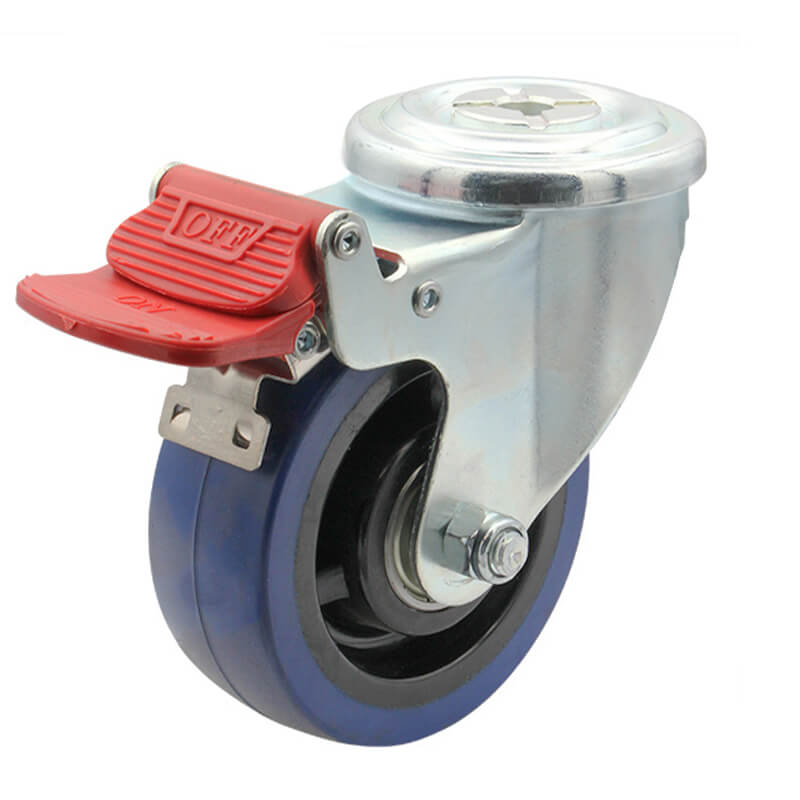

100mm Rebound Rubber Wheel, 150kg Capacity, Bolt Hole Swivel Brake Castor (S4214B)
Frame Type: Swivel Brake
$34.32 ex. GST
$37.75 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S4214B by Richmond is a swivel frame castor and has a rebound rubber wheel. This swivel castor is part of our 300 series bolt hole range and has a maximum capacity of 150kg. The S4214B wheel is fitted with ball bearings and is bolt mount. The swivel frame of this castor allows the load to be steered. The outside diameter of the rebound rubber wheel is 100mm, the wheel width is 35mm and you can order separately (Part Number: RR4077). To order this castor without a brake, search for S4214.
Description
Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.
| Product Code | S4214B |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Swivel Brake |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR4077 |
| Wheel Bearing Type | Steel Shielded Deep Groove Ball Bearings |
| Castor Height (mm) | 130 mm |
| Swivel Radius (mm) | 90 mm |
| Maximum Load Capacity (kg) | 150 kg |
| Recommended Load Capacity (kg) | 110 kg |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Frame Material | Zinc Plated Steel |
| Mounting Type | Bolt-Hole Mount |
| Bolt Hole Size (mm) | 12 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
