100mm Nylon Bolt Hole 300 Series Castor (S4222)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

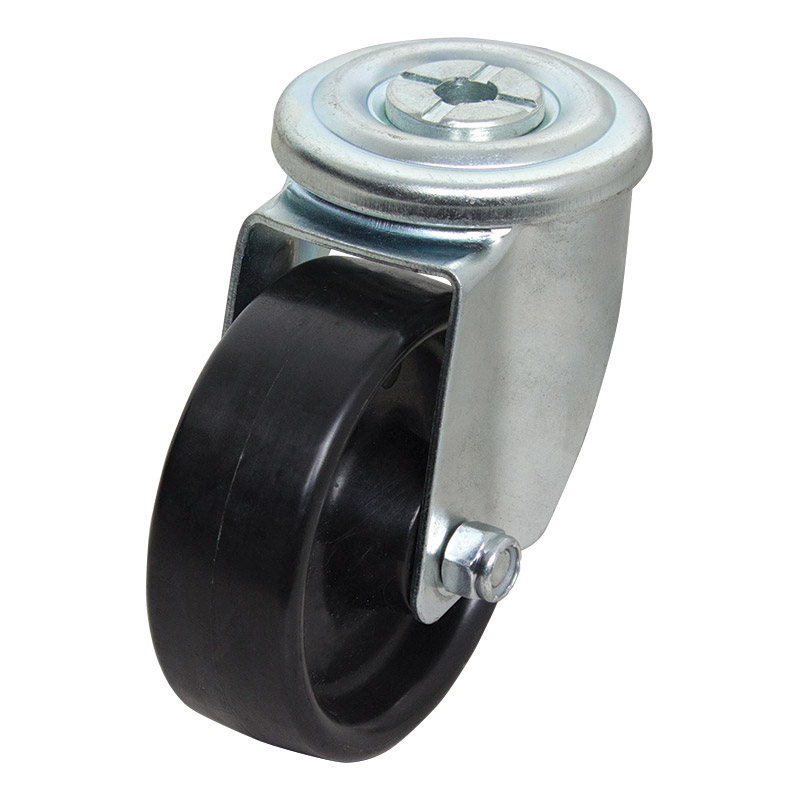

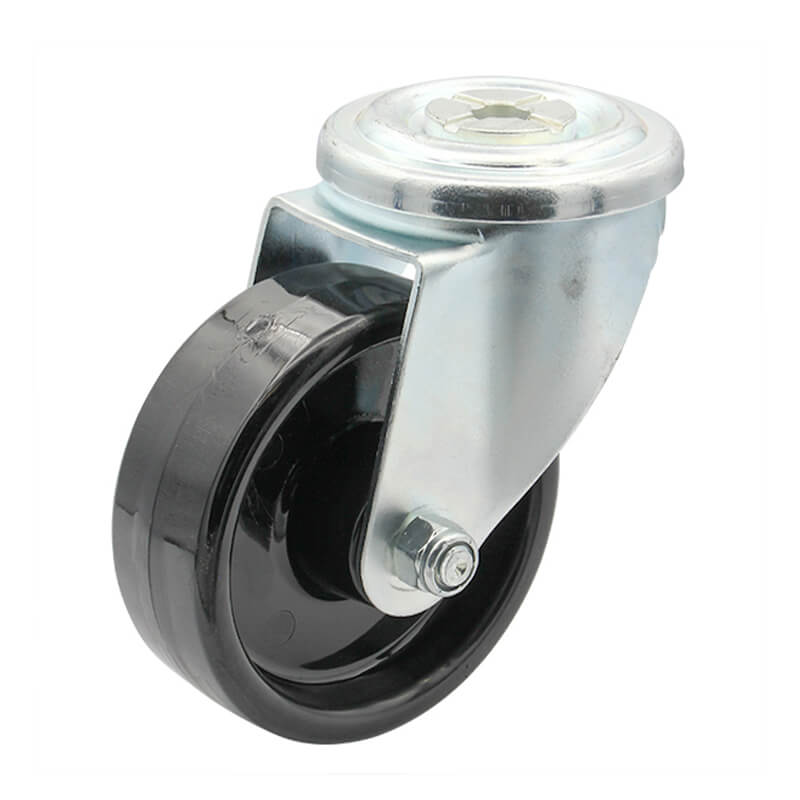

The S4222 by Richmond is a swivel frame castor and uses a nylon wheel. This swivel castor is in our 300 series bolt hole range and can hold loads up to 200kg. The S4222 wheel is fitted with plain bearings and is mounted with a bolt. The swivel frame allows the load to be steered. The nylon wheel diameter is 100mm, the wheel width is 35mm and you can order separately (Part Number: NY401). For the same castor with a brake, see S4222B.

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code S4222
Wheel Diameter (mm) 100
Frame Type Swivel
Wheel Width (mm) 35
Wheel Type Nylon
Wheel Code NY401
Wheel Bearing Type Plain Bore
Castor Height (mm) 130
Swivel Radius (mm) 90
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 200
Recommended Load Capacity (kg) 150
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Swivel

Swivel
