The S4214 by Richmond is a swivel frame castor and is fitted with a rebound rubber wheel. This swivel castor is one of our 300 series bolt hole range and has a maximum capacity of 150kg. The S4214 uses ball bearings for wheel rotation and is bolt mount. This castors swivel frame permits the load to be steered. The rebound rubber wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (RR4077). For the same castor with a brake, see S4214B.

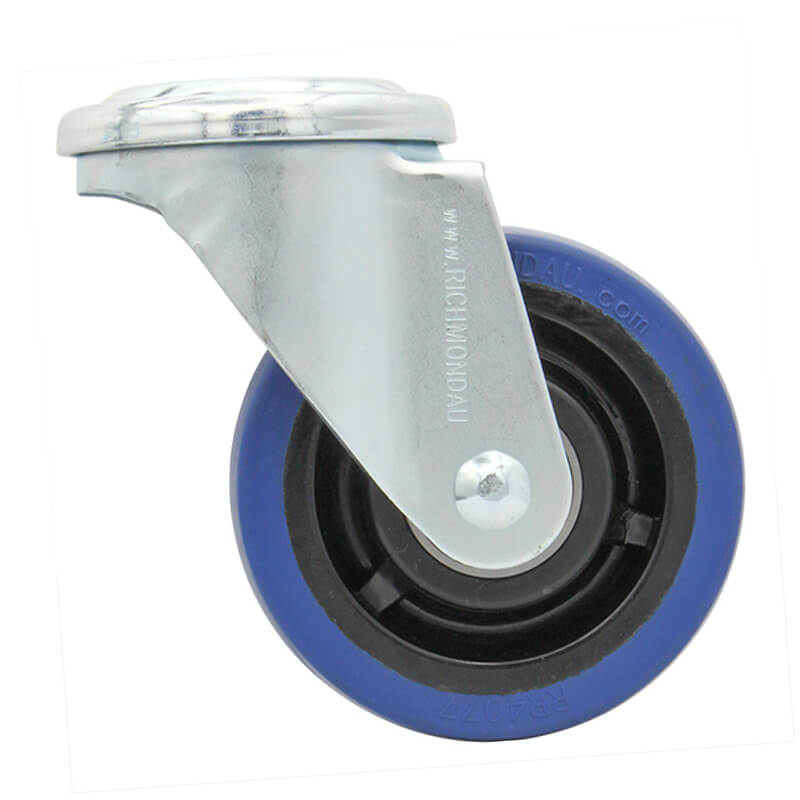

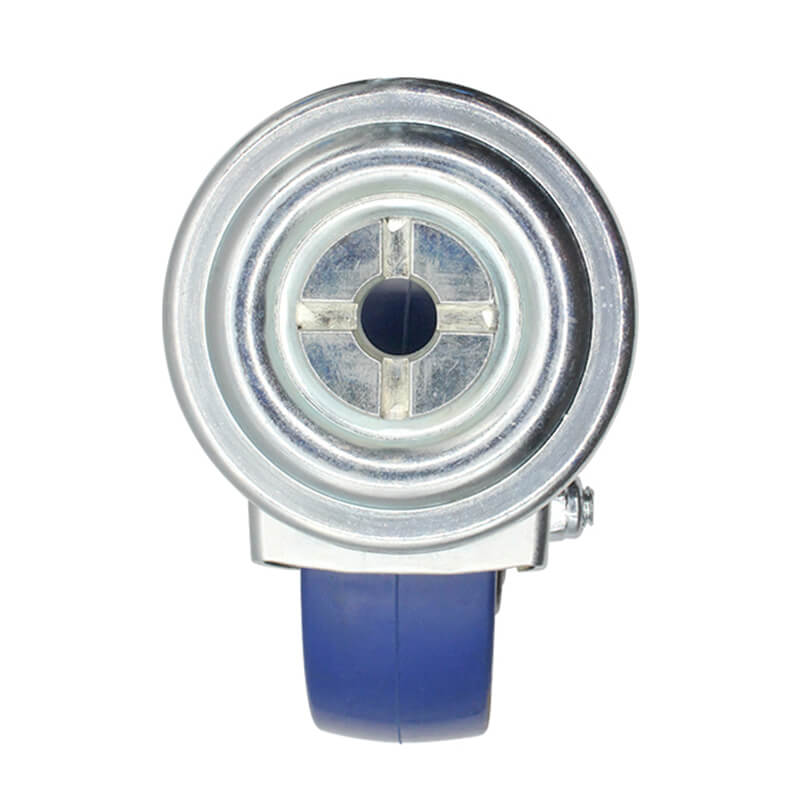

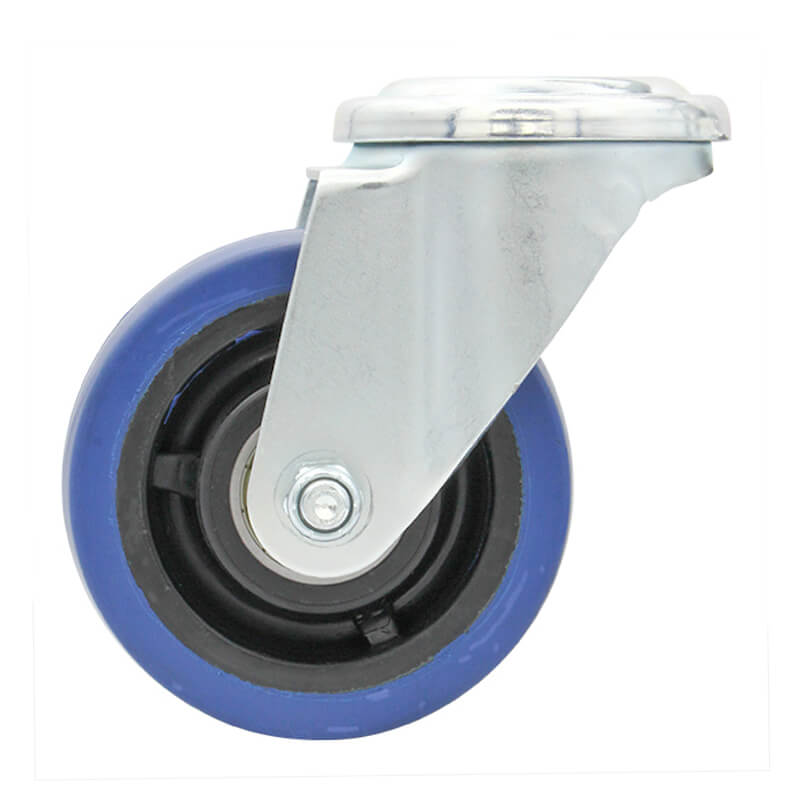

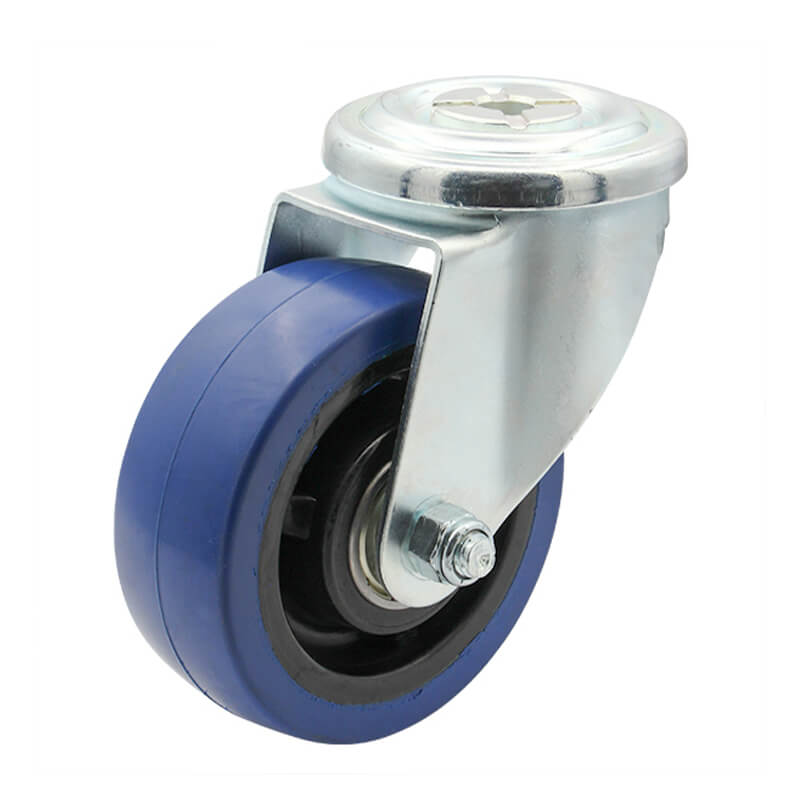

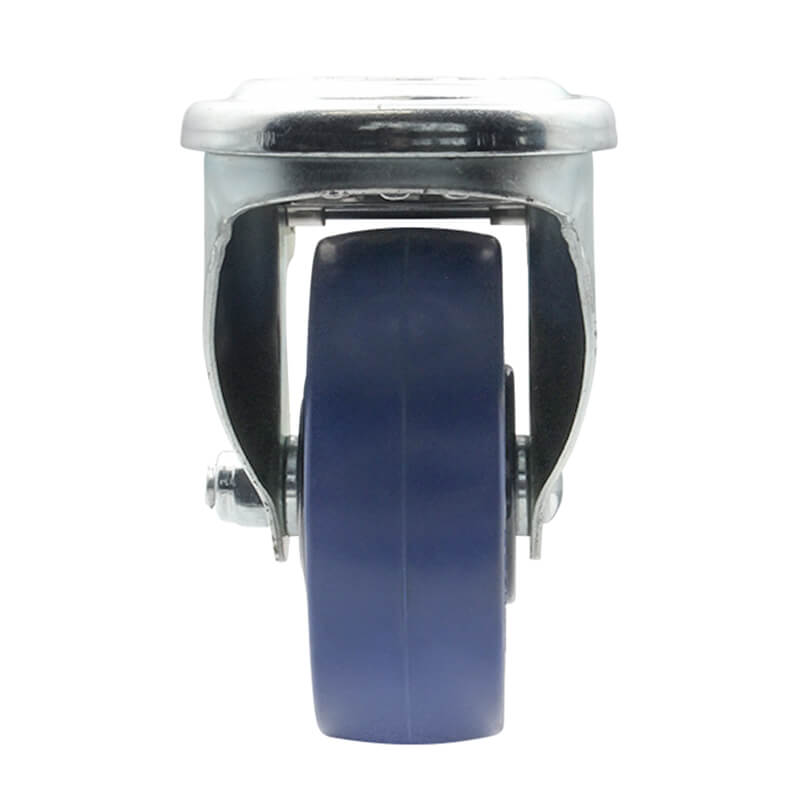

100mm Rebound Rubber Wheel, 150kg Capacity, Bolt Hole Swivel Castor (S4214)
Frame Type: Swivel
$29.12 ex. GST
$32.03 inc. GST
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S4214 by Richmond is a swivel frame castor and is fitted with a rebound rubber wheel. This swivel castor is one of our 300 series bolt hole range and has a maximum capacity of 150kg. The S4214 uses ball bearings for wheel rotation and is bolt mount. This castors swivel frame permits the load to be steered. The rebound rubber wheel diameter is 100mm, the wheel width is 35mm and can be ordered separately (RR4077). For the same castor with a brake, see S4214B.
Description
Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.
| Product Code | S4214 |
|---|---|
| Wheel Diameter (mm) | 100 mm |
| Frame Type | Swivel |
| Wheel Width (mm) | 35 mm |
| Wheel Type | Rebound Rubber |
| Wheel Code | RR4077 |
| Wheel Bearing Type | Steel Shielded Deep Groove Ball Bearings |
| Castor Height (mm) | 130 mm |
| Swivel Radius (mm) | 90 mm |
| Maximum Load Capacity (kg) | 150 kg |
| Recommended Load Capacity (kg) | 110 kg |
| Frame Construction | Pressed Metal Construction With Dual-Bearing Swivel Race |
| Frame Material | Zinc Plated Steel |
| Mounting Type | Bolt-Hole Mount |
| Bolt Hole Size (mm) | 12 mm |
| Download CAD Drawing (STEP file) | Download |
|---|
