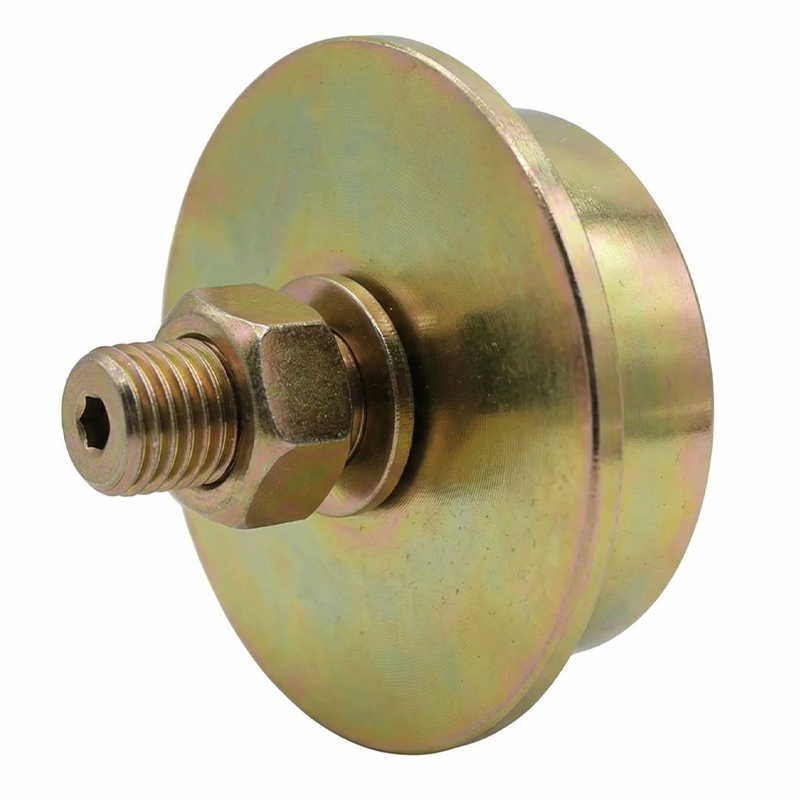

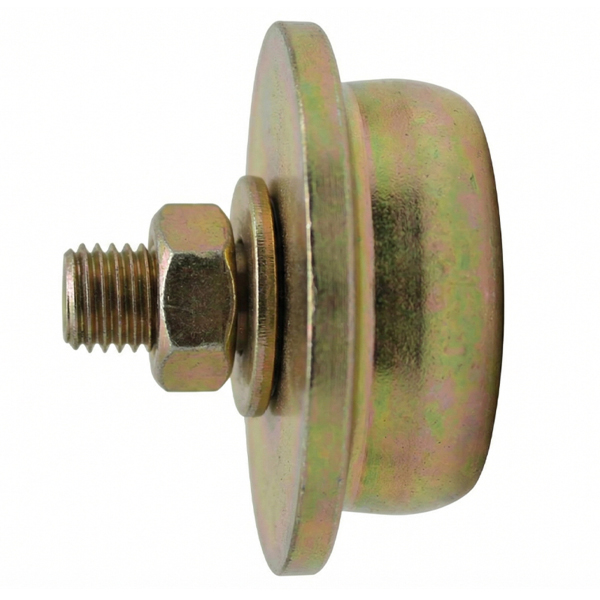

130mm Beam Trolley Track Wheel 30mm Axle Diameter (BT130)

$151.31 ex. GST

$166.44 inc. GST

Available Online

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

Beam trolley wheels are often seen on overhead cranes and carriages, movable platforms, construction, assembly lines, storage systems, heavy duty applications, building applications and manufacturing process systems. Our standard range of beam trolley wheels has been designed to fit standard channel and beam sections.

Wheel: 130mm diameter x 37mm wide rim
Flange: 159mm diameter x 37mm width
M30 axle bolt with hexagon recess for reliable adjustment
750kg Load Capacity
Black painted SG Iron finish
Double row angular contact ball bearings for increased the load capacity and side loading capacity compared to traditional beam trolley wheels with single row ball bearings.

We can also custom manufacture beam trolley wheels to suit your application. Contact our expert team for more information

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	BT130
Wheel Diameter (mm)	130
Rim Width (mm)	37
Flange Diameter (mm)	159
Flange Width (mm)	8
Material	SG Iron
Axle Thread	M30
Load Capacity (kg)	750

Download CAD Drawing (STEP file)	Download
