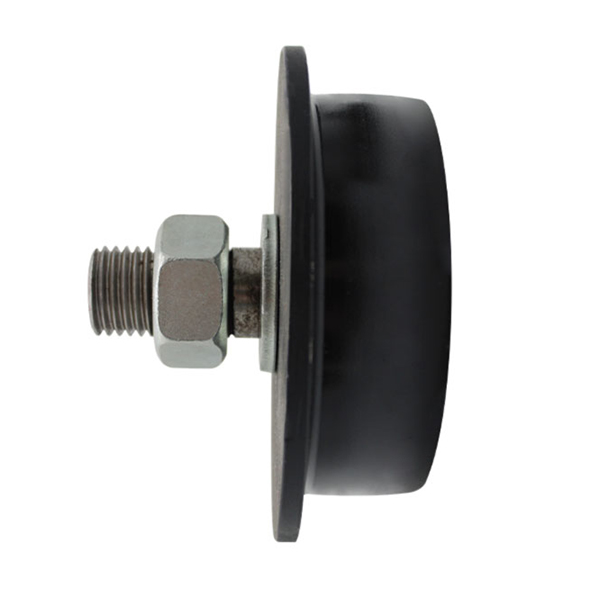

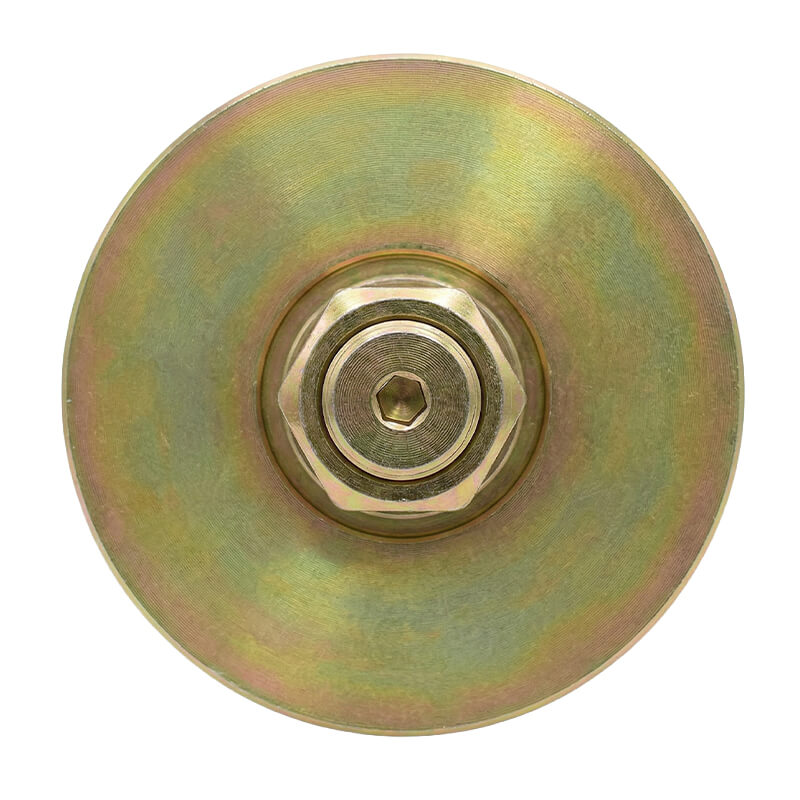

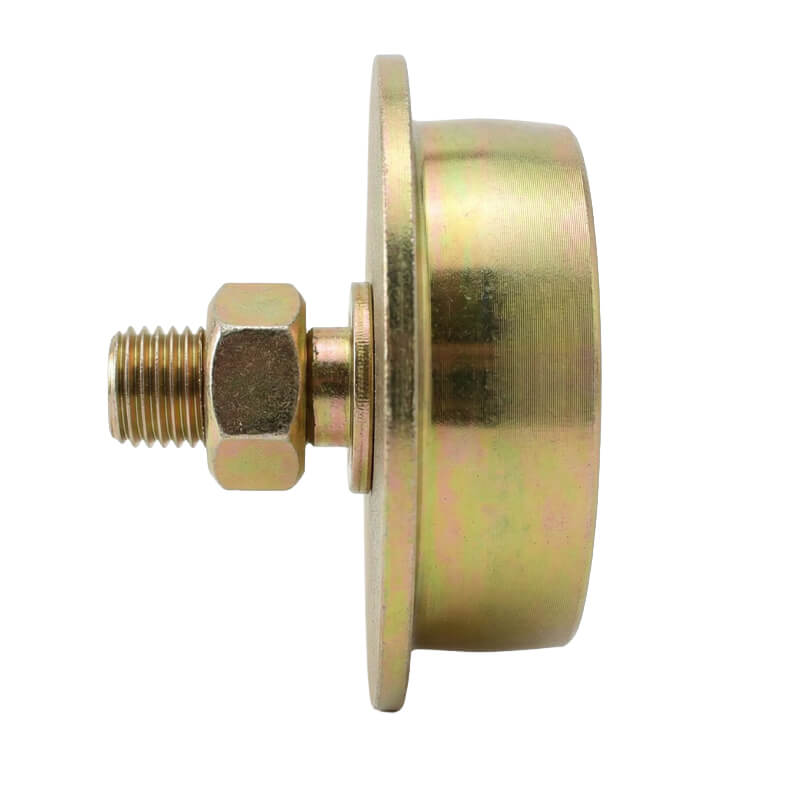

100mm Beam Trolley Track Wheel 24mm Axle Diameter (BT100)

$107.18 ex. GST

$117.90 inc. GST

Available Online

For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

Beam trolley wheels are often seen on overhead cranes and carriages, movable platforms, construction, assembly lines, storage systems, heavy duty applications, building applications and manufacturing process systems. Our standard range of beam trolley wheels has been designed to fit standard channel and beam sections.

Wheel: 100mm diameter x 32mm wide rim
Flange: 133mm diameter x 8mm wide flange
M24 axle bolt with hexagon recess for reliable adjustment
500kg Load Capacity
Black painted SG Iron finish
Double row angular contact ball bearings for increased the load capacity and side loading capacity compared to traditional beam trolley wheels with single row ball bearings.

We can also custom manufacture beam trolley wheels to suit your application. Contact our expert team for more information

View Specifications View Specifications Shipping Information

Specifications
Downloads

Product Code	BT100
Wheel Diameter (mm)	100
Rim Width (mm)	32
Flange Diameter (mm)	133
Flange Width (mm)	8
Material	SG Iron
Axle Thread	M24
Load Capacity (kg)	500

Download CAD Drawing (STEP file)	Download

Shipping Information

Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.

Shipping will be calculated at checkout.

For more information on our freight charges, click & collect locations, and more
view our online shipping policy

*Not all items are available for purchase online.

100mm Beam Trolley Track Wheel 24mm Axle Diameter (BT100)

Shipping Information

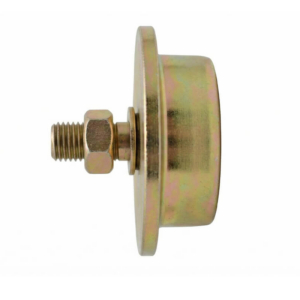

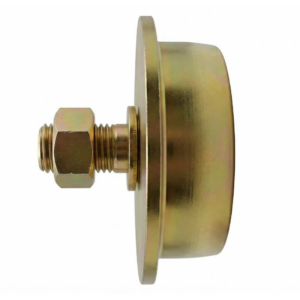

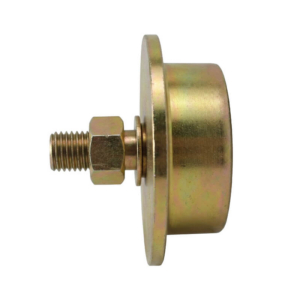

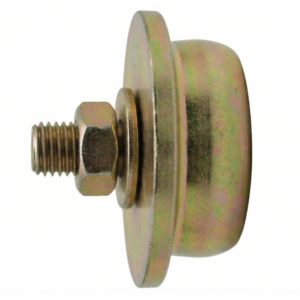

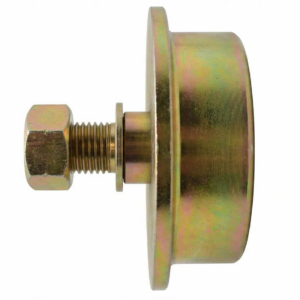

Also in Beam Trolley
