GTR156 Safety Check

This guide will show you how to safely perform a self-check on your GTR156 sliding gate motor. Once you have followed these steps and taken a photo of your wiring please upload it using the form below.

If you are uncomfortable or unsure about performing the inspection, please contact Richmond Wheel and Castor to discuss further.

Click Here to download a printable version of these instructions >

Click Here to view a video guide on how to check your wiring >

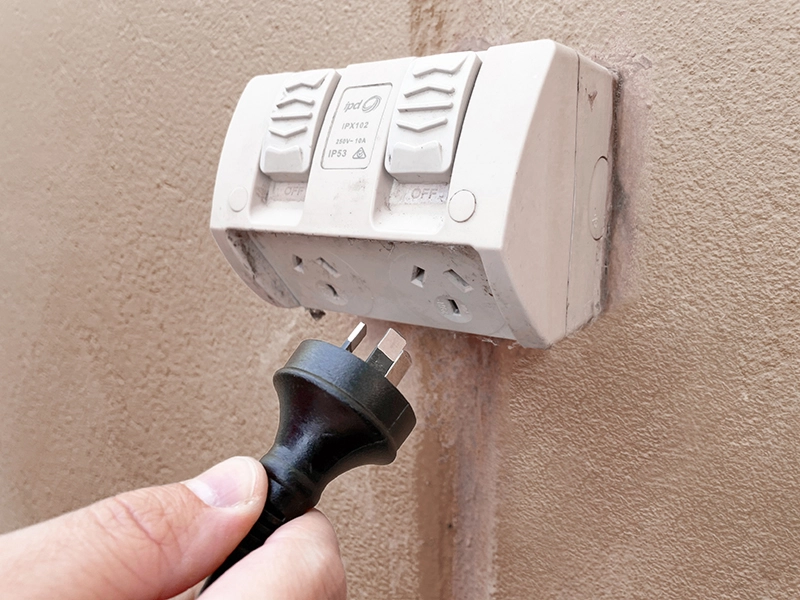

Turn off power at the power point and remove the power plug

2. If you are unsure if you have a GTR156 gate motor, take a photo, fill in the form below and upload a photo of your motor. A Richmond technician will be in touch ASAP to advise.

3. Remove the two screws on each side of the motor cover

4. Remove the plastic housing surrounding the motor.

5. The wiring can be inspected through the clear PC board cover.

6. Check the wiring matches the image below

If your gate matches the image, it is not affected. If you are unsure or want confirmation that it matches, please upload a photo and fill in your details via the form below and we will get back to you.
If your wires do not match what is shown, take a photo and contact your nearest Richmond store as soon as possible.

Name*
First Last
Address*
Street Address City State / Province / Region ZIP / Postal Code
Email*
Phone*
Purchase Date
DD slash MM slash YYYY
Upload Images
Drop files here or

Max. file size: 50 MB.
Upload images of your motor and wiring for us to check here! Max file size: 50MB
Comments
This field is for validation purposes and should be left unchanged.

7. Replace the cover, ensuring the rubber grommet is in place.
