Tracks

1m Bolt-Down Sliding Gate Tracks

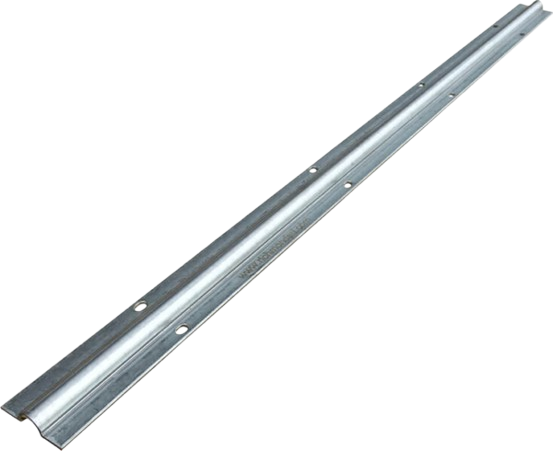

The 1m Bolt Down Sliding Gate Track – Galvanised (GTR091) provides a 1m galvanised track section for suitable surface-mounted sliding gate installations. It is designed to form part of a compatible running track arrangement.

Shorter track sections are useful when completing a required track length, extending an existing installation or working with a layout that requires multiple sections. Correct alignment and joining are important to maintain a consistent running surface for the gate wheels.

3m Bolt-Down Sliding Gate Tracks

The 3m Bolt Down Sliding Gate Track – Galvanised (GTR010) provides a longer galvanised steel track section for compatible sliding gate installations. It is intended for mounting to a suitable supporting surface.

These tracks are relevant to residential driveways, commercial entrances and industrial gates where a surface-mounted running track is required. The 3m length can reduce the number of individual sections needed for a longer straight track arrangement.

V-Groove Sliding Gate Tracks

The 3m Bolt Down Sliding Gate Track – V Groove – Galvanised (GTR280) provides a galvanised track option with a V-groove running profile.

V-groove track configurations are used with compatible gate wheels and are relevant to manual and automated sliding gate installations. The wheel groove and track profile must be matched correctly to provide stable movement and suitable load support.

In-Ground Sliding Gate Tracks

The 5.8m In-Ground Sliding Gate Track (GTR046) provides a recessed track option for suitable sliding gate installations. Unlike a conventional bolt-down track, an in-ground track is incorporated into a prepared ground surface.

Recessed tracks can be considered for new driveway construction, commercial entrances and industrial access points where an integrated running track is required. Installation should account for ground preparation, alignment, drainage and compatibility with the selected gate wheels.

Sliding Gate Track Bends

The Bolt Down Gate Track Bend (GTR272) provides a track component for specialised sliding gate installations requiring a compatible change in track direction.

Track bends are relevant to non-standard gate layouts where a straight running path is not suitable. The gate structure, wheels and guide arrangement must be designed for the intended travel path, as conventional sliding gates are not necessarily compatible with curved track arrangements.

Sliding Gate Track Joiner Pins

The Joiner Pin for Sliding Gate Track (GTR090) provides a joining component for compatible sliding gate track sections. Joiner pins help installers connect suitable track lengths when constructing a continuous running path.

These components are useful for residential, commercial and industrial installations requiring multiple track sections. Accurate alignment at each joint helps prevent uneven transitions that could affect gate wheel movement.

Sliding Gate Track Mounting Anchors

Richmond supplies mounting fasteners for suitable bolt-down track installations, including the M6.5 x 35mm Anchor Bolt (GTR174), M6.5 x 55mm Anchor Bolt (GTR175) and M6.5 x 38mm Nail-In Mushroom Anchor – 8 Pack (NIA380ZPK8).

These fasteners provide different options for securing compatible track sections to suitable supporting materials. The correct anchor type, length and installation method should be selected according to the substrate and track manufacturer’s requirements.

Galvanised Steel Gate Track Construction

Richmond’s galvanised bolt-down sliding gate tracks provide a steel running surface with a protective galvanised finish. Available options include the 1m GTR091, 3m GTR010 and 3m V-Groove GTR280.

Galvanised steel tracks are relevant to outdoor sliding gate installations where corrosion resistance is an important consideration. The supporting surface, fixing method and track alignment should also be suitable for long-term outdoor use.

Surface-Mounted vs In-Ground Tracks

Surface-mounted tracks are fixed above a suitable supporting surface, while in-ground tracks are recessed into a prepared surface. Richmond supplies both configurations to accommodate different gate construction and installation requirements.

Surface-mounted tracks may be suitable for compatible existing driveways, while in-ground tracks can be considered during new construction or substantial groundworks. The correct option depends on the site layout, wheel configuration, surface condition and required clearances.

Track Lengths & Section Joining

Richmond supplies bolt-down track sections in 1m and 3m lengths, allowing installers to plan a running track based on the gate’s total travel distance. The GTR090 Joiner Pin provides a joining accessory for compatible track sections.

When combining track lengths, each section should be accurately positioned to maintain a consistent running surface. Track joints should be checked for alignment and suitability before the gate is placed into service.

V-Groove Track & Wheel Compatibility

The GTR280 V-Groove Sliding Gate Track is designed for use with compatible gate wheel profiles. The shape of the track and wheel groove determines how the wheel contacts and travels along the running surface.

Wheel and track profiles must be matched to avoid poor contact, excessive wear or unstable movement. Explore Richmond’s Sliding Gate Track Wheels range when selecting compatible running gear.

Bolt-Down Track Fastening Systems

Richmond supplies several mounting fastener options, including the M6.5 x 35mm Anchor Bolt (GTR174), M6.5 x 55mm Anchor Bolt (GTR175) and M6.5 x 38mm Nail-In Mushroom Anchor – 8 Pack (NIA380ZPK8).

Correct fastening is important for maintaining track position under repeated gate movement. Installers should confirm the anchor’s suitability for the supporting material, required hole dimensions and intended installation loads.

Gate Track Drilling Accessories

The 6.5mm Drill Bit for Gate Track Fasteners (GTR178) provides a drilling accessory for suitable gate track installation work.

Accurate hole preparation is important when installing track fasteners. The required drill diameter and depth should be confirmed against the selected anchor’s instructions and the material being drilled.

Track Bends for Specialised Gate Layouts

The Bolt Down Gate Track Bend (GTR272) provides an option for suitable installations requiring a change in the running track direction.

Curved or non-standard track arrangements require careful consideration of wheel movement, gate frame geometry and guidance components. The complete system must be designed to accommodate the intended path rather than relying on a track bend alone.

Sliding Gate Track Alignment & Maintenance

Correct track alignment helps maintain smooth gate movement and reduces unnecessary loading on the wheels and other running gear. Tracks should be installed on a suitable supporting surface with consistent positioning along the required travel path.

Routine maintenance should include checking track fixings, removing debris, inspecting joints and identifying damage or movement in the running surface. These checks are relevant to both manual and automated sliding gates.

Tracks for Automatic Sliding Gates

Automatic sliding gate motors rely on a gate that moves freely along its running track. Excessive rolling resistance, damaged track sections or poor alignment can increase the load placed on the drive system.

Before automating an existing gate, installers should assess the condition of the track, wheels and guide rollers. Richmond supplies compatible Sliding Gate Motors and Sliding Gate Track Wheels for suitable installations.
