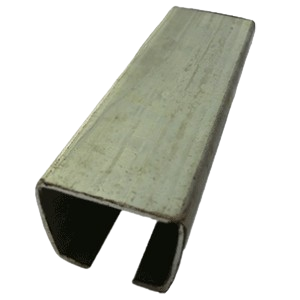

Cantilever Gate Channels
Richmond supplies a range of cantilever gate channels for industrial, commercial, agricultural and residential sliding gate installations. Designed for use with compatible cantilever gate roller systems, these channels form an important part of the gate’s supporting structure, allowing the gate to move horizontally without requiring a ground-mounted track across the entrance.
Our range includes 68mm, 100mm and 140mm cantilever gate channels, each available in a 5.8m length. These channels are used in the construction of cantilever sliding gates for warehouses, factories, rural properties, commercial premises and other locations where clear ground-level access is required.
Explore Richmond’s 68mm Cantilever Gate Channel (GTR023), 100mm Cantilever Gate Channel (GTR024) and 140mm Cantilever Gate Channel (GTR025) to find a suitable channel profile for your gate installation.
Cantilever Sliding Gate Channels for Trackless Gate Systems
Cantilever sliding gate channels are structural track components used with compatible roller carriages to support and guide the movement of a cantilever gate. Unlike conventional sliding gates that travel along a ground-mounted track, cantilever systems support the gate from one side of the entrance, keeping the opening clear of continuous floor tracks.
This arrangement is particularly useful in warehouses, workshops, manufacturing plants, agricultural properties and logistics centres where forklifts, pallet jacks, trucks and farm machinery regularly move through gate openings. Without a ground track across the entrance, there is less opportunity for gravel, dirt and debris to interfere with the gate’s running surface.
Richmond offers three cantilever channel sizes to suit different gate system requirements. Selecting the correct channel involves matching the profile to compatible roller assemblies and considering the gate’s total weight, length, structural design and operating conditions. The channel width alone does not determine the complete system’s load capacity.
Product Types by Application
68mm Cantilever Gate Channels
The Cantilever Gate Channel 68mm Wide x 5.8m Long (GTR023) provides a 68mm channel profile for use in compatible cantilever sliding gate systems. It forms part of the gate’s supporting and guiding arrangement when paired with suitable roller components.
This channel is an option for gate installations designed around a 68mm cantilever system. It may be used in residential, commercial or rural applications where the complete gate assembly and roller configuration meet the required load and dimensional specifications.
100mm Cantilever Gate Channels
The Cantilever Gate Channel 100mm Wide x 5.8m Long (GTR024) provides a 100mm channel profile for cantilever sliding gate installations requiring this track size. The channel is designed to work with compatible cantilever roller assemblies.
100mm cantilever gate channels are relevant to commercial, agricultural and industrial gate projects where the selected gate design specifies a 100mm running channel. Installers should confirm roller compatibility, gate dimensions and the capacity of the complete system.
140mm Cantilever Gate Channels
The Cantilever Gate Channel 140mm Wide x 5.8m Long (GTR025) provides the widest channel profile in Richmond’s listed cantilever gate channel range. It is intended for gate systems designed to accommodate a 140mm cantilever channel and matching roller hardware.
This profile may be specified for larger commercial or industrial cantilever gate installations, subject to the complete system design and component ratings. The channel must be matched to suitable roller assemblies and supporting hardware before installation.
Specialty Product Options
68mm, 100mm & 140mm Channel Profiles
Richmond’s cantilever gate channel range includes three profile widths: 68mm, 100mm and 140mm. These options allow gate fabricators and installers to select the channel size specified for their cantilever gate system.
Different channel profiles require appropriately matched roller assemblies and associated hardware. When selecting a channel, it is important to confirm the complete gate design rather than choosing a profile based on width alone.
5.8m Cantilever Gate Channel Lengths
All three Richmond cantilever gate channel products are supplied in 5.8m lengths. This provides a consistent stock length across the 68mm, 100mm and 140mm profiles.
Channel length is an important consideration when designing a cantilever gate because the structure must accommodate both the entrance opening and the supporting section of the gate. Installers should confirm the required overall gate dimensions before selecting or modifying channel sections.
Compatible Cantilever Roller Systems
Cantilever gate channels work with roller assemblies that support and guide the gate during movement. The rollers and channel profile must be compatible to provide correct engagement and controlled travel.
Proper component matching is essential for residential, commercial and industrial gate installations. Roller capacity, mounting arrangement and channel dimensions should be assessed together to ensure the complete system is suitable for the intended gate.
Trackless Gate Operation
Cantilever gate systems eliminate the need for a continuous ground-mounted running track across the entrance. The gate moves horizontally while being supported by the cantilever channel and roller arrangement positioned beside the opening.
This is particularly useful for agricultural driveways, industrial entrances and logistics operations where vehicles regularly cross the gateway. Clear ground-level access helps reduce maintenance associated with dirt and debris collecting in conventional ground tracks.
Gate Fabrication & Structural Integration
Cantilever gate channels are incorporated into the gate structure as part of the supporting and running system. Correct positioning, alignment and structural integration are important for maintaining consistent gate movement.
These components are used by gate manufacturers, metal fabricators and installation contractors constructing new cantilever sliding gates. The gate frame, channel, rollers and supporting foundations must be designed to work together.
Manual & Automated Cantilever Gates
Cantilever gate channels can form part of manually operated or motorised cantilever sliding gate systems, provided the channel and roller arrangement is suitable for the complete installation.
For automated applications, smooth gate travel and correct alignment are particularly important because excessive rolling resistance can place additional strain on the gate motor. Motor capacity and drive components must also be matched to the gate’s weight and travel requirements.
Replacement Cantilever Gate Channels
Individual cantilever gate channels may be required when fabricating a replacement gate or repairing an existing compatible system. Richmond’s three channel profiles provide options for projects requiring 68mm, 100mm or 140mm components.
Before replacing a channel, installers should confirm the original profile dimensions, roller compatibility and condition of the supporting hardware. Replacement components must meet the requirements of the existing gate system.
Applications by Industry
- Gate Manufacturing & Fabrication: Cantilever Gate Channels for constructing sliding gate frames and compatible trackless gate systems.
- Warehousing & Logistics: Cantilever Sliding Gate Channels for warehouse entrances and vehicle access points where clear ground-level passage is required.
- Manufacturing & Industrial Sites: 100mm and 140mm Cantilever Gate Channels for suitably designed industrial sliding gate installations.
- Agriculture & Farming: Cantilever Gate Channels for rural property entrances, farm driveways and machinery access gates.
- Commercial Properties: Cantilever Sliding Gate Hardware for vehicle entrances and commercial boundary gates.
- Residential & Acreage Properties: Cantilever Gate Channels for suitable driveway gate installations where a ground-mounted track is not preferred.
- Gate Installers & Contractors: 68mm, 100mm and 140mm Cantilever Gate Channels for new installations, gate fabrication and compatible replacement projects.
- Property Maintenance: Replacement Cantilever Gate Channels for repairing or upgrading existing compatible sliding gate systems.
Industrial Equipment Solutions Across Australia
Richmond is a leading Australian supplier of Cantilever Gate Channels and gate hardware for residential, agricultural, commercial and industrial applications. Our range includes 68mm, 100mm and 140mm cantilever channel profiles, each supplied in a 5.8m length for use with compatible cantilever gate systems.
Whether you are fabricating a new cantilever sliding gate, selecting components for an industrial entrance or replacing an existing gate channel, Richmond can assist with identifying the appropriate profile for your installation requirements.
Backed by Australia-wide supply, product expertise and in-house engineering capability, Richmond supports gate manufacturers, fabricators, installers and maintenance teams with practical gate hardware solutions.
Browse the 68mm Cantilever Gate Channel, 100mm Cantilever Gate Channel and 140mm Cantilever Gate Channel, or contact Richmond for advice on cantilever gate channels and compatible gate hardware.
