Height Adjustable Pipe Rollers
The height of these rollers can be adjusted from 200mm to 1000mm.
Height Adjustable V Profile HDPE Pipe Handling Assembly
The CSR007 is the perfect accessory for any HDPE/PE pipe laying project. It is suitable for pipes from 50mm to 600mm diameter with a load capacity of 500kg. Each assembly is light enough for one person to move position and adjust. Using the length of chain allows for the height of the rollers to be adjusted from 200mm to 1000mm off the ground. The assembly can be completely flattened for shipping with no overhang on a standard pallet.
| Pipe Diameter Range | Height Range | Load Capacity | Weight | Roller Type | Product Code |
|---|---|---|---|---|---|
| 50-600mm | 240-400mm | 500kg | 30kg | Galvanised Steel | HA01 |
| 50-600mm | 250-1000mm | 500kg | 30kg | Galvanised Steel | HA01A |
Heavy Duty Height Adjustable V Profile HDPE & Steel Handling Assembly
With higher capacity and large pipe sizes, this unit is suited to lightweight steel handling and heavy duty HDPE/PE applications such as feed rollers for fusion welding.
| Pipe Size Range | Height Range | Load Capacity | Weight | Roller Type | Product Code |
|---|---|---|---|---|---|
| 50-1000mm | 200-1100mm | 1000kg | 55kg | Galvanised Steel | HA02 |
| 50-1000mm | 250-1100mm | 1000kg | 55kg | Galvanised Steel | HA02A |

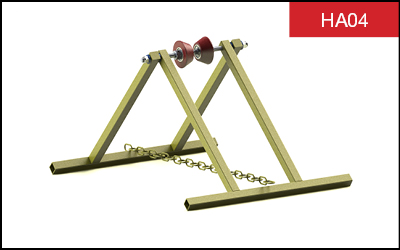

Light Duty Height Adjustable Pipe Roller
These pipe rollers are for small diameter HDPE/PE pipe handling applications. They are small, simple and extremely lightweight. One person can easily position and adjust this product without assistance. Different pipe diameters are fitted by sliding the rollers wider or closer to each other and securing in place with grub screws supplied.
| Pipe Size Range | Height Range | Load Capacity | Weight | Roller Type | Product Code |
|---|---|---|---|---|---|
| 25-450mm | 200-1100mm | 500kg | 15kg | Twin Nylon Cone Rollers | HA04 |
Heavy Duty Stackable Pipe Roller
These high load capacity pipe rollers are stackable and height adjustable using the adjusting screws.
| Pipe Size Range | Height Range | Load Capacity | Weight | Roller Type | Product Code |
|---|---|---|---|---|---|
| 50-750mm | 180-470mm | 1000kg | 60kg | Single V Polyurethane | HA05 |
Light-Duty Low-Profile Height Adjustable Pipe Roller with Manual Bottle Jacks for Height Adjustment
An excellent small pipe handling unit with the quickest adjustment method. Also available with polyurethane rollers.
| Pipe Size Range | Height Range | Load Capacity | Weight | Roller Type | Product Code |
|---|---|---|---|---|---|
| 50-500mm | 180-470mm | 300kg | 25kg | Twin Steel | HA06A |
| 50-500mm | 200-600mm | 600kg | 50kg | Twin Steel | HA06B |
