Height Adjustable Pipe Rollers

SupportR Height Adjustable Flat Profile Roller

Flat profile, lightweight, height adjustable solution for supporting loads up to 60kg per roller. Folds flat for neat storage.

Roller Width Height Range Load Capacity Product Code
280mm 680-1080mm 60kg CSR005


Height Adjustable V Profile Roller CSR006

V profile, height adjustable roller stand. Ideal for supporting bar stock for bandsaws or supporting pipe while welding.

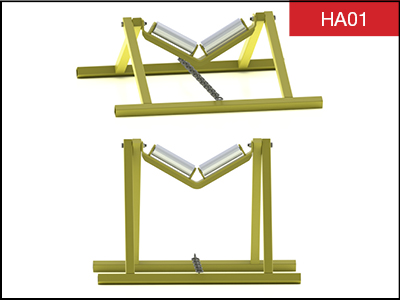

Height Adjustable V Profile HDPE Pipe Handling Assembly
The CSR 007 is the perfect accessory for any HDPE/PE pipe laying project. Suitable for pipes from 50mm to 600mm diameter with a load capacity of 500kg.

Each assembly is light enough for one person to move position and adjust the height. Using the length of chain allows for the heigth of the rollers to be adjusted from 200mm to 1000mm off the ground. The assembly can be completely flattened for shipping with no overhang on a standard pallet.

Pipe Diameter Range Height Range Load Capacity Weight Product Code
50-600mm 200-1000mm 500kg 30kg HA01

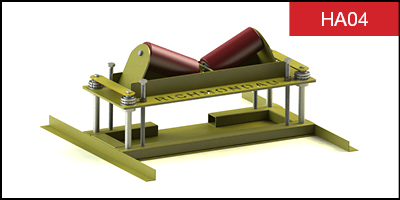

Heavy Duty Stackable Pipe Roller

These high load capacity pipe rollers are stackable and height adjustable using the adjust screws.

Pipe Size Range Height Range Load Capacity Weight Roller Type Product Code
50-750mm 180-470mm 1000kg 60kg Twin V Polyurethane HA04

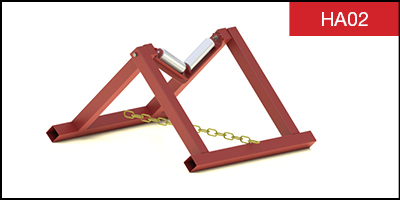

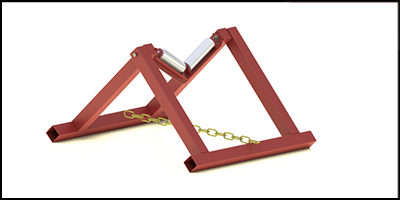

Heavy Duty Height Adjustable V Profile HDPE & Steel Handling Assembly

With higher capacity and large pipe sizes, this unit is suited to lightweight steel handling applications and heavy duty HDPE/PE applications such as feed rollers for fusion welding.

Pipe Size Range Height Range Load Capacity Weight Roller Type Product Code
50-1000mm 200-1100mm 1000kg 55kg Galvanised Steel HA02

Light Duty Height Adjustable Pipe Roller

Specifically for small diameter HDPE/PE pipe handling applications, this product is small, simple and extremely lightweight. One person can easily position and adjust this product without assistance.

Different pipe diameters are fitted by sliding the rollers wider or closer to each other and securing in place with grub screws supplied.

Pipe Size Range Height Range Load Capacity Weight Roller Type Product Code
25-450mm 200-1100mm 500kg 15kg Twin Nylon Cone Rollers HA04

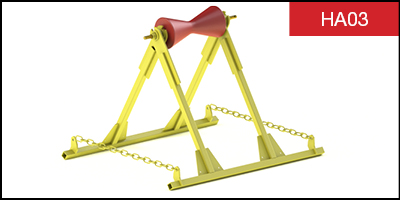

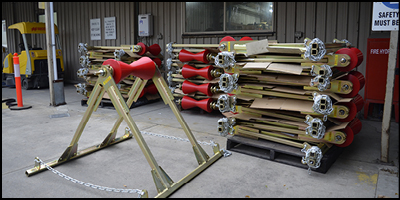

Heavy Duty Height Adjustable Pipe Roller With Polyurethane Tyre

Best choice for heavy duty HDPE/PE pipe applications, coated steel pipe and fibreglass pipe handling. The polyurethane roller is non-marking and gentle on pipe surfaces, reducing risk of damage during pipe handling.

Pipe Size Range Height Range Load Capacity Weight Roller Type Product Code
50-100mm 200-1100mm 800kg 75kg Single V Polyurethane HA03

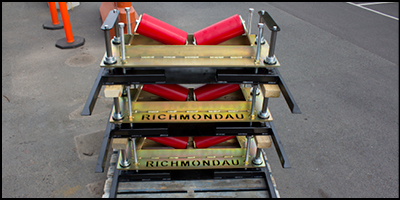

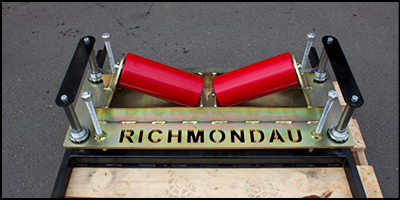

Heavy Duty Stackable Pipe Roller

These high load capacity pipe rollers are stackable and height adjustable using the adjust screws.

Pipe Size Range Height Range Load Capacity Weight Roller Type Product Code
50-750mm 180-470mm 1000kg 60kg Single V Polyurethane HA05

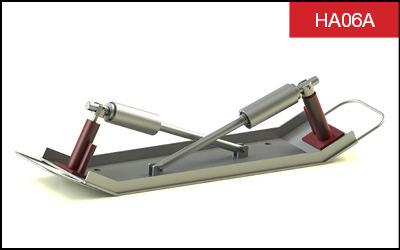

Light Duty Low Profile Height Adjustable Pipe Roller With Manual Bottle Jacks for Height Adjustment

Excellent small pipe handling unit with the quickest adjustment method. Also available with Polyurethane rollers.

Pipe Size Range Height Range Load Capacity Weight Roller Type Product Code
50-500mm 180-470mm 300kg 25kg Twin Steel HA06A
50-500mm 200-600mm 600kg 50kg Twin Steel HA06B
