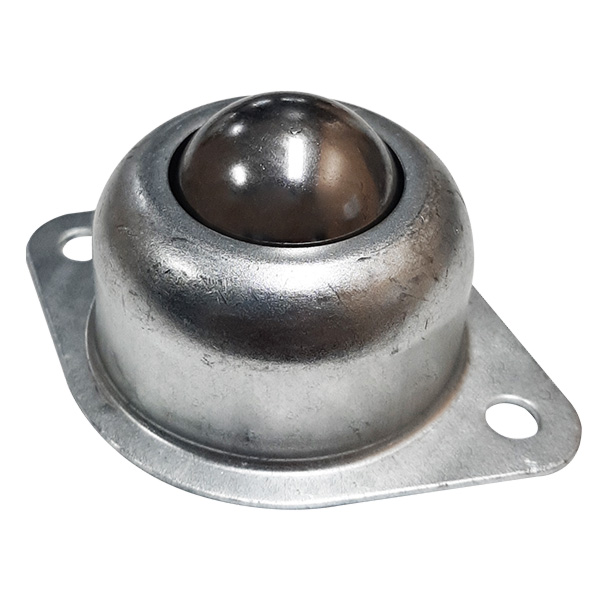

Mild Steel Double Flange Mount Ball Transfer 25.4mm Roller Diameter (BTR125MS)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

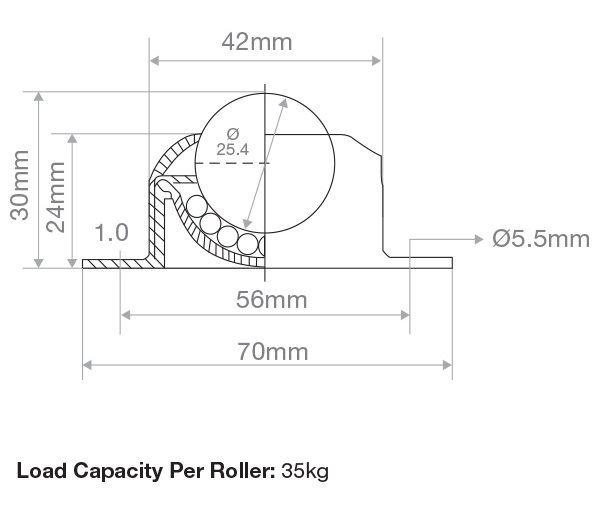

Material: Mild Steel

Ball Diameter: 1″ (25.4mm)

Overall Height: 30mm

Hole Centres: 56mm

Mounting Hole Diameter: 5.5mm

Load Capacity: 35kg

Also available in grade 304 stainless steel,  stainless steel part number BTR125SS

This ball transfer model features two mounting holes for easy attaching to flat surfaces or transfer tables with a matching hole pattern.

Commonly used around presses, guillotines and machining centres, Richmond’s Ball Transfer enable smooth and simple transfers of objects in any direction. Multi directional movement is essential where the need to move heavy loads is paramount. Consisting of a large load bearing roller sitting upon many smaller balls encapsulated in a cup the engineering in this design makes for a perfect transfer station from one conveyor to another. Richmond can customise ball transfer tables to suit your application whether the requirement is for a recessed transfer table or a multiple ball transfers in a designated area.

Barcode / GTIN

Shipping Information

Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.

Shipping will be calculated at checkout.

For more information on our freight charges, click & collect locations, and more
view our online shipping policy

*Not all items are available for purchase online.
