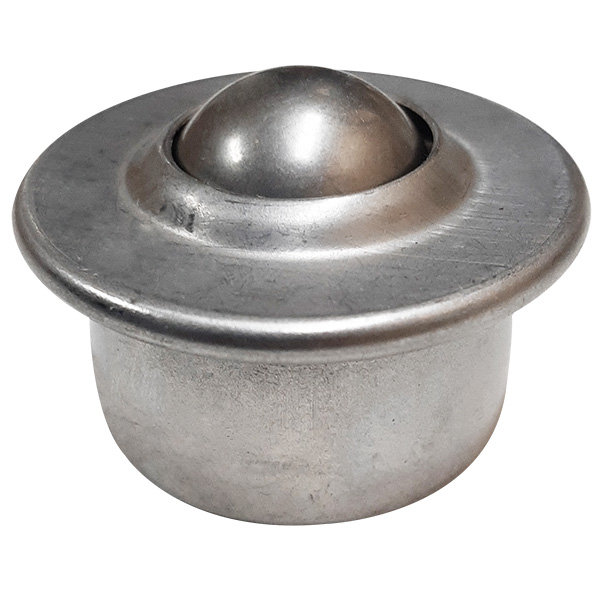

Grade 304 Stainless Steel Drop in Stamped Style Ball Transfer 25.4mm Roller Diameter (BTR425SS)
Material: Grade 304 Stainless Steel

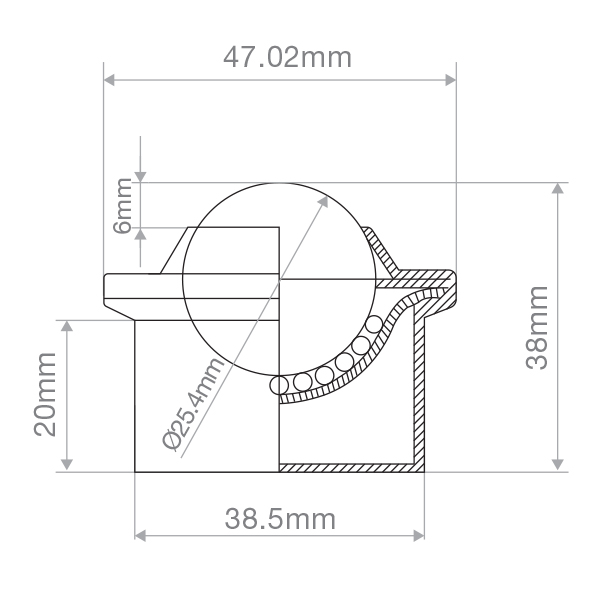

Ball Diameter: 1″ (25.4mm)
Overall Height: 38mm
Base Diameter: 38.5mm
Flange Diameter: 47.02mm
Recessed Height: 17mm
Load Capacity: 35kg
Also available in mild steel, mild steel part number BTR425MS
Commonly used around presses, guillotines and machining centres, Richmond’s Ball Transfer enable smooth and simple transfers of objects in any direction. Multi directional movement is essential where the need to move heavy loads is paramount. Consisting of a large load bearing roller sitting upon many smaller balls encapsulated in a cup the engineering in this design makes for a perfect transfer station from one conveyor to another. Richmond can customise ball transfer tables to suit your application whether the requirement is for a recessed transfer table or a multiple ball transfers in a designated area.
