75mm Poly Nylon Wheel 80kg Capacity Castor (S3384B)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

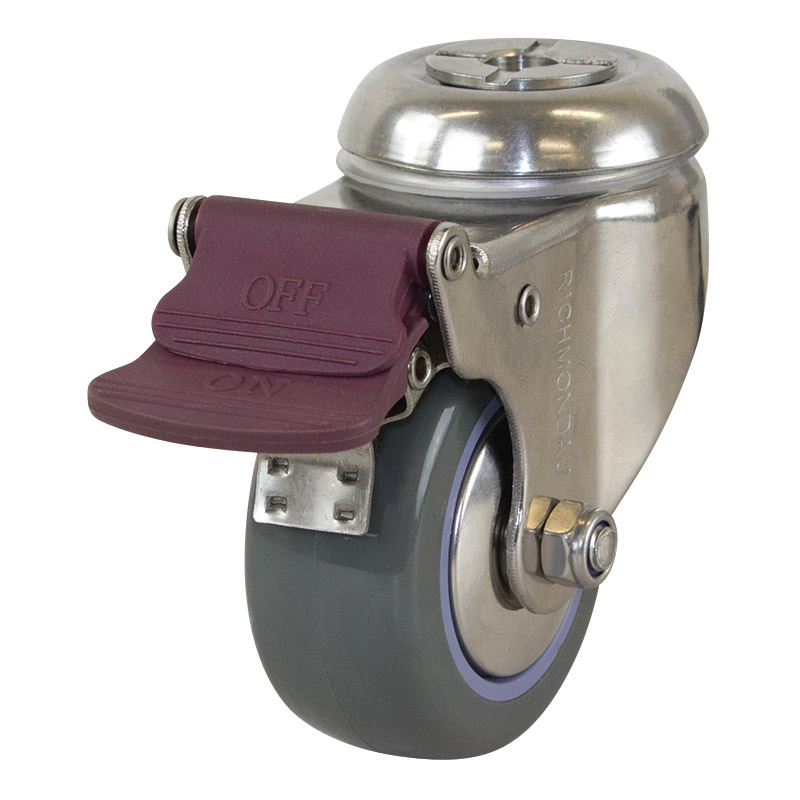

The S3384B by Richmond is a swivel frame castor and uses a polyurethane wheel. This swivel castor is in our stainless steel elite bolt range and can hold loads up to 80kg. The S3384B is assembled with stainless steel ball bearings on the castors axle and is bolt mounted. The swivel frame of this castor allows the load to be steered. The diameter of the polyurethane wheel is 75mm, the wheel width is 30mm and you can order separately (Part Number: PU3345). To order this castor without a brake, search for S3384.

Description

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

Product Code S3384B
Wheel Diameter (mm) 75
Frame Type Swivel with Brake
Wheel Width (mm) 30
Wheel Type Polyurethane Tyred Nylon Centred
Wheel Code PU3345
Wheel Bearing Type Stainless Ball Bearing
Castor Height (mm) 105
Swivel Radius (mm) 105
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 80
Recommended Load Capacity (kg) 45
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Grade 304 Stainless Steel

Grade 304 Stainless Steel

Swivel with Brake

Swivel with Brake
