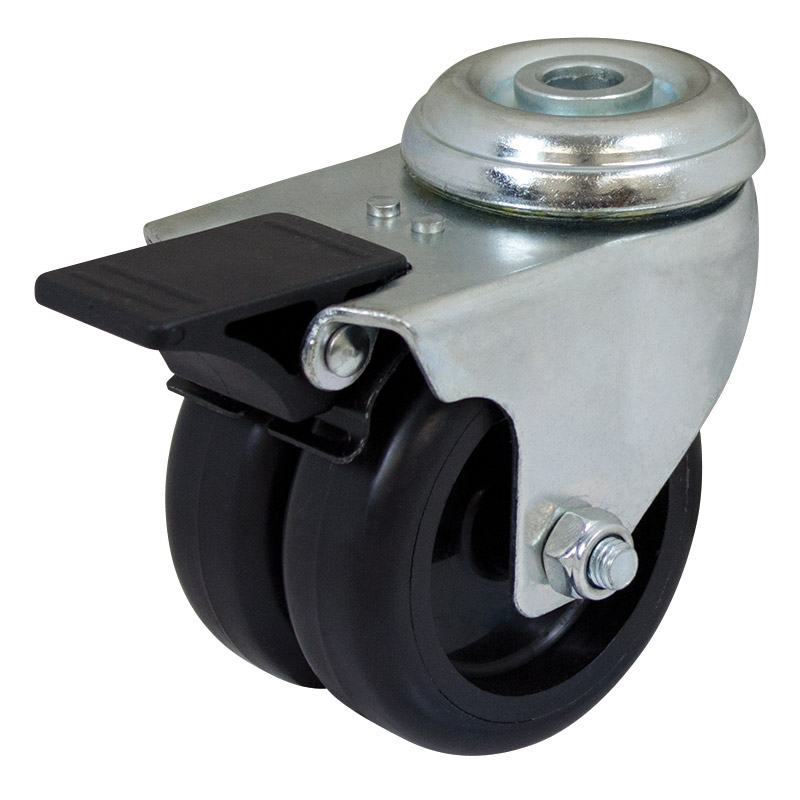

75mm Twin Wheel Utility Bolt Castor (S3720B)

Login to request a quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

The S3720B by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with 2 nylon wheels. This swivel castor is part of our utility series twin wheel range and can hold loads up to 80kg. The S3720B uses plain bearings for wheel rotation. The swivel frame design of this castor allows the load to be steered. The outside diameter of the nylon wheels is 75mm, the wheels width is 2 x 25mm and you can order separately. This model can also be ordered without a brake (part number S3720).

Description

The twin wheel low profile design not only increases manoeuvrability but increases load capacity to the Richmond Utility Castor. Available in a plate or bolt fitting this castor is commonly used in shop fitting applications, light duty cabinets, home entertainment units and other furniture. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish and is available with the choice of nylon or grey non-marking wheels.

Product Code S3720B
Wheel Diameter (mm) 75
Frame Type Swivel with Brake
Wheel Width (mm) 2 x 25
Wheel Type Institutional Rubber
Wheel Bearing Type Ball Bearing
Castor Height (mm) 98
Swivel Radius (mm) 100
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 80
Recommended Load Capacity (kg) 70
Utility Twin Wheel Castors Spec Sheet Download
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Swivel with Brake

Swivel with Brake

Twin Wheel Design

Twin Wheel Design
