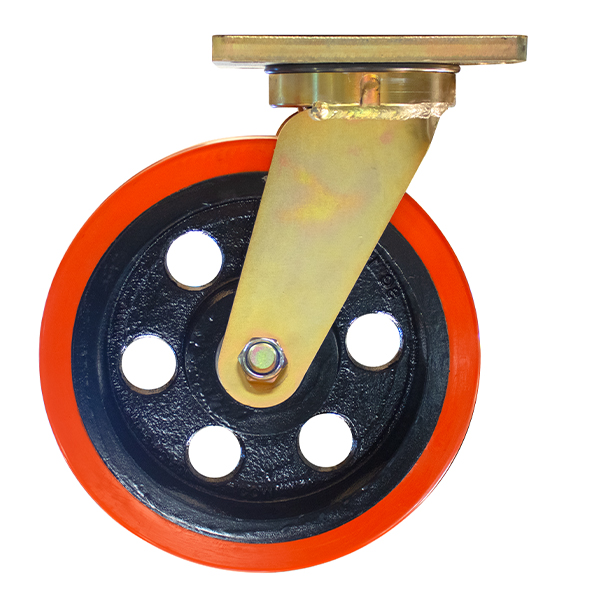

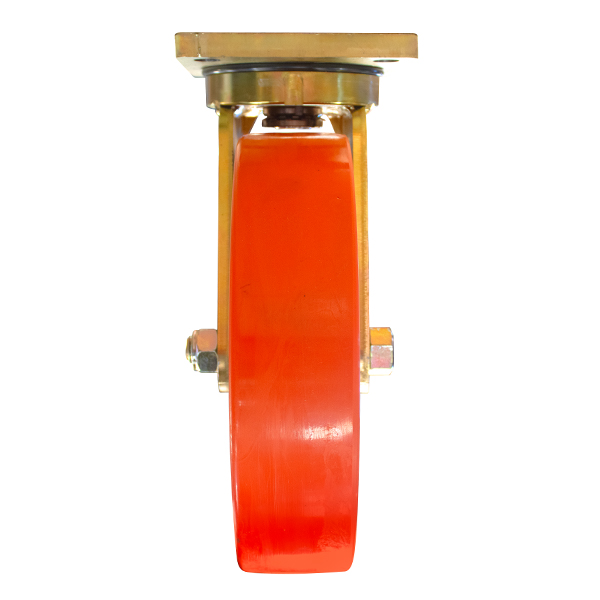

The S12904 by Richmond is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is one of our 3000 series range and can hold loads up to 3000kg. The S12904 wheel is fitted with ball bearings. The swivel frame of this castor allows for full 360° swivel rotation. The diameter of the polyurethane wheel is 300mm, the wheel width is 76mm and you can order separately (Part Number: PU1217). For the same castor with a brake, see S12904B.
300mm Poly Wheel 3000 Series Castor (S12904)
Description
This extra heavy duty range has been precisely engineered and custom built to excel under the hardest conditions. Richmond’s 3000 Series picks up applications that our 1000 Series can not. An increased towing capacity and towing speed, increases the possibility for rolling solutions for the most abstract of trolleys and platforms.
| Product Code | S12904 |
|---|---|
| Wheel Diameter (mm) | 300 |
| Frame Type | Swivel |
| Wheel Width (mm) | 75 |
| Wheel Type | Polyurethane |
| Wheel Code | PU1216 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 364 |
| Swivel Radius (mm) | 220 |
| Maximum Load Capacity (kg) | 3000 |
| Towable | Yes |
| Download CAD Drawing (STEP file) | Download |
|---|
