|Wheel Diameter (mm)||300|
|Frame Type||Swivel with Directional Lock|
|Wheel Width (mm)||100|
|Wheel Type||Polyurethane Tyred Cast Iron Centred|
|Wheel Bearing Type||Taper Roller Bearing|
|Castor Height (mm)||420|
|Swivel Radius (mm)||240|
|Maximum Load Capacity (kg)||5000|

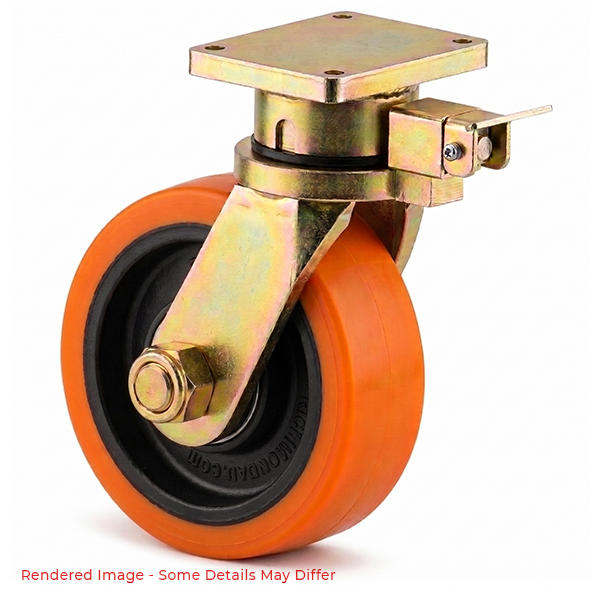

300mm Poly Ci Wheel 5000kg Capacity Castor (S1224D)
The S1224D by Richmond is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is part of our 5000 series range and can safely take loads up to 5000kg. The S1224D uses taper roller bearings for wheel rotation. The swivel frame design of this castor allows for full 360° swivel rotation. The polyurethane tyred cast iron wheel diameter is 300mm, the wheel width is 100mm and can be ordered separately (PU1203). This model can also be ordered without the direction lock (part number S1224).
This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.
Swivel with Directional Lock
