| Product Code | R1223 |
|---|---|
| Wheel Diameter (mm) | 300 |
| Frame Type | Rigid |
| Wheel Width (mm) | 100 |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU1203 |
| Wheel Bearing Type | Taper Roller Bearing |
| Castor Height (mm) | 420 |
| Swivel Radius (mm) | 240 |
| Maximum Load Capacity (kg) | 5000 |

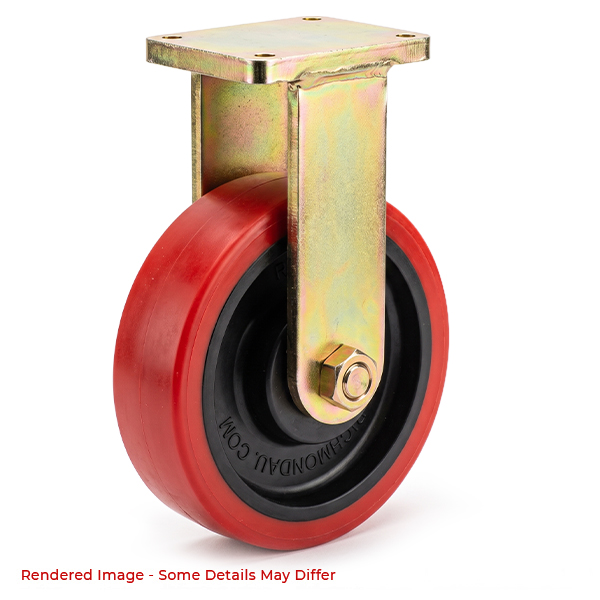

300mm Poly Ci Wheel 5000kg Capacity Castor (R1223)
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
The R1223 by Richmond Wheel and Castor Co. is a rigid frame castor and has a polyurethane tyred cast iron wheel. This rigid castor is one of our 5000 series range and can hold loads up to 5000kg. The R1223 is assembled with taper roller bearings on the castors axle. This castors rigid frame only allows linear movement unless used with swivel castors. The polyurethane tyred cast iron wheel diameter is 300mm, the wheel width is 100mm and you can order separately (Part Number: PU1203).
| Download CAD Drawing (STEP file) | Download |
|---|
