300mm Poly Ci Wheel 2500kg Capacity Castor (S1222D)

International Shipping Available

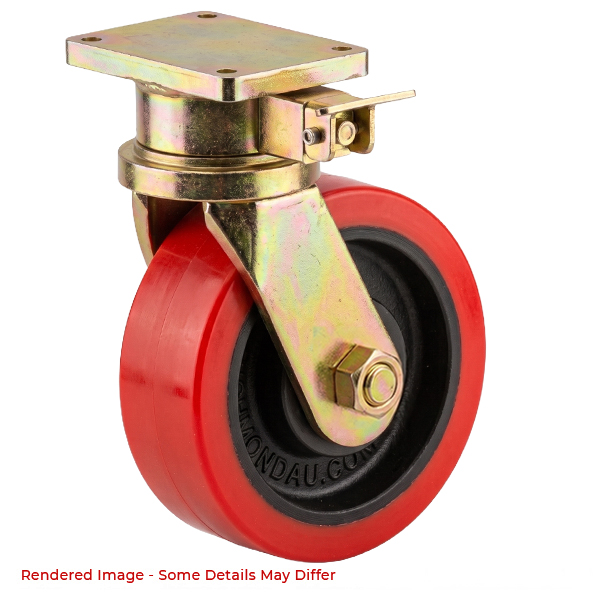

The S1222D manufactured by Richmond Rolling Solutions is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is in our 5000 series range and can safely take loads up to 2500kg. The S1222D uses ball bearings for wheel rotation. The swivel frame design of this castor allows full swivel rotation to enable steering. The overall polyurethane tyred cast iron wheel diameter is 300mm, the wheel width is 100mm and you can order separately (Part Number: PU1224). This model can also be ordered without the direction lock (part number S1222).

This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.

View Specifications View Specifications Shipping Information

Specifications

Product Code	S1222D
Wheel Diameter (mm)	300
Frame Type	Swivel with Directional Lock
Wheel Width (mm)	100
Wheel Type	Polyurethane Tyred Cast Iron Centred
Wheel Code	PU1224
Wheel Bearing Type	Ball Bearing
Castor Height (mm)	420
Swivel Radius (mm)	240
Maximum Load Capacity (kg)	2500
