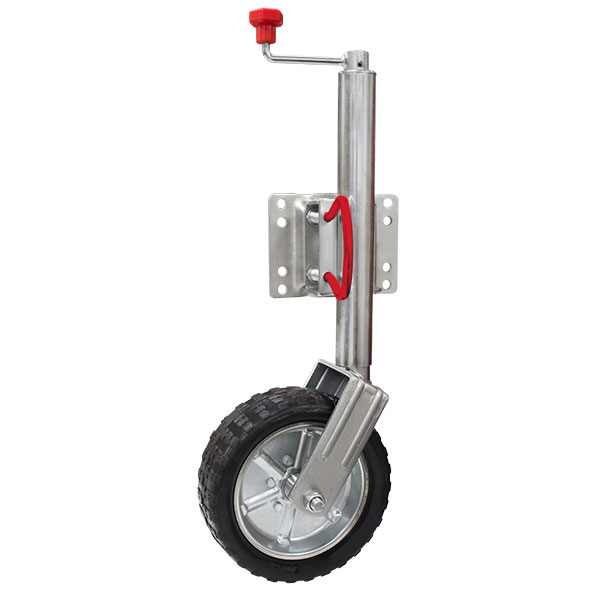

The S1073 is a swing type jockey wheel, ideal for use on caravans, campers, boat trailers and other trailers used for transporting goods for leisure or business. The S1073 features a new heavy duty plate assembly, designed to swing up and out of the way. See example of heavy duty plate assembly below.
Important Note: When moving equipment, best performance is achieved with jockey wheel being at a lowest position. Moving equipment with jockey wheel in a high position is not safe or advised. All load capacities are based on smooth concrete or asphalt surfaces.
250mm Swing Type Jockey Wheel, Height Adjustable between 650-910mm (S1073)
International Shipping Available
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S1073 is a swing type jockey wheel, ideal for use on caravans, campers, boat trailers and other trailers used for transporting goods for leisure or business. The S1073 features a new heavy duty plate assembly, designed to swing up and out of the way. See example of heavy duty plate assembly below.
Important Note: When moving equipment, best performance is achieved with jockey wheel being at a lowest position. Moving equipment with jockey wheel in a high position is not safe or advised. All load capacities are based on smooth concrete or asphalt surfaces.
Description
Richmond’s new range of jockey wheels are ideal for use on trailers, caravans, campers, boat trailers, and various other trailers. We offer two different mounting types – clamp and swing up – and three different wheel sizes. With load capacities of up to 400kgs, Richmond’s jockey wheels are a high-quality and economical solution. When it comes to wheels, we have decades of experience, and our jockey wheels are everything you’ve come to expect from Richmond. They’re strong, high-quality, and reliable. Jockey wheels can be used to lower your trailer or caravan onto a tow ball, or to move your trailer around by hand in small or tight spaces. Our swing up jockey wheels feature a brand new heavy duty plate assembly for even better performance. The swing up mechanism allows for your jockey wheel to swing up and out of the way when not in use, and is our most popular choice. Our jockey wheels can be raised and lowered to a variety of different heights to suit every application. Don’t compromise on quality – choose jockey wheels from Richmond. Have a question, or would like to buy our jockey wheels? Call our staff on 1300 474 246, email [email protected], or visit one of our showrooms in Melbourne, Sydney (we have branches in West Sydney and South Sydney), Brisbane, Perth, Adelaide or Darwin.
| Product Code | S1073 |
|---|---|
| Wheel Diameter (mm) | 250 |
| Frame Style | Swing |
| Wheel Width (mm) | 85 |
| Wheel Type | Rubber Tyred Steel Centred |
| Wheel Code | JKW010 |
| Static Load Capacity (kg) | 400 (when at lowest setting on a flat/level surface) |
| Raised Height (mm) | 910 |
| Lowered Height (mm) | 650 |
