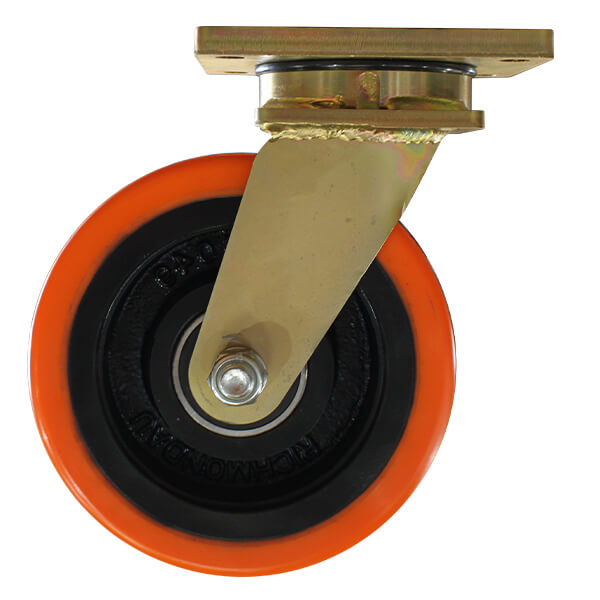

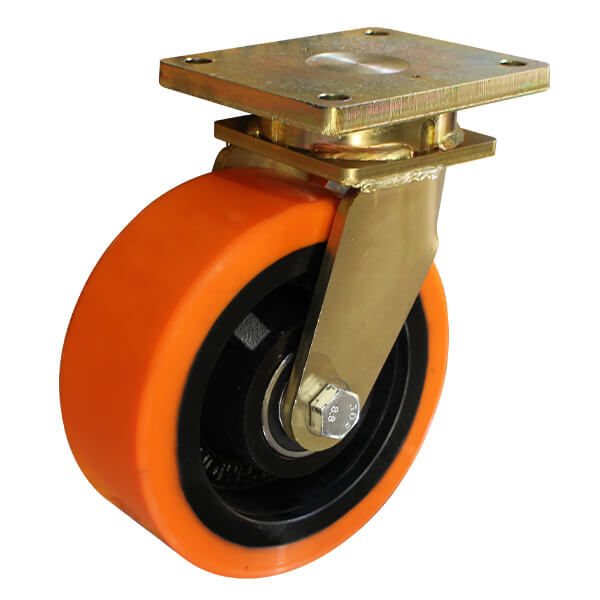

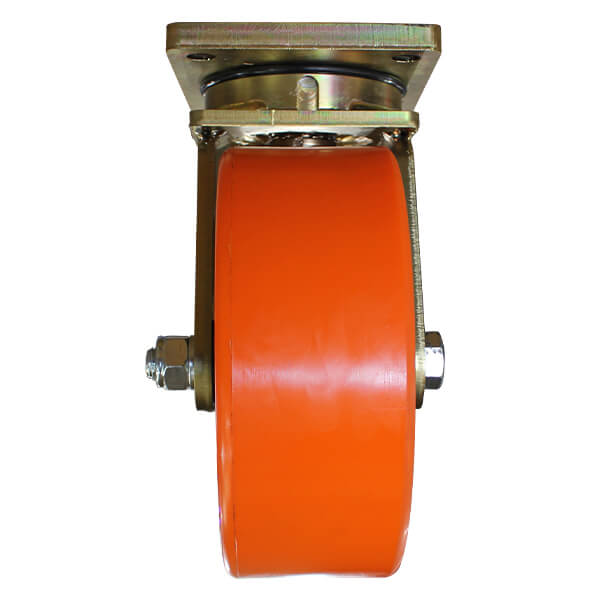

The S10912 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and uses a polyurethane wheel. This swivel castor is part of our 3000 series range and can safely take loads up to 3000kg. The S10912 wheel is fitted with ball bearings. This castors swivel frame allows the castor to swivel 360°. The overall polyurethane wheel diameter is 250mm, the wheel width is 100mm and can be ordered separately (PU1048).
This extra heavy duty range has been precisely engineered and custom built to excel under the hardest conditions. Richmond’s 3000 Series picks up applications that our 1000 Series can not. An increased towing capacity and towing speed, increases the possibility for rolling solutions for the most abstract of trolleys and platforms.
| Product Code | S10912 |
|---|---|
| Wheel Diameter (mm) | 250 |
| Frame Type | Swivel |
| Wheel Width (mm) | 100 |
| Wheel Type | Polyurethane |
| Wheel Code | PU1048 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 310 |
| Swivel Radius (mm) | 190 |
| Maximum Load Capacity (kg) | 2500 |
| Towable | Yes |
| Download CAD Drawing (STEP file) | Download |
|---|
