250mm Poly Wheel 3000 Series Castor (S10904D)

Wheel Diameter: 250mm

Castor Frame Type: Swivel with Directional Lock

Wheel Width: 75mm

Wheel Type: Polyurethane

Wheel Code: PU1029

Wheel Bearing Type: Ball Bearing

Castor Height: 310mm

Swivel Radius: 190mm

Maximum Load Capacity: 2500kg

This extra heavy duty range has been precisely engineered and custom built to excel under the hardest conditions. Richmond’s 3000 Series picks up applications that our 1000 Series can not. An increased towing capacity and towing speed, increases the possibility for rolling solutions for the most abstract of trolleys and platforms.

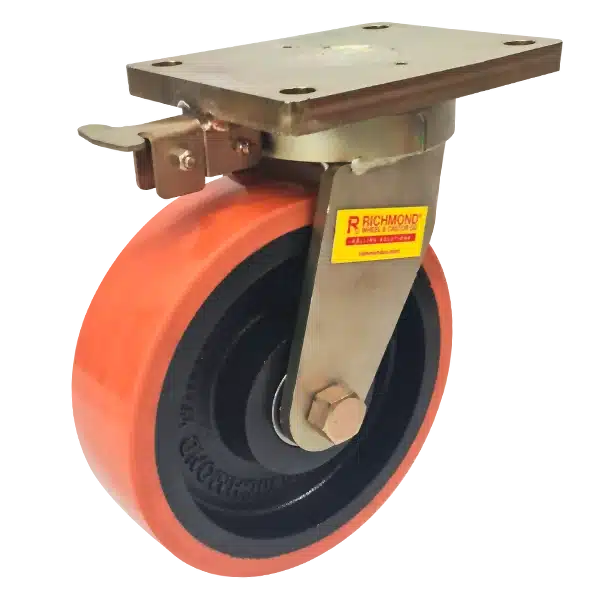

The S10904D manufactured by Richmond is a swivel frame castor and is fitted with a polyurethane wheel. This swivel castor is in our 3000 series range and can hold loads up to 2500kg. The S10904D wheel is fitted with ball bearings. The swivel frame allows for full 360° swivel rotation. The polyurethane wheel diameter is 250mm, the wheel width is 75mm and can be ordered separately (PU1029). For the same castor without a direction lock, see S10904.

This castor includes a directional lock  – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.

SKU: 095TWOS10904D Categories: ,
