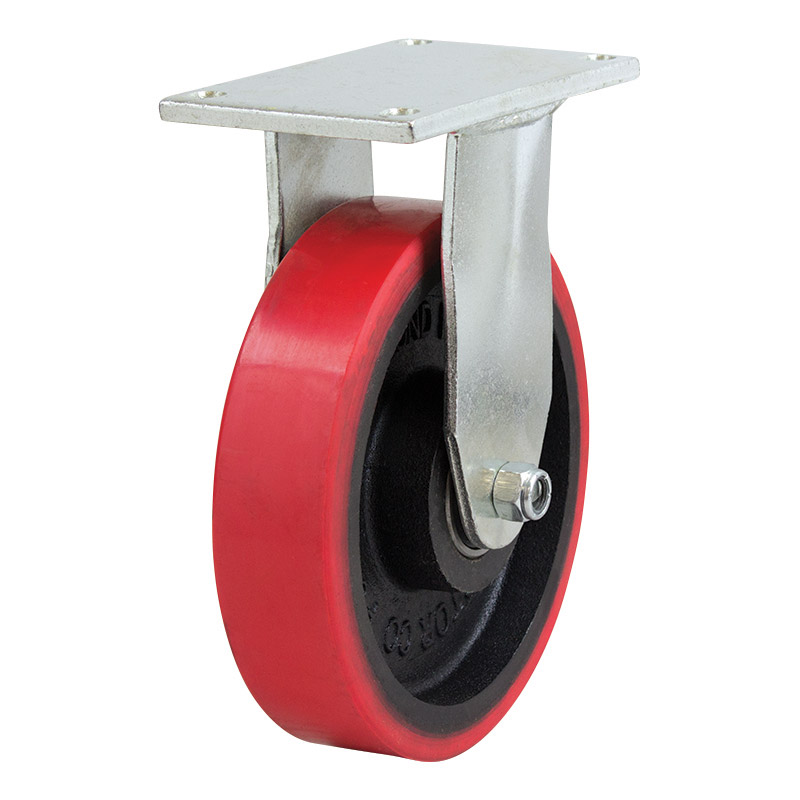

250mm Poly Ci Wheel1000Kg Capacity Castor (R1020)

Wheel Diameter: 250mm

Castor Frame Type: Rigid

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU1056

Wheel Bearing Type: Ball Bearing

Castor Height: 300mm

Maximum Load Capacity: 1000kg

1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

The R1020 by Richmond Wheel and Castor Co. is a rigid frame castor and is fitted with a polyurethane tyred cast iron wheel. This rigid castor is one of our 1000 series range and has a top load capacity of 1000kg. The R1020 wheel is fitted with ball bearings. The rigid frame of this castor allows for steering only when used with swivel castors. The diameter of the polyurethane tyred cast iron wheel is 250mm, the wheel width is 50mm and can be ordered separately (PU1056).

SKU: 078ONER1020 Categories: ,
