250mm Cushion Rubber 300kg Capacity Castor (R1026)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

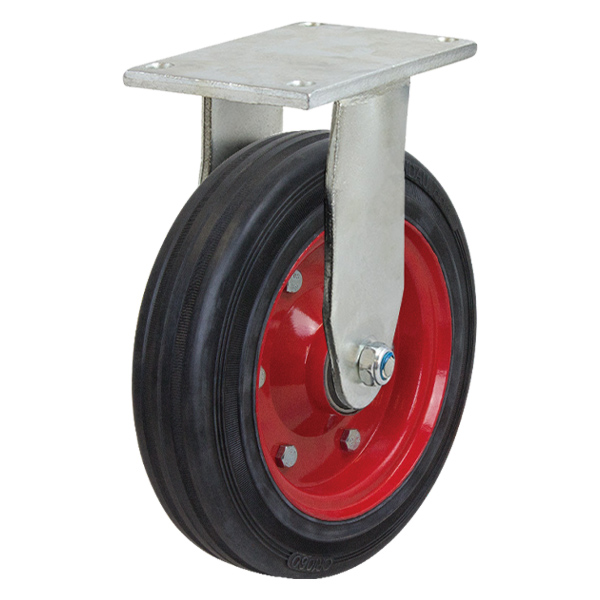

The R1026 from Richmond is a rigid frame castor and features a cushion rubber wheel. This rigid castor is in our 500 series range and has a maximum capacity of 300kg. The R1026 is assembled with ball bearings on the castors axle. This castors rigid frame allows for steering only when used with swivel castors. The outside diameter of the cushion rubber wheel is 250mm, the wheel width is 50mm and can be ordered separately (CR1060).


The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code R1026
Wheel Diameter (mm) 250
Frame Type Rigid
Wheel Width (mm) 50
Wheel Type Cushion Rubber
Wheel Code CR1060
Wheel Bearing Type Ball Bearing
Castor Height (mm) 302
Maximum Load Capacity (kg) 300
Recommended Load Capacity (kg) 220
Towable Yes
