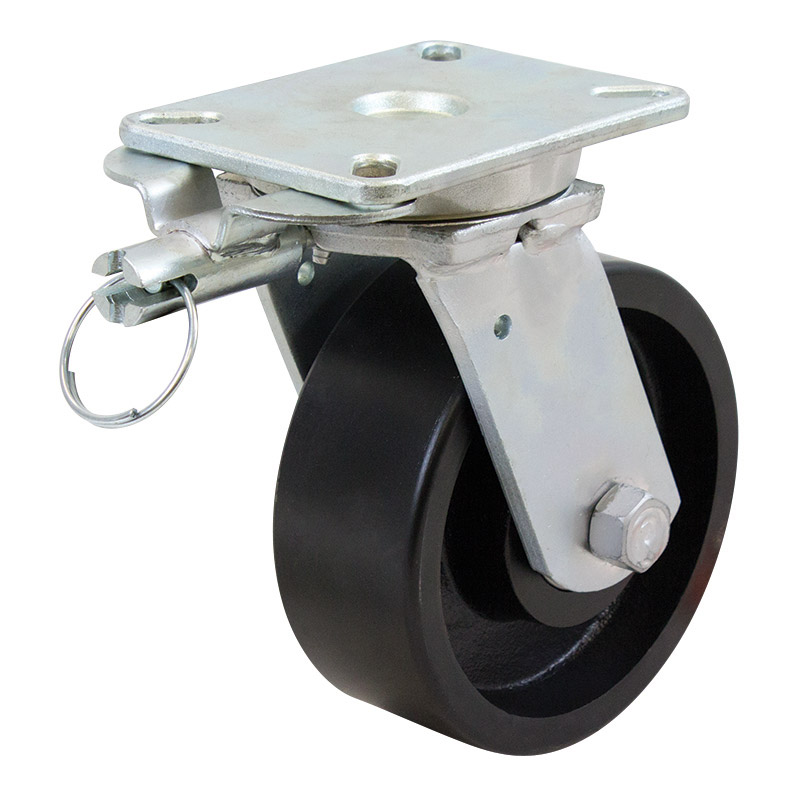

200mm SG Iron Wheel 1500Kg Capacity Castor (S8000D)

Wheel Diameter: 200mm

Castor Frame Type: Swivel with Directional Lock

Wheel Width: 75mm

Wheel Type: Spheroidal Graphite (SG) Iron

Wheel Code: SG822

Wheel Bearing Type: Ball Bearing

Castor Height: 268mm

Swivel Radius: 156mm

Maximum Load Capacity: 1500kg

Recommended Load Capacity: 1200kg

Applications including transport and logistics, heavy machinery, warehousing equipment and mobile platforms rely on the extreme shock loading, robust durable king pin, drop forged steel baseplate of Richmond’s Forged Head Series for loads up to 1500kg. Truly a great all round castor for those heavy duty applications requiring a towable option, zinc plated for corrosion resistance and the ability to withstand daily abuse that will not compromise performance.

The S8000D by Richmond Wheel and Castor Co. is a swivel frame castor and features a semi pneumatic wheel. This swivel castor is part of our forged head series range and has a top load capacity of 1500kg. The S8000D wheel is fitted with ball bearings. This castors swivel frame allows for full 360° swivel rotation. The outside diameter of the semi pneumatic wheel is 200mm, the wheel width is 75mm and can be ordered separately (SG822). This model can also be ordered without the direction lock (part number S8000).

SKU: 074FHCS8000D Categories: , ,
