The S8470D by Richmond Rolling Solutions is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is in our 500 series range and can hold loads up to 500kg. The S8470D uses ball bearings for wheel rotation. The swivel frame of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU849). For the same castor without a direction lock, see S8470. This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.
200mm Poly Ci Wheel 500Kg Capacity Castor (S8470D)
International Shipping Available
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The S8470D by Richmond Rolling Solutions is a swivel frame castor and has a polyurethane tyred cast iron wheel. This swivel castor is in our 500 series range and can hold loads up to 500kg. The S8470D uses ball bearings for wheel rotation. The swivel frame of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU849). For the same castor without a direction lock, see S8470. This castor includes a directional lock – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor. Castors with a directional lock are indicated by a ‘D’ at the end of the castor code.
Description
The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.
| Product Code | S8470D |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Swivel with Directional Lock |
| Wheel Width (mm) | 50 |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU849 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 248 |
| Swivel Radius (mm) | 155 |
| Maximum Load Capacity (kg) | 500 |
| recommended-load-capacity-kg | |
| Towable | Yes |
Shipping Information
Flat rate shipping for all metropolitan and major regional locations where a Richmond Wheel & Castor warehouse is located.
Shipping will be calculated at checkout.
For more information on our freight charges, click & collect locations, and more
view our online shipping policy
*Not all items are available for purchase online.

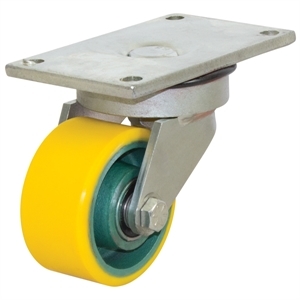

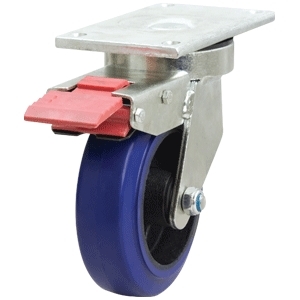

Related Products
