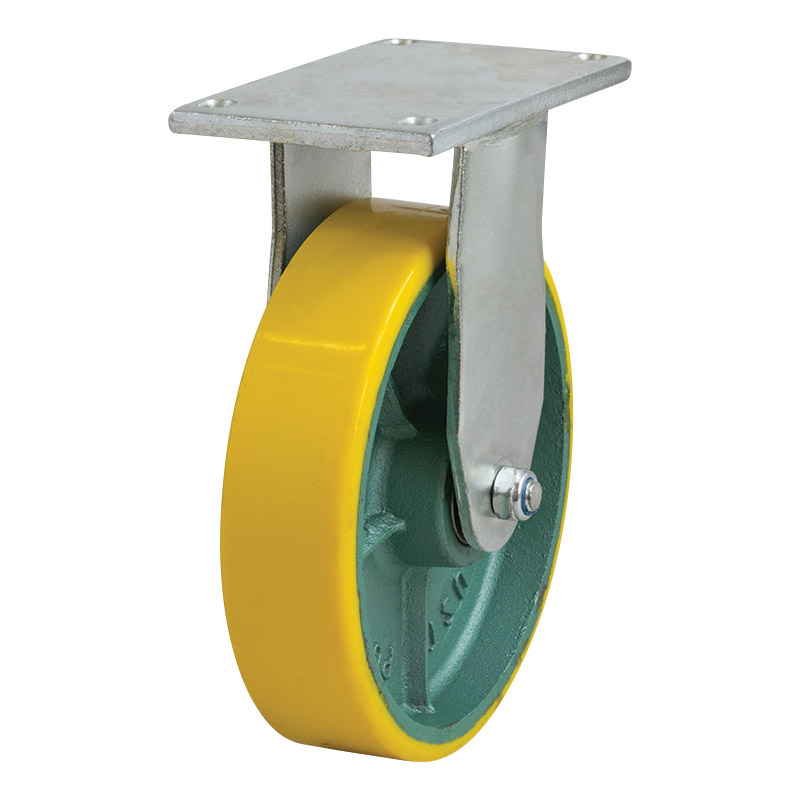

The R8471 by Richmond Rolling Solutions is a rigid frame castor and uses a polyurethane tyred cast iron wheel. This rigid castor is in our 500 series range and can hold loads up to 500kg. The R8471 uses ball bearings for wheel rotation. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The diameter of the polyurethane tyred cast iron wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU849).
200mm Poly Ci Wheel 500Kg Capacity Castor (R8471)
International Shipping Available
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!
Calculate shipping price
Please fill in the fields below with the shipping destination details in order to calculate the shipping cost.
The R8471 by Richmond Rolling Solutions is a rigid frame castor and uses a polyurethane tyred cast iron wheel. This rigid castor is in our 500 series range and can hold loads up to 500kg. The R8471 uses ball bearings for wheel rotation. The rigid frame of this castor is ideal for linear movement however steering can be achieved by using with swivel castors. The diameter of the polyurethane tyred cast iron wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU849).
Description
The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.
| Product Code | R8471 |
|---|---|
| Wheel Diameter (mm) | 200 |
| Frame Type | Rigid |
| Wheel Width (mm) | 50 |
| Wheel Type | Polyurethane Tyred Cast Iron Centred |
| Wheel Code | PU849 |
| Wheel Bearing Type | Ball Bearing |
| Castor Height (mm) | 248 |
| Maximum Load Capacity (kg) | 500 |
| Recommended Load Capacity (kg) | 380 |
| Towable | Yes |
| Download CAD Drawing (STEP file) | Download |
|---|
