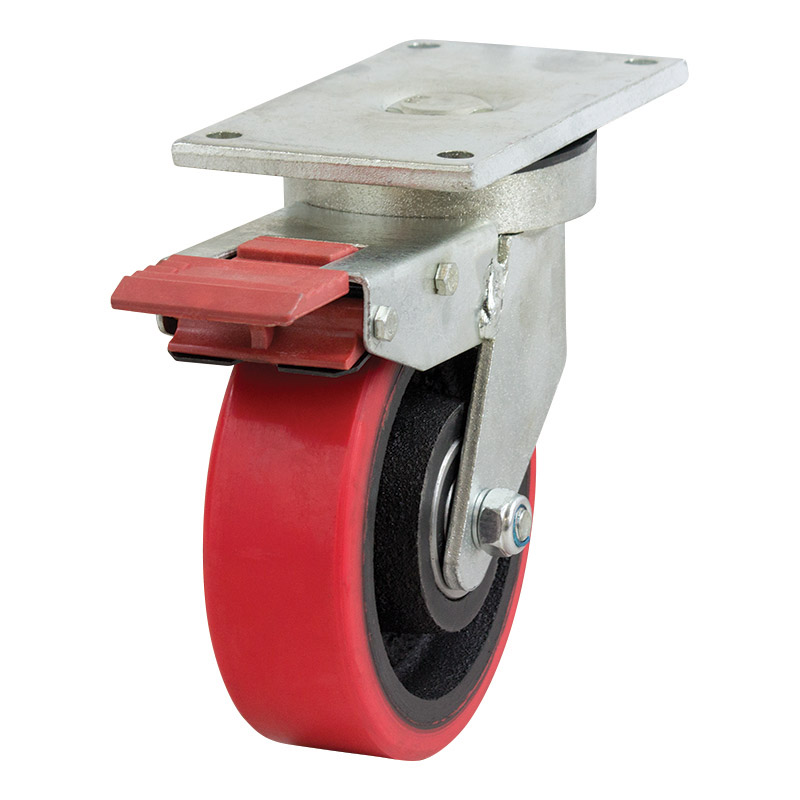

200mm Poly Ci Wheel 1000Kg Capacity Castor (S8068SLB)

Wheel Diameter: 200mm

Castor Frame Type: Swivel with Brake

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU876

Wheel Bearing Type: Ball Bearing

Castor Height: 248mm

Swivel Radius: 174mm

Maximum Load Capacity: 1000kg

Recommended Load Capacity: 750kg

1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

The S8068B from Richmond is a swivel frame castor and is fitted with a polyurethane tyred cast iron wheel. This swivel castor is in our 1000 series range and can hold loads up to 1000kg. The S8068B wheel is fitted with ball bearings. The swivel frame design of this castor allows the castor to swivel 360°. The polyurethane tyred cast iron wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU876). To order this castor without a brake, search for S8068.

SKU: 078ONES8068SLB Categories: ,
