200mm Cast Iron Wheel 1000Kg Capacity Castor (S8088)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

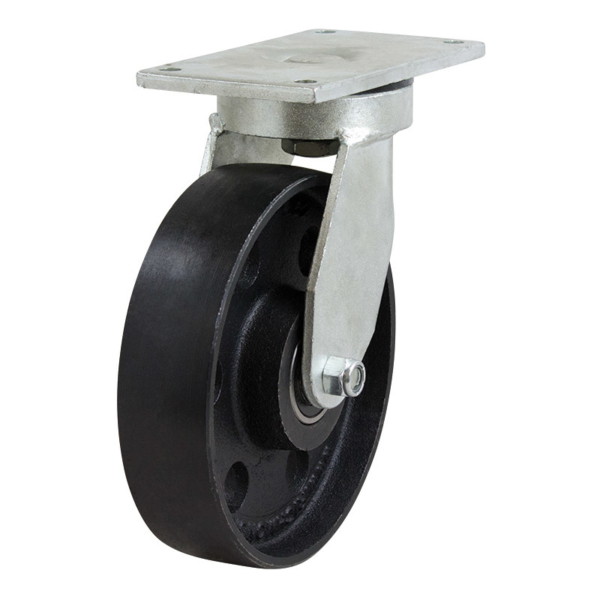

The S8088 by Richmond is a swivel frame castor and is fitted with a cast iron wheel. This swivel castor is one of our 1000 series range and has a top load capacity of 1000kg. The S8088 is assembled with ball bearings on the castors axle. This castors swivel frame allows full swivel rotation to enable steering. The outside diameter of the cast iron wheel is 200mm, the wheel width is 50mm and can be ordered separately (Ci852).

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code S8088
Wheel Diameter (mm) 200
Frame Type Swivel
Wheel Width (mm) 50
Wheel Type Cast Iron
Wheel Code Ci852
Wheel Bearing Type Ball Bearing
Castor Height (mm) 248
Swivel Radius (mm) 155
Maximum Load Capacity (kg) 1000
Towable No
Download CAD Drawing (STEP File) Download
