200mm Cast Iron 500kg Capacity Castor (S8430SLB)
Wheel Diameter: 200mm
Castor Frame Type: Swivel with Swivel Lock and Brake
Wheel Width: 50mm
Wheel Type: Cast Iron
Wheel Code: Ci852
Wheel Bearing Type: Ball Bearing
Castor Height: 248mm
Swivel Radius: 155mm
Maximum Load Capacity: 500kg
Recommended Load Capacity: 300kg
The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

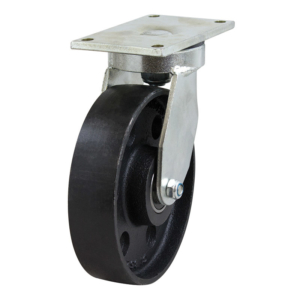

The S8430SLB manufactured by Richmond is a swivel frame castor and is fitted with a cast iron wheel. This swivel castor is part of our 500 series range and has a maximum capacity of 500kg. The S8430SLB is assembled with ball bearings on the castors axle. The swivel frame of this castor allows full swivel rotation to enable steering. The cast iron wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: Ci852).
