200mm Cast Iron 500kg Capacity Castor (R8451)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

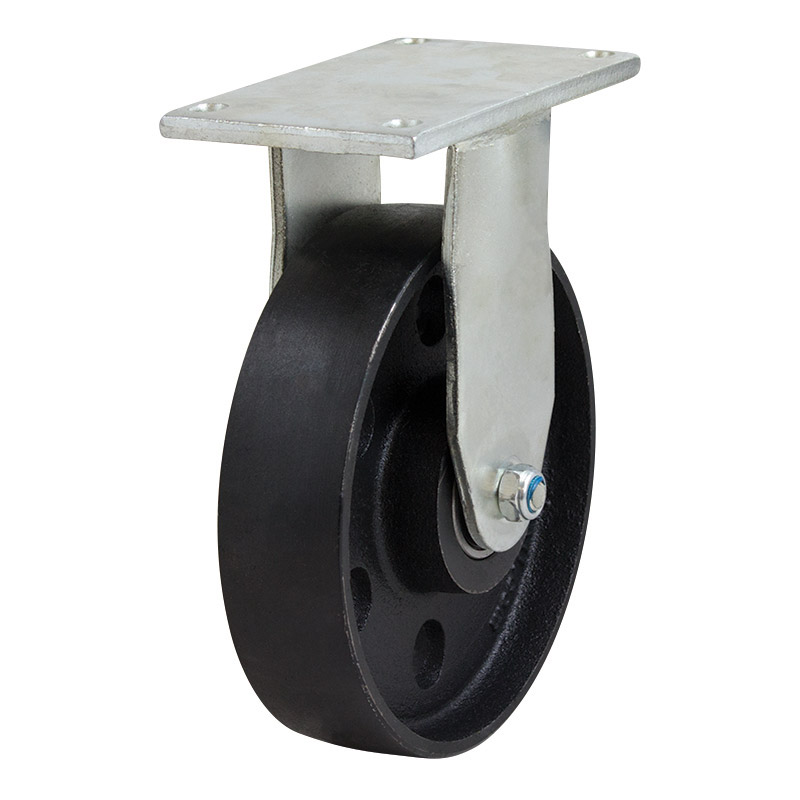

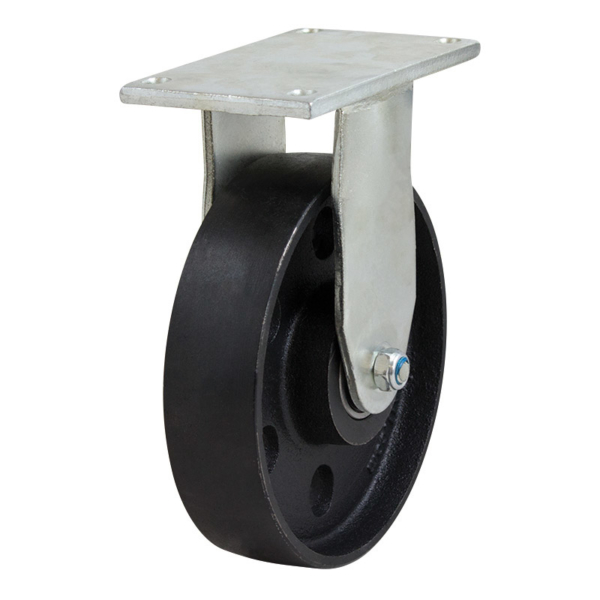

The R8451 manufactured by Richmond is a rigid frame castor and uses a cast iron wheel. This rigid castor is in our 500 series range and has a top load capacity of 500kg. The R8451 wheel is fitted with plain bearings. The rigid frame of this castor only allows linear movement unless used with swivel castors. The cast iron wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: Ci842).


The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

Product Code R8451
Wheel Diameter (mm) 200
Frame Type Rigid
Wheel Width (mm) 50
Wheel Type Cast Iron
Wheel Code Ci842
Wheel Bearing Type Plain Bore
Castor Height (mm) 248
Maximum Load Capacity (kg) 500
Recommended Load Capacity (kg) 450
Towable No
Download CAD Drawing (STEP file) Download
