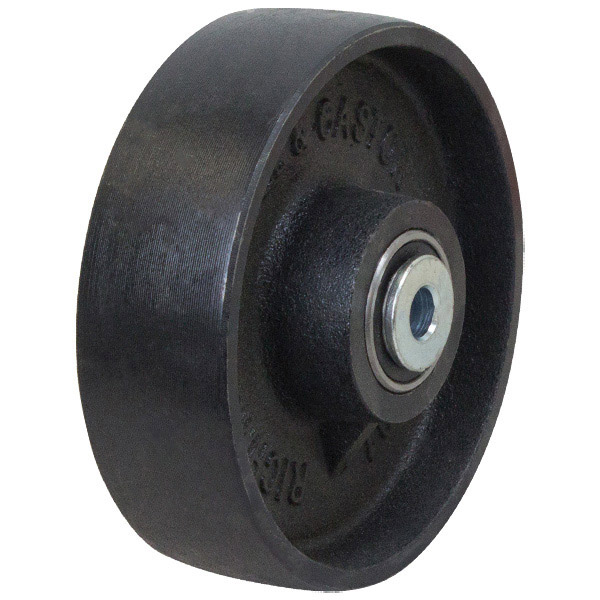

150mm Cast Iron Wheel | 20mm Axle Diameter (Ci601-M20)

Product Name : 150mm Wheel

DIAMETER(mm): 150mm

TYRE WIDTH(mm): 45

BOSS WIDTH(mm): 60

AXLE DIAMETER: 20mm

BEARING TYPE: Ball Bearing

LOAD CAPACITY(kg): 1000/500

WHEEL CODE: CI601-M20

Richmond Cast Iron wheels are consistently used by industry because of their extremely low resistance to rolling and their hard wearing characteristics. Cast iron can be used on surfaces where tyred wheels could not such as over broken glass however cast iron is known to damage concrete floors over time.The Ci601-M20 from Richmond Wheel and Castor Co. is a 150mm diameter cast iron wheel that can hold loads up to 1000kg and has a tyre width of 45mm.The following Richmond castors use this wheel (not necessarily with the same axle diameter) R6319, S6318, R6241, S6240, S6240D, R632SG, S631D, S631SG.This wheel is designed to suit 20mm axles and this wheel is available for the following alternative axle size: 1/2 inch (12.7mm), 5/8 inch (15.87mm), 3/4 inch (19.05mm), 25mm.

SKU: 035CI601-M20 Categories: , ,
