150mm Poly Ci Wheel 900Kg Capacity Castor (S6338D)

Add to Quote
For bulk enquiries contact your nearest Richmond store or add to quote to get the best freight rate!

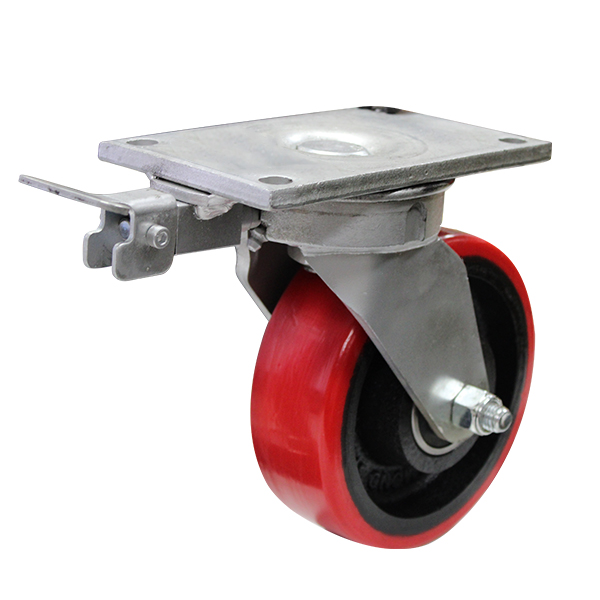

The S6338D by Richmond Wheel and Castor Co. is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is part of our 1000 series range and can hold loads up to 900kg. The S6338D is assembled with ball bearings on the castors axle. The swivel frame design of this castor allows for full 360° swivel rotation. The diameter of the polyurethane tyred cast iron wheel is 150mm, the wheel width is 50mm and can be ordered separately (PU659). This model can also be ordered without the direction lock (part number S6338).

This castor includes a directional lock  – This feature locks the swivel direction of the castor but still allows the wheel to turn. When the directional lock is released, full swivel function is returned to the castor.

Description

A 1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

Product Code S6338D
Wheel Diameter (mm) 150
Frame Type Swivel with Directional Lock
Wheel Width (mm) 50
Wheel Type Polyurethane Tyred Cast Iron Centred
Wheel Code PU659
Wheel Bearing Type Ball Bearing
Castor Height (mm) 194
Swivel Radius (mm) 130
Maximum Load Capacity (kg) 900
Towable Yes
Swivel with Directional Lock

Swivel with Directional Lock

Towable

Towable
