150mm Rebound Rubber Bolt Hole 300 Series Castor (S6228)

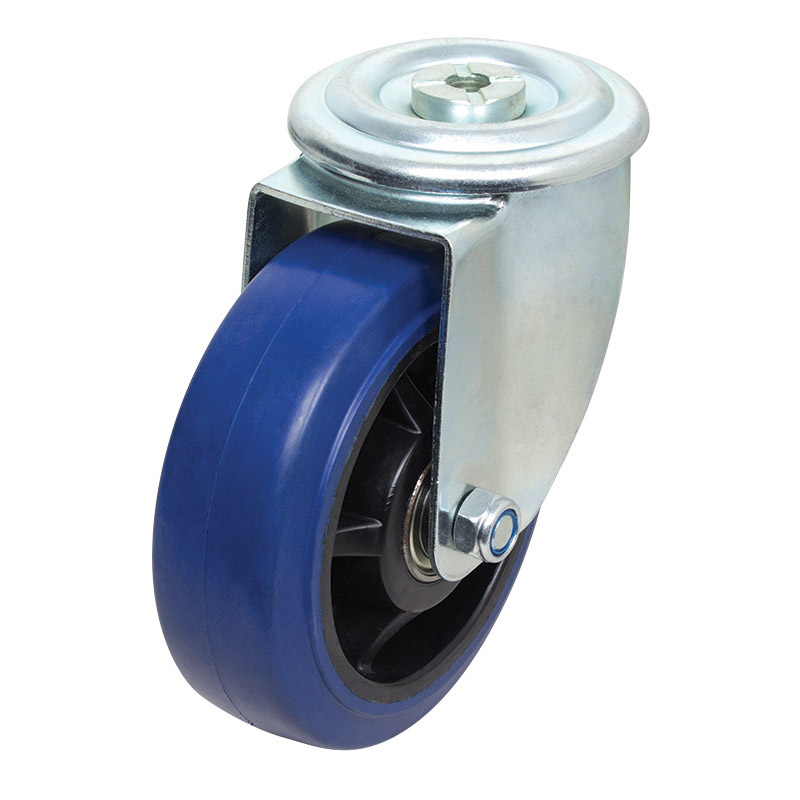

The S6228 from Richmond is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is one of our 300 series bolt hole range and has a maximum capacity of 225kg. The S6228 is assembled with ball bearings on the castors axle and is bolt mount. The swivel frame design of this castor allows full swivel rotation to enable steering. The overall rebound rubber wheel diameter is 150mm, the wheel width is 45mm and you can order separately (Part Number: RR6677). This model can also be ordered with a brake (part number S6228B).

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code S6228
Wheel Diameter (mm) 150
Frame Type Swivel
Wheel Width (mm) 45
Wheel Type Rebound Rubber
Wheel Code RR6677
Wheel Bearing Type Plain Bore
Castor Height (mm) 181
Swivel Radius (mm) 125
Bolt Hole Size (mm) 12
Maximum Load Capacity (kg) 225
Recommended Load Capacity (kg) 200
Download CAD Drawing (STEP file) Download
12mm Bolt Hole

12mm Bolt Hole

Swivel

Swivel
