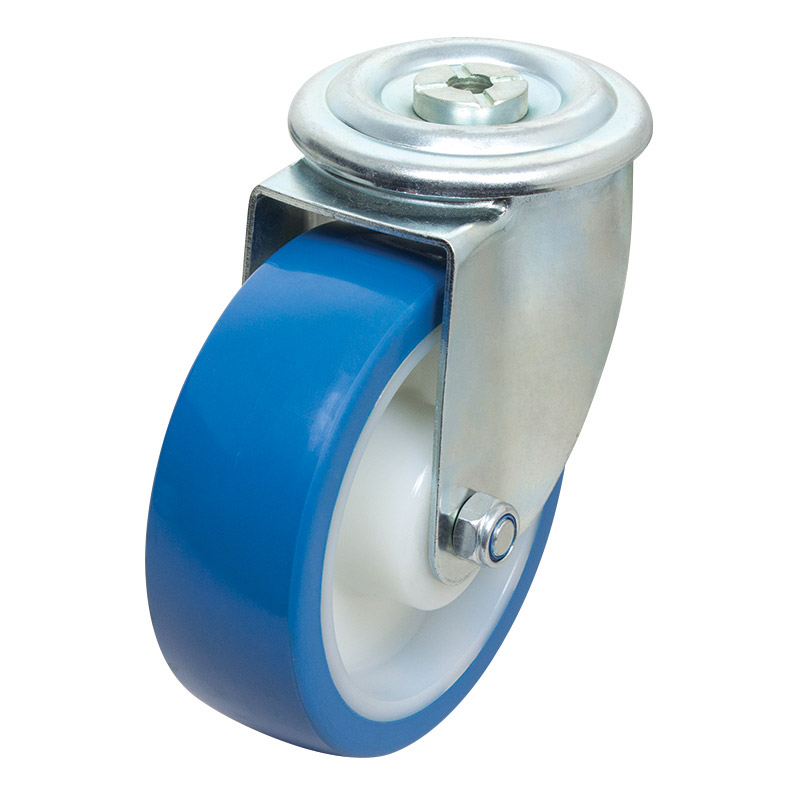

150mm Rebound Polyurethane Bolt Hole 300 Series Castor (S6216)

The S6216 manufactured by Richmond Rolling Solutions is a swivel frame castor and uses a rebound polyurethane wheel. This swivel castor is in our 300 series bolt hole range and has a top load capacity of 300kg. The S6216 uses stainless steel roller bearings for wheel rotation and is mounted with a bolt. This castors swivel frame allows for full 360° swivel rotation. The diameter of the rebound polyurethane wheel is 150mm, the wheel width is 40mm and can be ordered separately (RP6072). To order this castor with a brake, search for S6216B.

View Specifications View Specifications Shipping Information

Description

Richmond’s industrial bolt hole castors are designed with strengthened forks and a larger rolling diameter suitable for loads up to 300kg. The 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles provides endless mobility for industrial environments and trolleys in demanding applications.

Product Code	S6216
Wheel Diameter (mm)	150
Frame Type	Swivel
Wheel Width (mm)	50
Wheel Type	Rebound Polyurethane
Wheel Code	RP6072
Wheel Bearing Type	Stainless Roller Bearing
Castor Height (mm)	181
Swivel Radius (mm)	125
Bolt Hole Size (mm)	12
Maximum Load Capacity (kg)	300
Recommended Load Capacity (kg)	250
